Delta ASD-M-0721 Series - Specification of Connector of Encoder Cable

ASDA-M Chapter 3 Wiring
Revision December, 2014 3-9
3.1.5 Specification of Connector of Encoder Cable

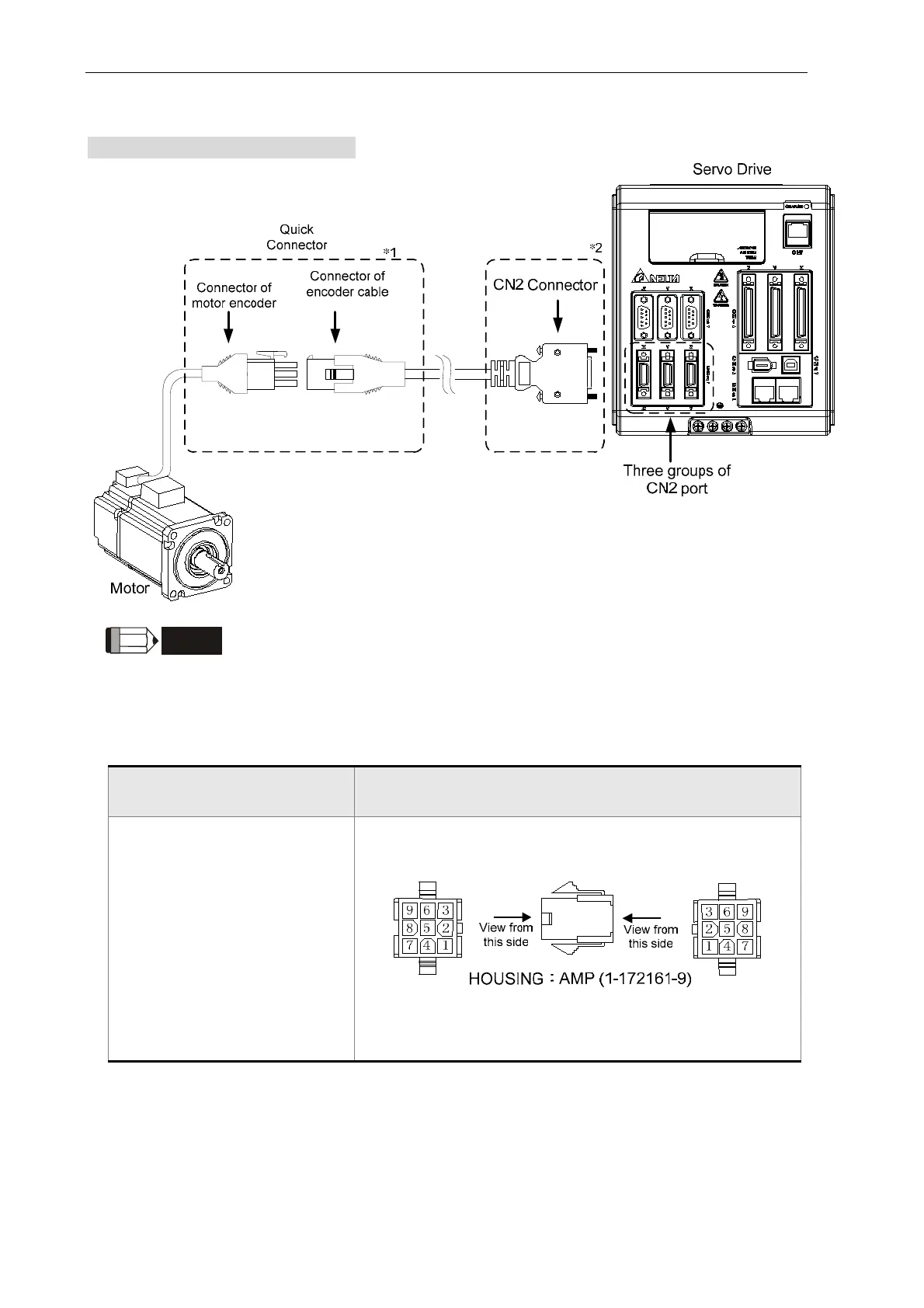

Encoder connection diagram 1:
NOTE
This diagram shows the connection between the servo drive and the motor encoder. It
is not drew by the practical scale and specification will be different according to the
selected servo drive and motor model.
1) Please refer to the Section of Specification and Definition of Encoder Connector.
2) Please refer to Section 3.4 CN2 Connector.
Motor Model Connector of Encoder Cable
ECMA-C1040FS (50W)
ECMA-C△0401S (100W)
ECMA-C△0602S (200W)
ECMA-C△0604S (400W)
ECMA-C△0604H (400W)
ECMA-C△08047 (400W)
ECMA-C△0807S (750W)
ECMA-C△0807H (750W)
ECMA-C△0907S (750W)
ECMA-C△0910S (1000W)
