Delta ASD-M-0721 Series User Manual

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-45

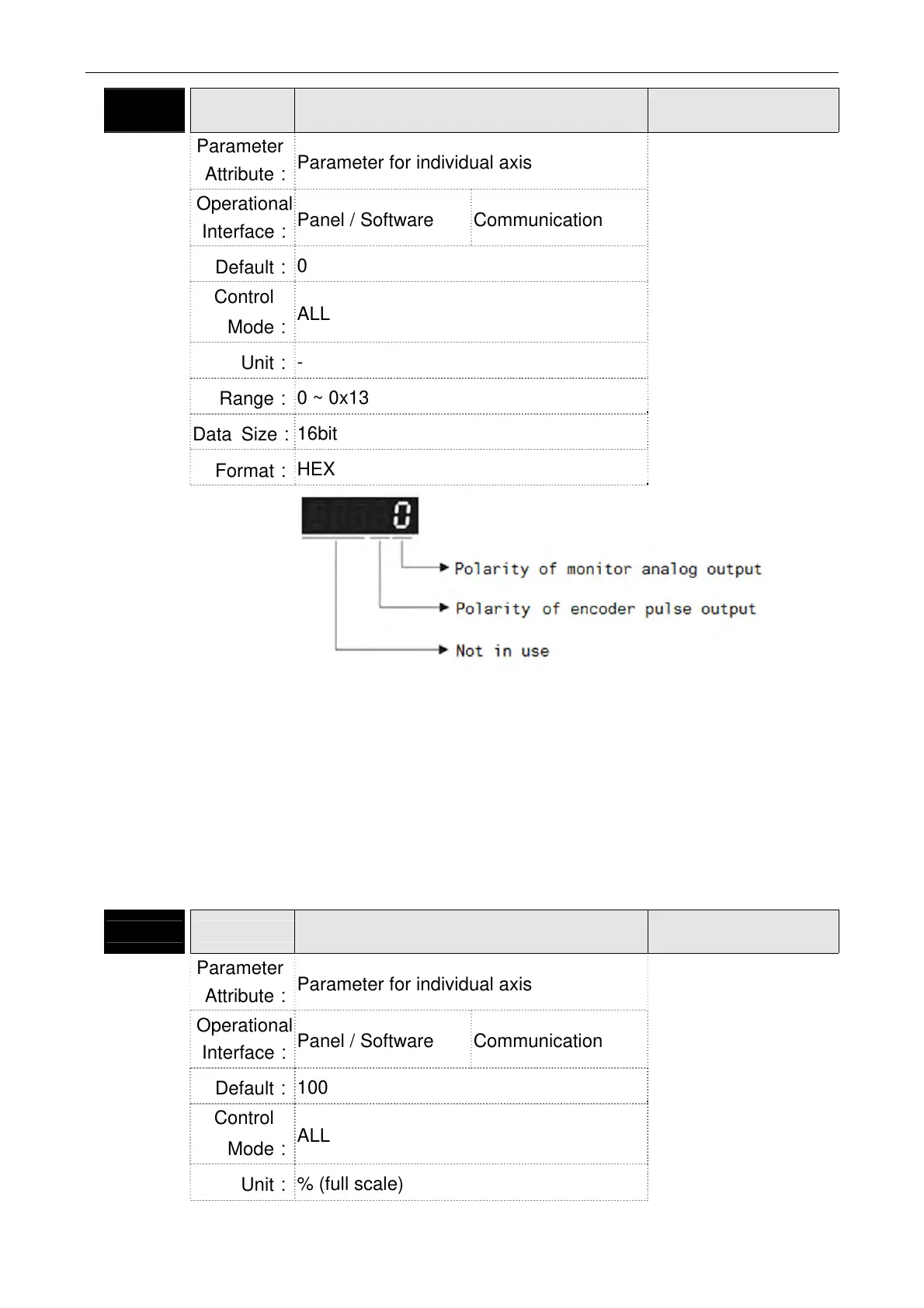

P1-03 AOUT
Polarity Setting of Encoder Pulse
Output
Address: 0106H
0107H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.6.3
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x13
Data Size：
16bit
Format：
HEX
Settings：
 Polarity of monitor analog output
0: MON1(+), MON2(+)
1: MON1(+), MON2(-)
2: MON1(-), MON2(+)
3: MON1(-), MON2(-)
 Polarity of encoder pulse output
0: Forward output
1: Reverse output
P1-04 MON1
MON1 Analog Monitor Output
Proportion
Address: 0108H
0109H
Parameter
Attribute：
Parameter for individual axis
Related Section
Section 6.6.3
Operational
Interface：
Panel / Software Communication
Default：
100
Control
Mode：
ALL
Unit：
% (full scale)
