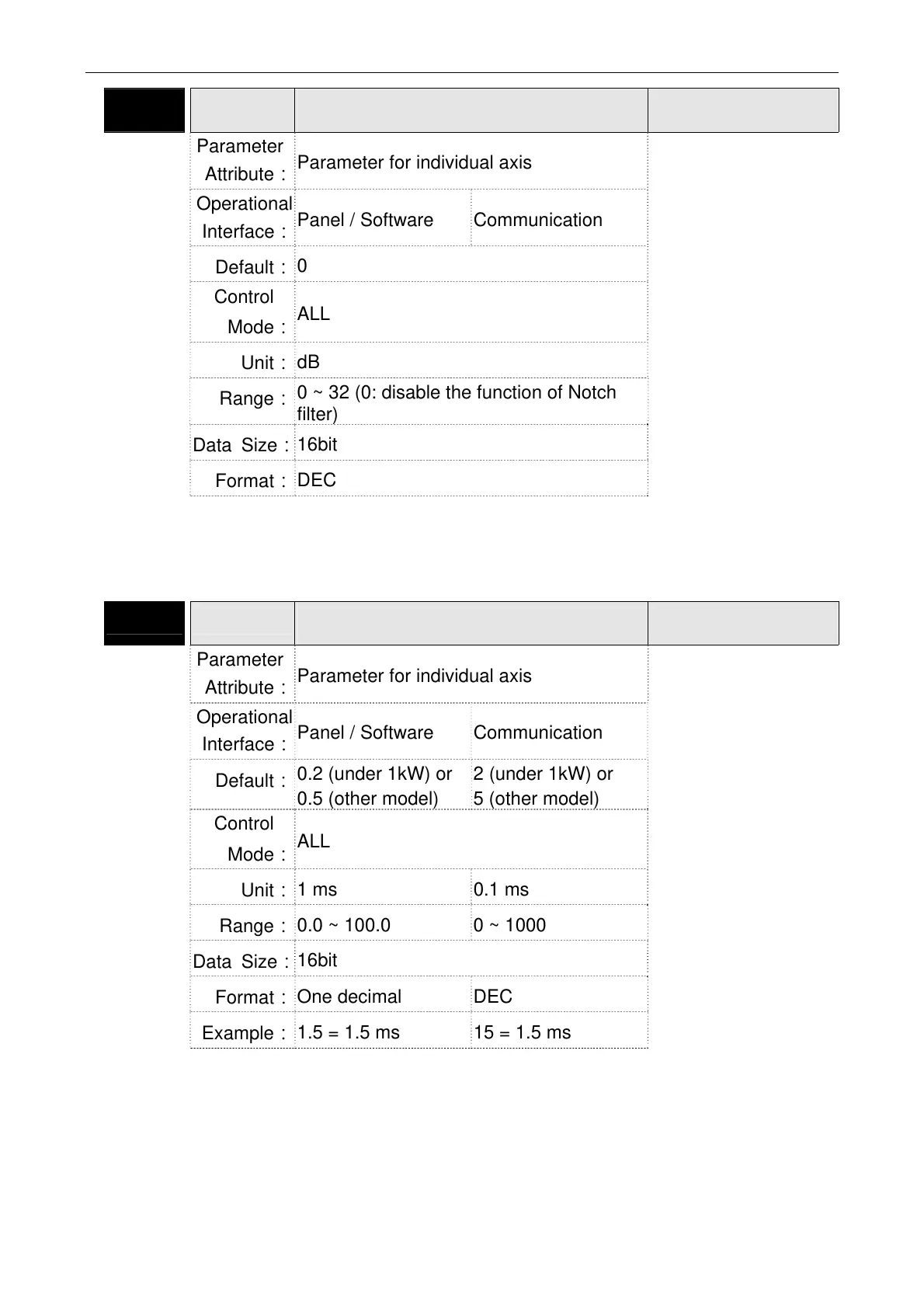

P2-24 DPH1
Resonance Suppression (Notch filter)
Attenuation Rate (1)
Address: 0230H
0231H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.3.7
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
ALL
Unit：
dB
Range：
0 ~ 32 (0: disable the function of Notch
filter)
Data Size：
16bit
Format：
DEC
Settings：
The first resonance suppression (notch filter) attenuation rate.
When this parameter is set to 0, the function of Notch filter is
disabled.
P2-25 NLP
Low-pass Filter of Resonance
Suppression
Address: 0232H
0233H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.3.7
Operational
Interface：
Panel / Software Communication
Default：
0.2 (under 1kW) or
0.5 (other model)
2 (under 1kW) or
5 (other model)
Control
Mode：
ALL
Unit：
1 ms 0.1 ms
Range：
0.0 ~ 100.0 0 ~ 1000
Data Size：
16bit
Format：
One decimal DEC
Example：
1.5 = 1.5 ms 15 = 1.5 ms
Settings：
Set the low-pass filter of resonance suppression. When the value
is set to 0, the function of low-pass filter is disabled.
