Chapter 8 Parameters ASDA-M
8-186 Revision December, 2014

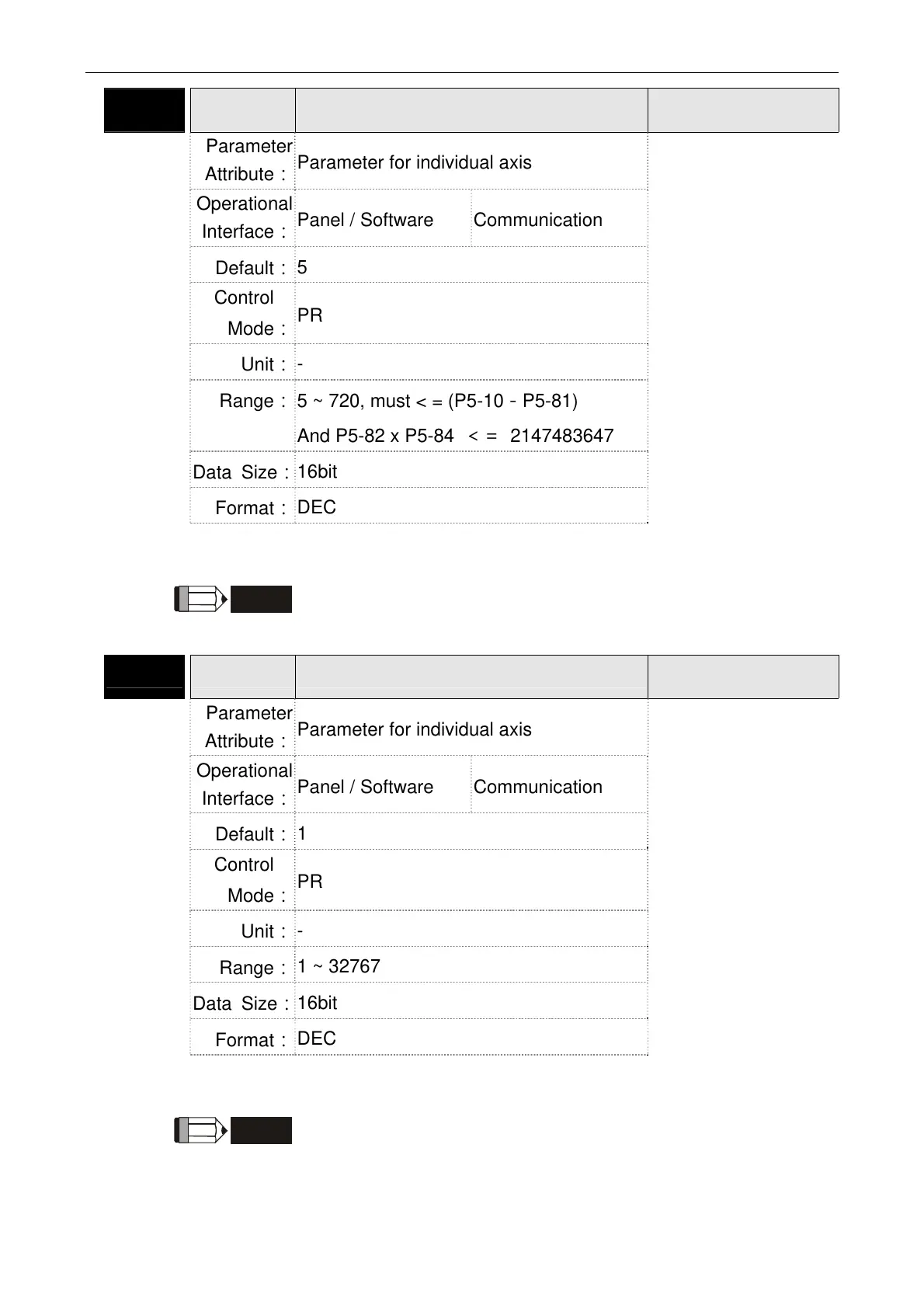

P5-82 ECMN E-CAM: Area Number N (at least >=5)
Address: 05A4H
05A5H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface：
Panel / Software Communication
Default：
5
Control
Mode：
PR
Unit：
-
Range： 5 ~ 720, must < = (P5-10－P5-81)
And P5-82 x P5-84 ＜＝ 2147483647
Data Size：
16bit
Format：
DEC
Settings：
It means the E-Cam curve is divided into N zone, and the table
should include N+1 data.
NOTE
This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
P5-83 ECMM E-CAM: Master Gear Ratio Setting M
Address: 05A6H
05A7H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface：
Panel / Software Communication
Default：
1
Control
Mode：
PR
Unit：
-
Range：
1 ~ 32767
Data Size：
16bit
Format：
DEC
Settings：
When receiving pulse number P of the Master, E-Cam will rotate
M cirle, which means the M cycle of the cam table.
NOTE
This parameter can be wrote when E-Cam stops (Please refer
toP5-88, X=0).
