Chapter 11 Specifications ASDA-M
11-20 Revision December, 2014

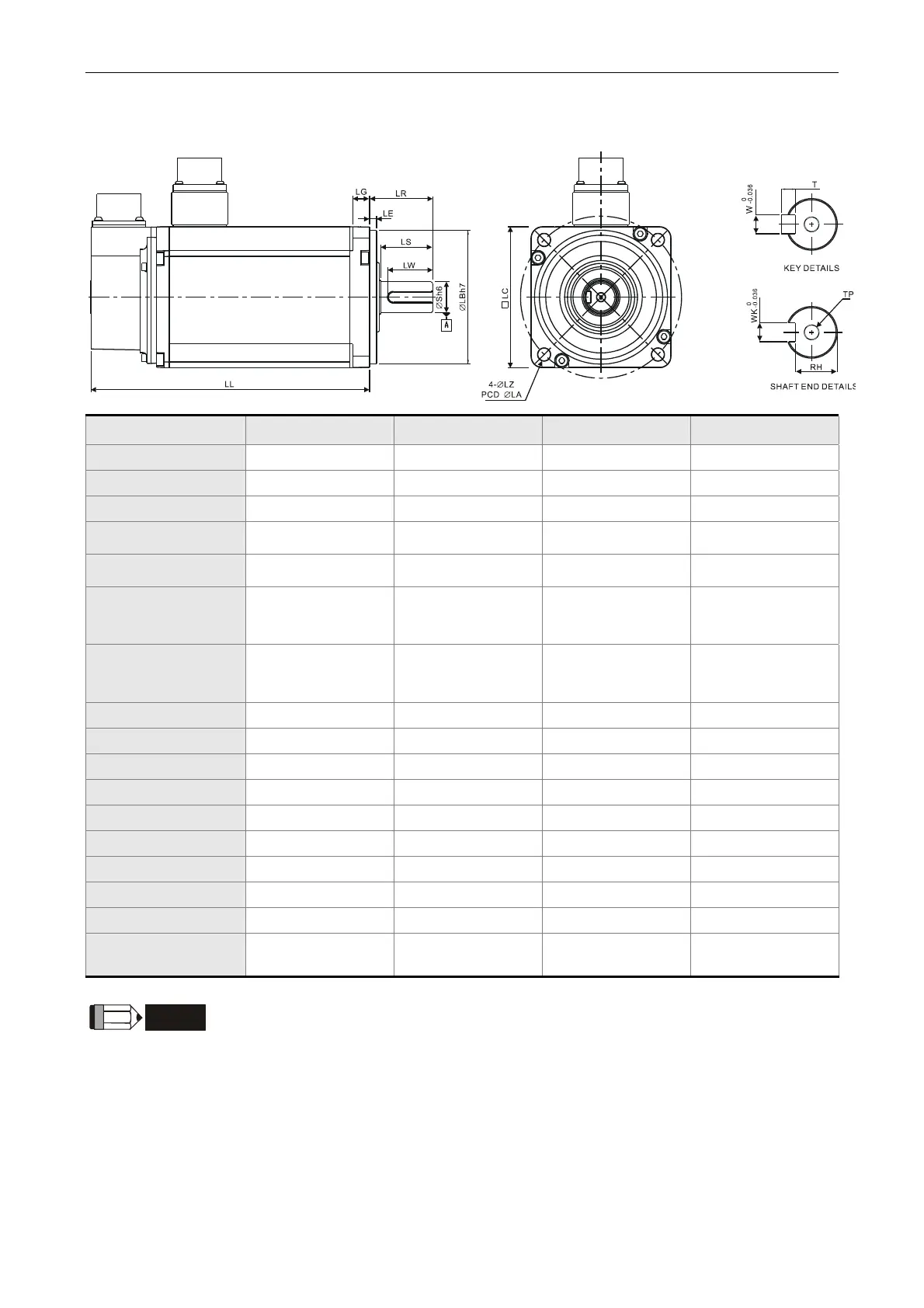

Motor Frame Size: 100 ~ 130 (Units: mm)
Model
F△1308□ S G△1303□ S G△1306□ S G△1309□ S
LC 130 130 130 130
LZ 9 9 9 9
LA 145 145 145 145
S
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
)
(
.
22
0
0130
LB
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
110
0
0350
)
(
.
110
0
0350
LL
（without brake）
152.5 147.5 147.5 163.5
LL
（with brake）
181 183.5 183.5 198
LS 47 47 47 47
LR 55 55 55 55
LE 6 6 6 6
LG 11.5 11.5 11.5 11.5
LW 36 36 36 36
RH 18 18 18 18
WK 8 8 8 8
W 8 8 8 8
T 7 7 7 7
TP
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions and weights might be revised without prior notice.
3) Box, (□) represents the shaft end/ brake or the number of oil seal.
4) Triangle, (ᇞ) represents the type of encoder. Please refer to Chapter 1 for
detail
