ASDA-M Chapter 3 Wiring
Revision December, 2014 3-37

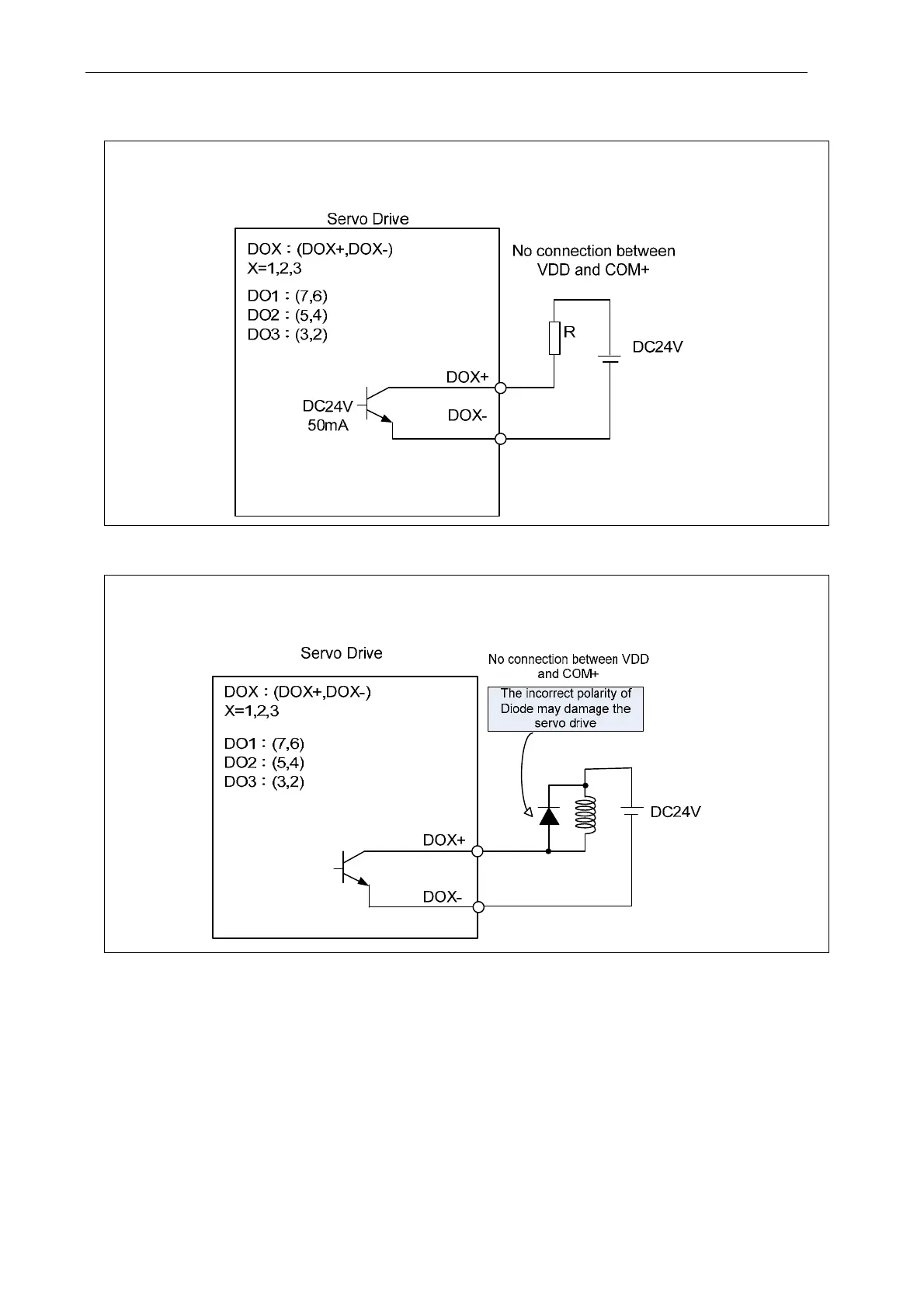

C7: Wiring of DO signal. The servo drive applies to the external power and the resistor
is general load.
C8: Wiring of DO signal. The servo drive applies to the external power and the resistor
is inductive load.
