ASDA-M Chapter 3 Wiring
Revision December, 2014 3-39

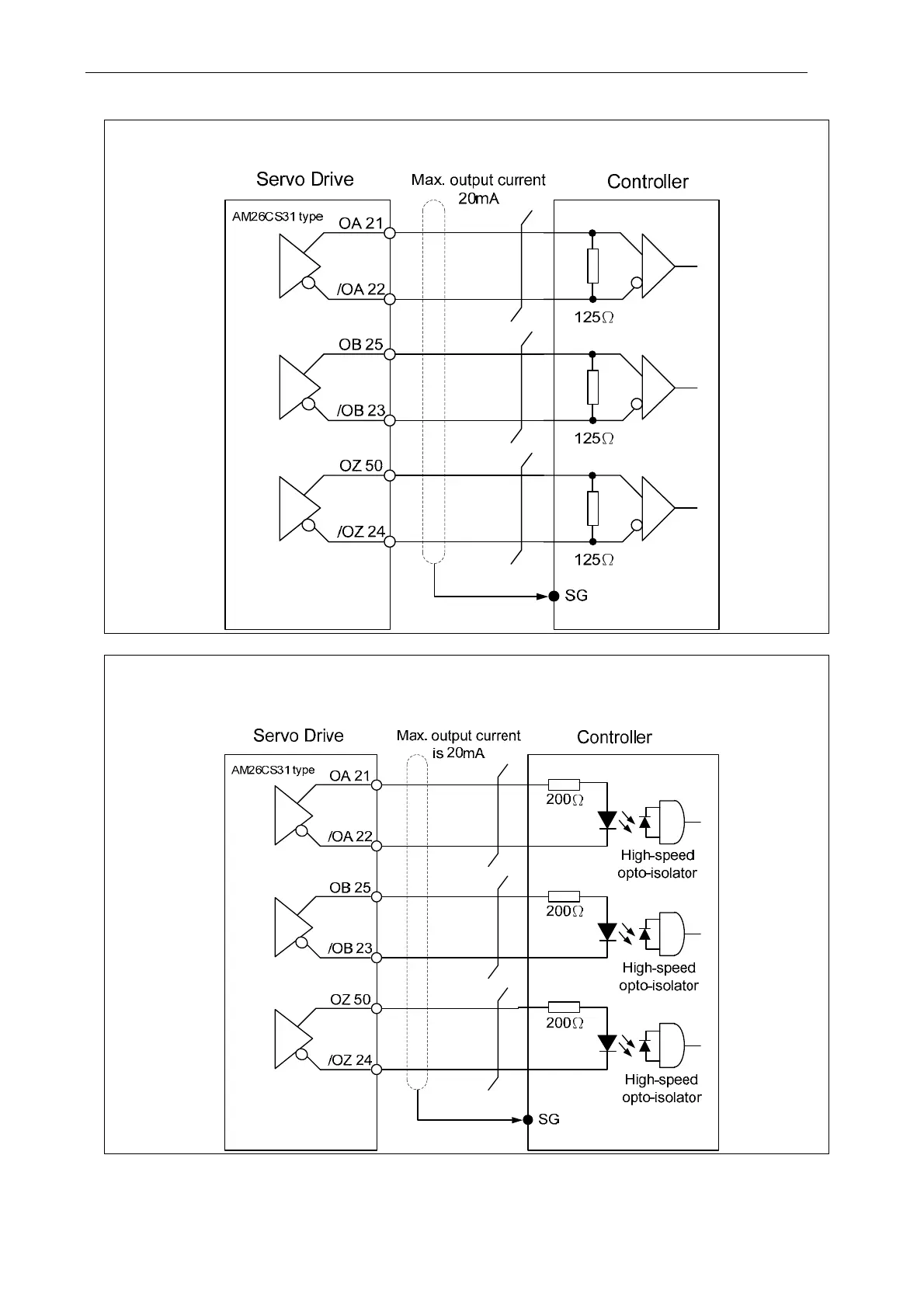

C13：Encoder signal output (Line driver)
C14：Encoder signal output (Opto-isolator)
