ASDA-M Chapter 3 Wiring
Revision December, 2014 3-49
NOTE
1) The termination resistor is suggested to use 120 Ω (Ohm) 0.25W or
above.

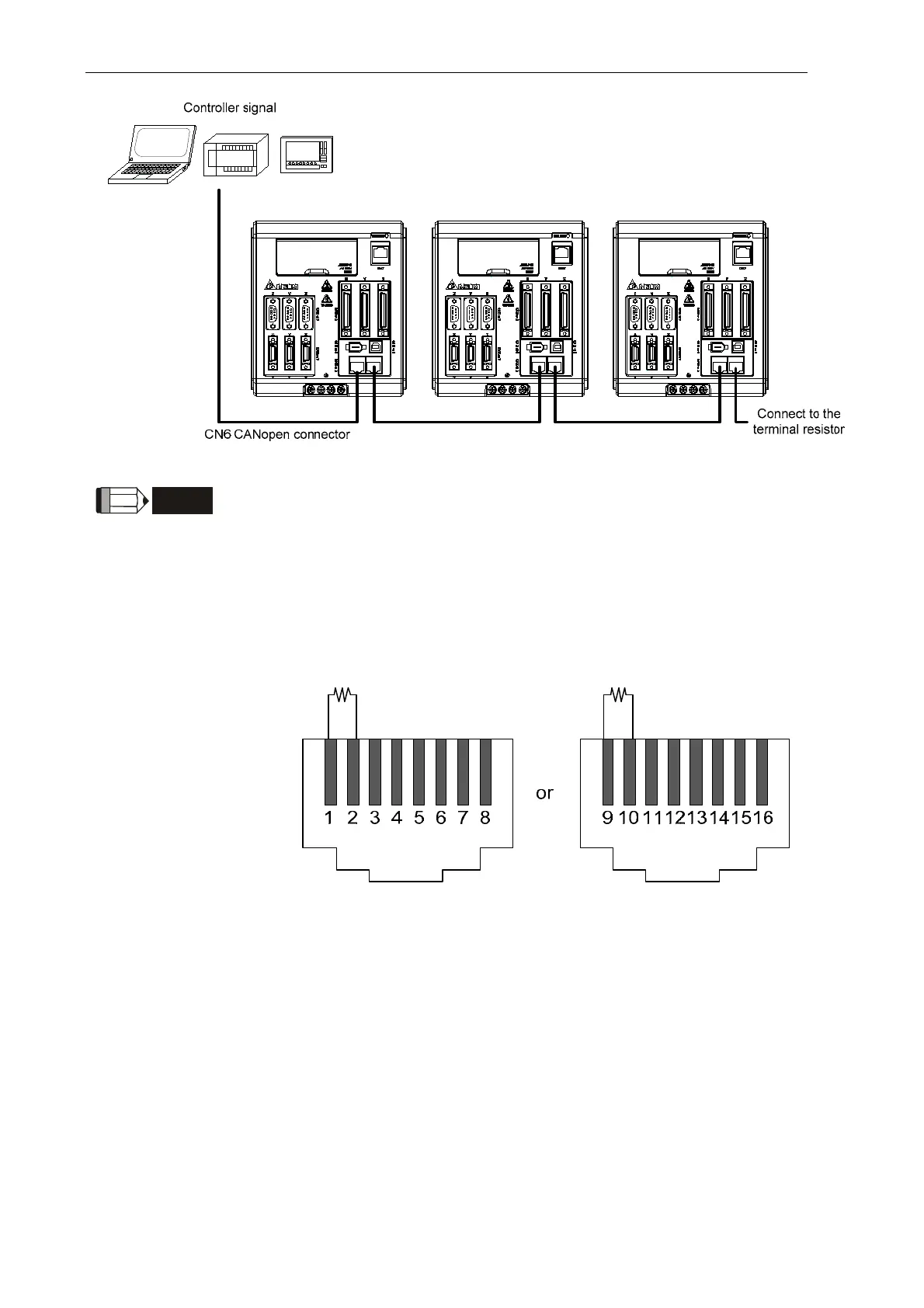

2) The wiring method of concatenate more than one drives is based on
two terminals of CANopen. One is for receiving and another one is for
transmission. And the servo drive connects to the termination resistor.
The wiring diagram of the termination resistor is shown as the
followings:
