Delta ASDA-A2 Quick Start

English-12

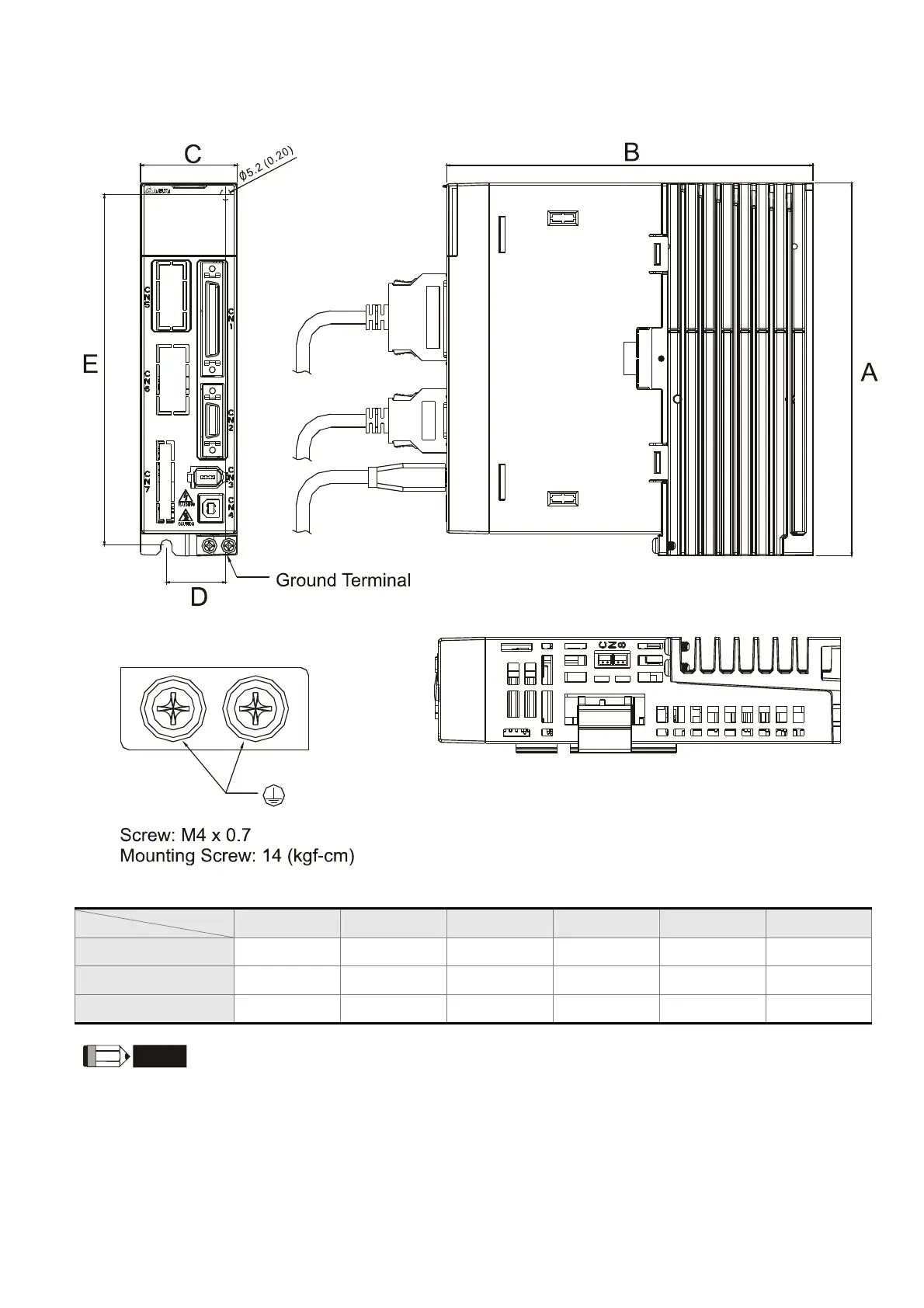

Servo Drive Dimensions
A B C D E Weight
200W ~ 400W
173 (6.81) 170 (6.69) 45 (1.77) 27.5 (1.08) 163 (6.42) 1.5 (3.3)
750W ~ 1.5kW
173 (6.81) 180 (7.09) 65 (2.56) 47 (1.83) 163 (6.42) 2.0 (4.4)
2kW ~ 3kW
216 (8.50) 203 (7.99) 82 (3.23) 62 (2.44) 203 (7.99) 2.89 (6.36)
NOTE
1) Dimensions are in millimeters and (inches).
2) Weights are in kilograms and (pounds).
3) For the actual appearance, please refer to the actual purchased product.
4) In this quick start, actual measured values are in metric units. The units in (imperial
units) are for reference only. Please use metric for precise measurements.

Delta ASDA-A2 Specifications

General

Control Mode	Position, Speed, Torque
Model	ASDA-A2 Series
Operating Voltage	200 ~ 230VAC / 380 ~ 480VAC
Power Supply	200-230VAC ±10%, single-phase
Communication Interface	RS-485, CANopen
Feedback	Incremental encoder, Absolute encoder
Protection	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Operating Temperature	0°C
Storage Temperature	-20°C
Humidity	20% to 90% RH (non-condensing)
Position Control Mode Features	Electronic Cam
Weight	Varies depending on the model. Please refer to the specific model's datasheet.
