CANopen Communication Module DVPCOPM-SL

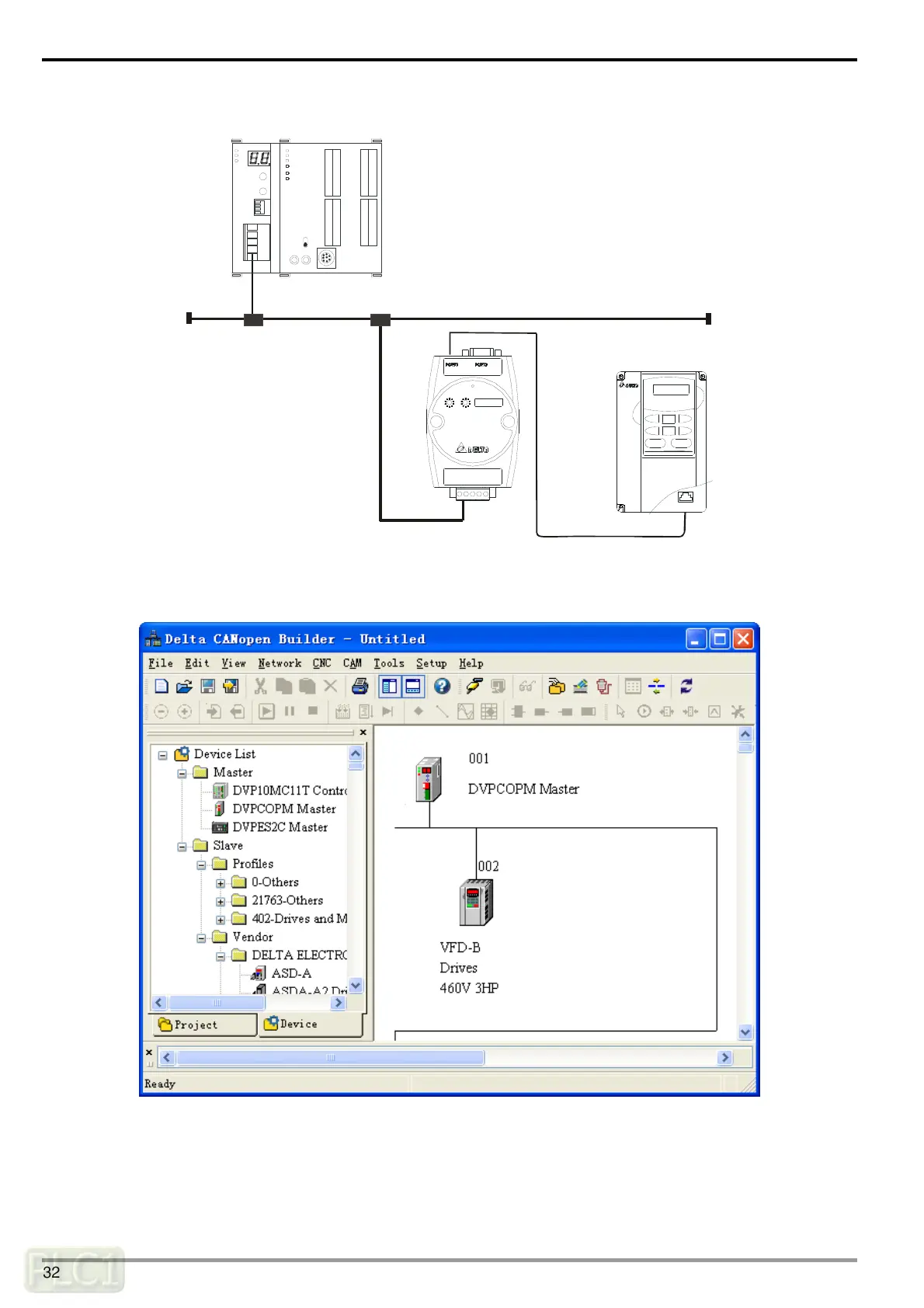

Hardware
Connection:
DVPCOPM DVP28SV
RUN
STOP
Master
CANopen
RJ12
VFD-B
RS-485
IFD9503
CAN+
CAN-
SHLD
GND
Node 1
Node 2
Software operation:
Add a master and slave in the CANopen Builder software as below:
DVP-PLC Operation Manual
32
