8-7 EMM-BPS01 -- +24 V Power Extension Card

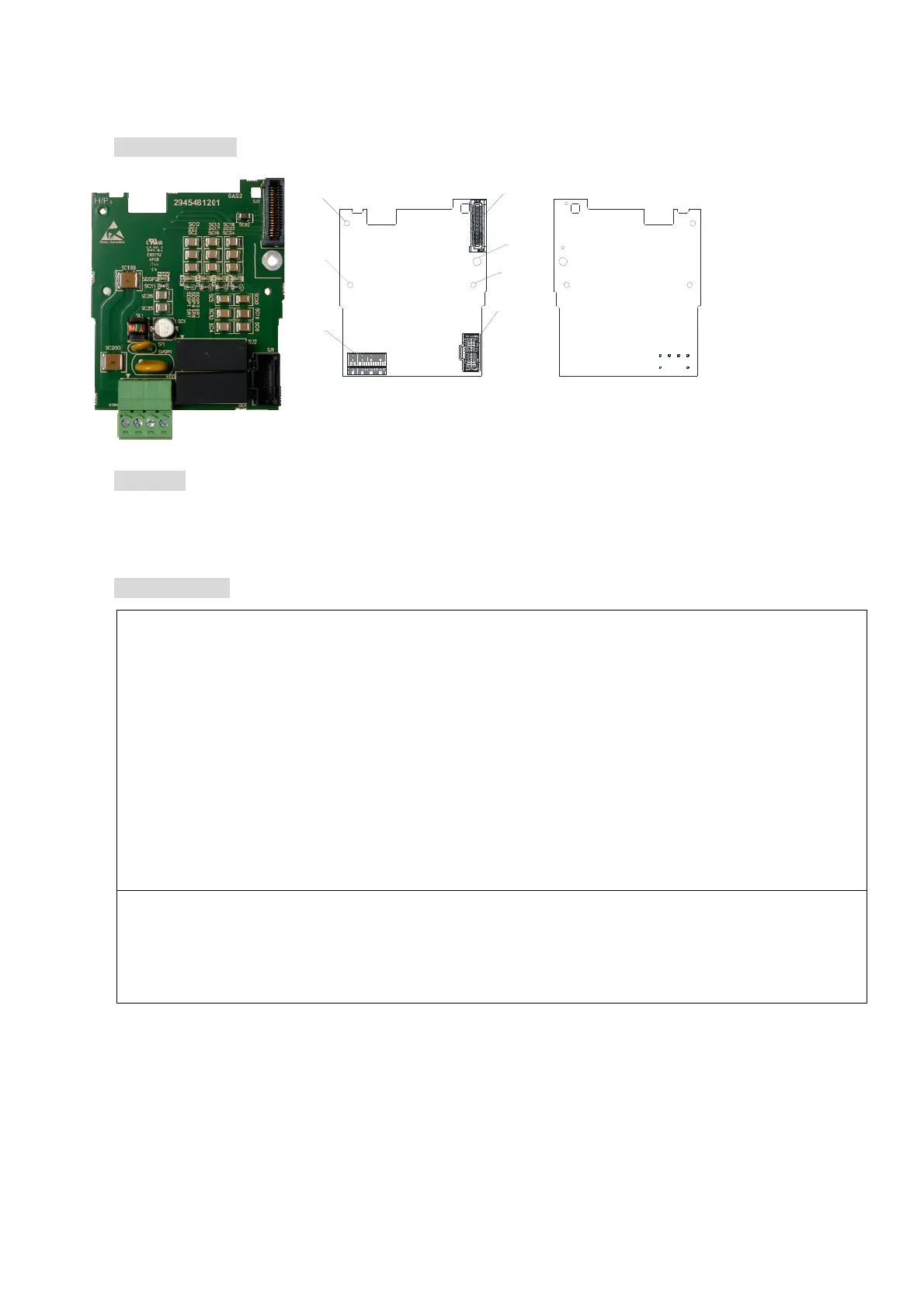

 Product Profile
2
3
1
4
2
3
2
1. Screw fixing
hole
2. Positioning hole
3. AC motor drive
connection port
4.
+24 V terminal
block
 Features
1. Provides external power supply.
2. Supports external 24 V
DC
input.
3. Supports reading and writing parameter and status monitoring of the drive.
 Specifications
When the drive is only powered by the EMC-BPS01, communication remains normal, including support for all
communication cards and the following functions:
 Reading and writing parameters
 Display with keypad
 Keypad buttons (except the RUN button)
 Analog input, can be used with +10 V terminal to supply the power.
 Multi-function inputs (FWD, REV, MI1–MI8), can be used with +24 V terminal or an external power
supply.
 Relay output available
 Pulse sequence frequency command function
The following functions are not supported:
 DFM digital frequency signal output
 AFM multi-function analog voltage output
 PLC function

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
