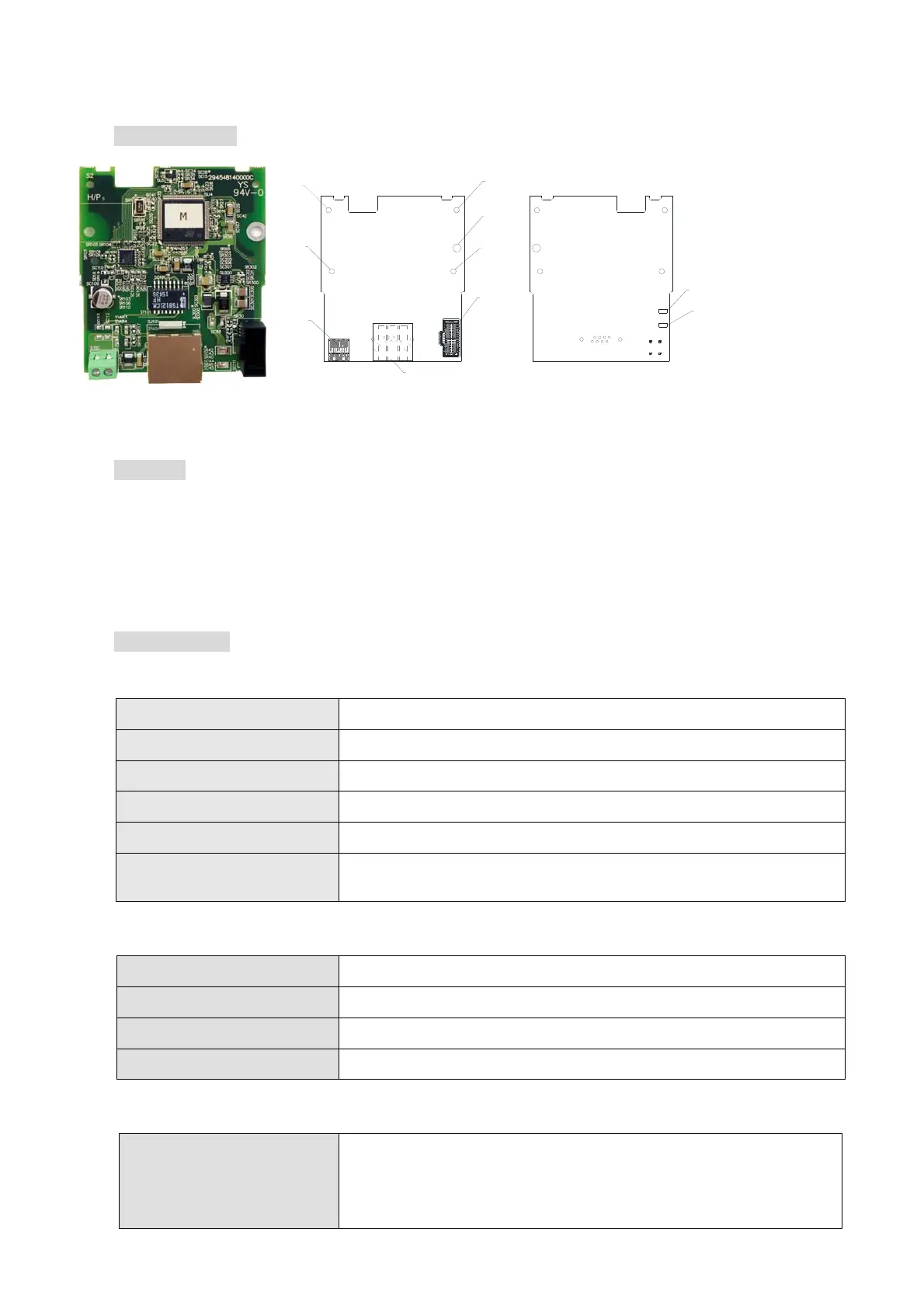

8-5 CMM-EIP01 -- Communication Extension Card, EtherNet/IP
 Product Profile
5(NET2)
5(NET1)
6
2
4
3
2
2
2
1
 Features
1. Supports Modbus TCP and EtherNet/IP protocol
2. 32 / 32 words read/write parameters mapping
3. User-defined corresponding parameters
4. MDI / MDI-X auto-detect
5. E-mail alarm
6. IP Filter firewall
 Specifications
Network Interface
Interface
RJ45 with Auto MDI / MDIX
Number of ports
1 Port
Transmission method
IEEE 802.3, IEEE 802.3u
Transmission cable
Category 5e shielding 100 M
Transmission speed
10/100 Mbps Auto-Detect
Network protocol
ICMP, IP, TCP, UDP, DHCP, HTTP, SMTP, Modbus TCP, EtherNet / IP,
Delta Configuration
Electrical Specification
Insulation voltage
500
V
DC
Power consumption
0.8 W
Power supply voltage
5
V
DC
Weight
25 g
Environment
Noise immunity
ESD (IEC 61800-5-1, IEC 61000-4-2)
EFT (IEC 61800-5-1, IEC 61000-4-4)
Surge Test (IEC 61800-5-1, IEC 61000-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 61000-4-6)
Wire: 0.25–0.5 mm
2
[24–20 AWG]
Stripping length: 7–8 mm
Torque: 2 kg-cm／[1.7 Ib-in.]／[0.2 Nm]
1. Screw fixing hole
2. Positioning hole
3. AC motor drive
connection port
4. Communication port
5. Indicator
6. Ground terminal block
