Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 7 Optional Accessories  MS300 (IP66 / NEMA 4X)
7-30

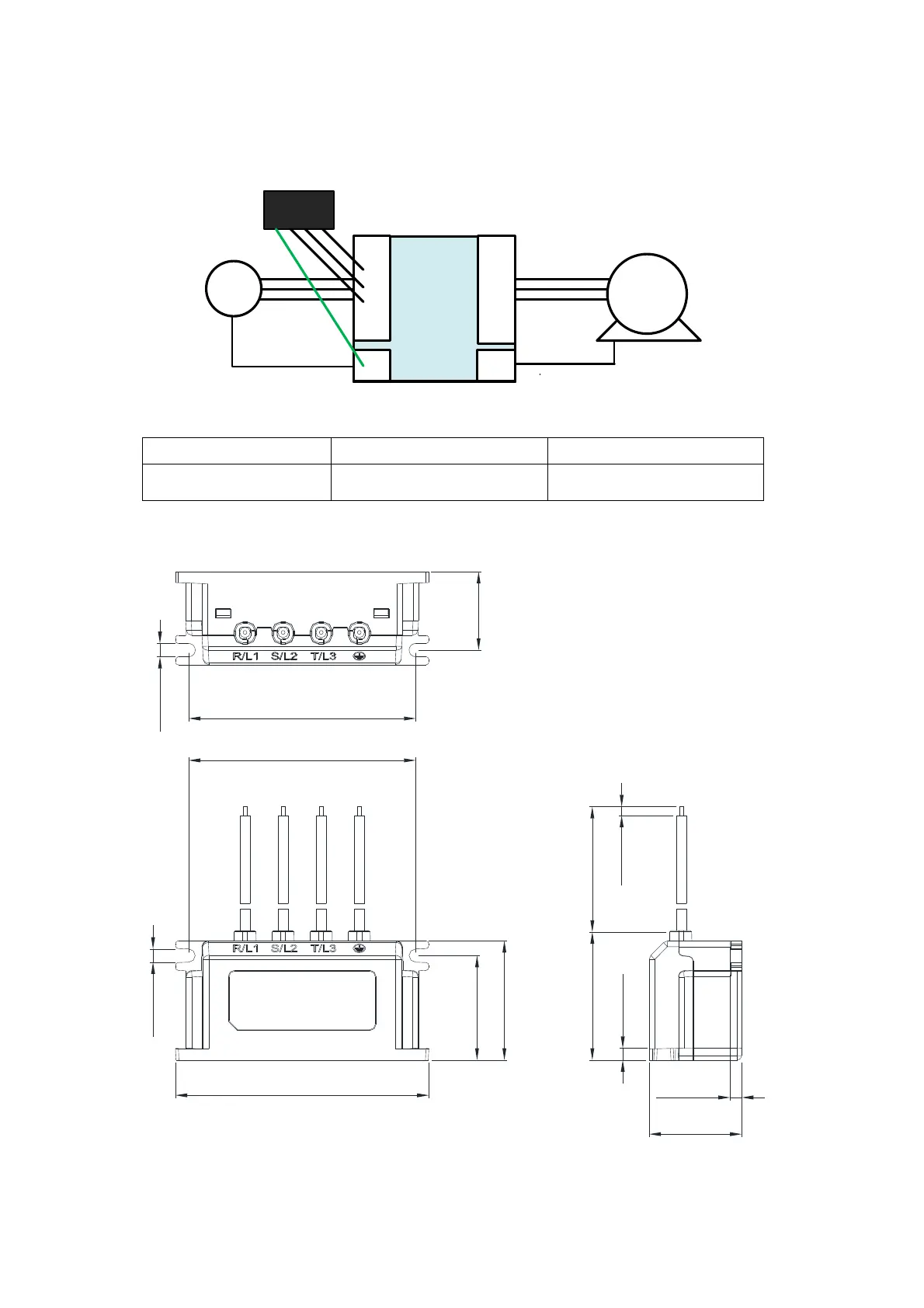

7-8 Capacitive Filter (IP Level: IP20)
The capacitive filter is a simple filter that supports basic filtering and noise interference reduction.
Installation
VFD
R
S
T
U
V
W
PE
Motor
PE
Grid
Capacitor
Filter
Specifications
Model Capacitance Temperature range
CXY101-43A
Cx: 1 μF ± 20 %
Cy: 0.1 μF ± 20 %
-40–85°C
Dimensions
CXY101-43A Unit: mm [inch]
77.5 [3 .05]
26.6 [1.05]
4.5 [0.18]
86.5 [3 .41]
35.5 [1.40]
40.5 [1. 59]
77.5 [3.05 ]
4
.
5
[
0
.
1
8
]
350 [13.78]
10 [0.39]
43.5 [1. 71]
4.0 [0.16]
31.6 [1.24 ]
4.0 [ 0.16]

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
