Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-20
7-6 EMC Filter (IP Level: IP20)
Using an EMC filter enhances the machine and surrounding environment's EMC capabilities to
meet with EMC requirements and reduces problems caused by EMC. If you use a model without
a built-in EMC filter, it is recommended that you buy an optional EMC filter. Some models may
need to work with zero phrase reactors to comply with EMC standards. The table and figure
below show the recommended models for EMC filters and zero phase reactors, installation
methods, and the maximum motor cable length.
Fr
am
e
Model #
Input
Current
[A]
Filter Model #
Recommended Model of
Zero Phase Reactor
Conducted Emission
Radiated
Emission
C1-motor cable
length-30m
C2-motor cable
length-100m
C2-motor cable
length-100m
Position to Place Zero Phase Reactor
DELTA V
AC
*1 *2 *3 N/A *1 *2 *3
A
VFD2A8MS21MNSAA 8.3 EMF11AM21A
RF008X00A
T60006L2040W453
✓ ✓
N/A
✓ ✓
VFD4A8MS21MNSAA 11.3 EMF11AM21A
✓ ✓
N/A
✓ ✓
VFD7A5MS21MNSAA 18.5 EMF27AM21B
✓
N/A
✓
VFD2A8MS23MNSAA 3.8 EMF10AM23A
✓ ✓
N/A
✓ ✓
VFD4A8MS23MNSAA 6 EMF10AM23A
✓ ✓
N/A
✓ ✓
VFD7A5MS23MNSAA 9.6 EMF10AM23A
✓ ✓
N/A
✓ ✓
VFD1A5MS43MNSAA 2.5 EMF6A0M43A
✓
N/A
✓
VFD2A7MS43MNSAA 4.2 EMF6A0M43A
✓
N/A
✓
VFD4A2MS43MNSAA 6.4 EMF6A0M43A
✓
N/A
✓
VFD5A5MS43MNSAA 7.2 EMF12AM43B N/A
B
VFD11AMS21MNSAA 27.5 EMF27AM21B
✓
N/A
✓
VFD11AMS23MNSAA 15 EMF24AM23B
✓ ✓
N/A
✓ ✓
VFD17AMS23MNSAA 23.4 EMF24AM23B
✓ ✓
N/A
✓ ✓
VFD9A0MS43MNSAA 11.6 EMF12AM43B
✓ ✓
N/A
✓ ✓
C
VFD25AMS23MNSAA 32.4 EMF33AM23B
T60006L2050W565
✓ ✓
N/A
✓ ✓
VFD13AMS43MNSAA 17.3 EMF23AM43B
✓ ✓ ✓
N/A
✓ ✓ ✓
VFD17AMS43MNSAA 22.6 EMF23AM43B
✓ ✓ ✓
N/A
✓ ✓ ✓

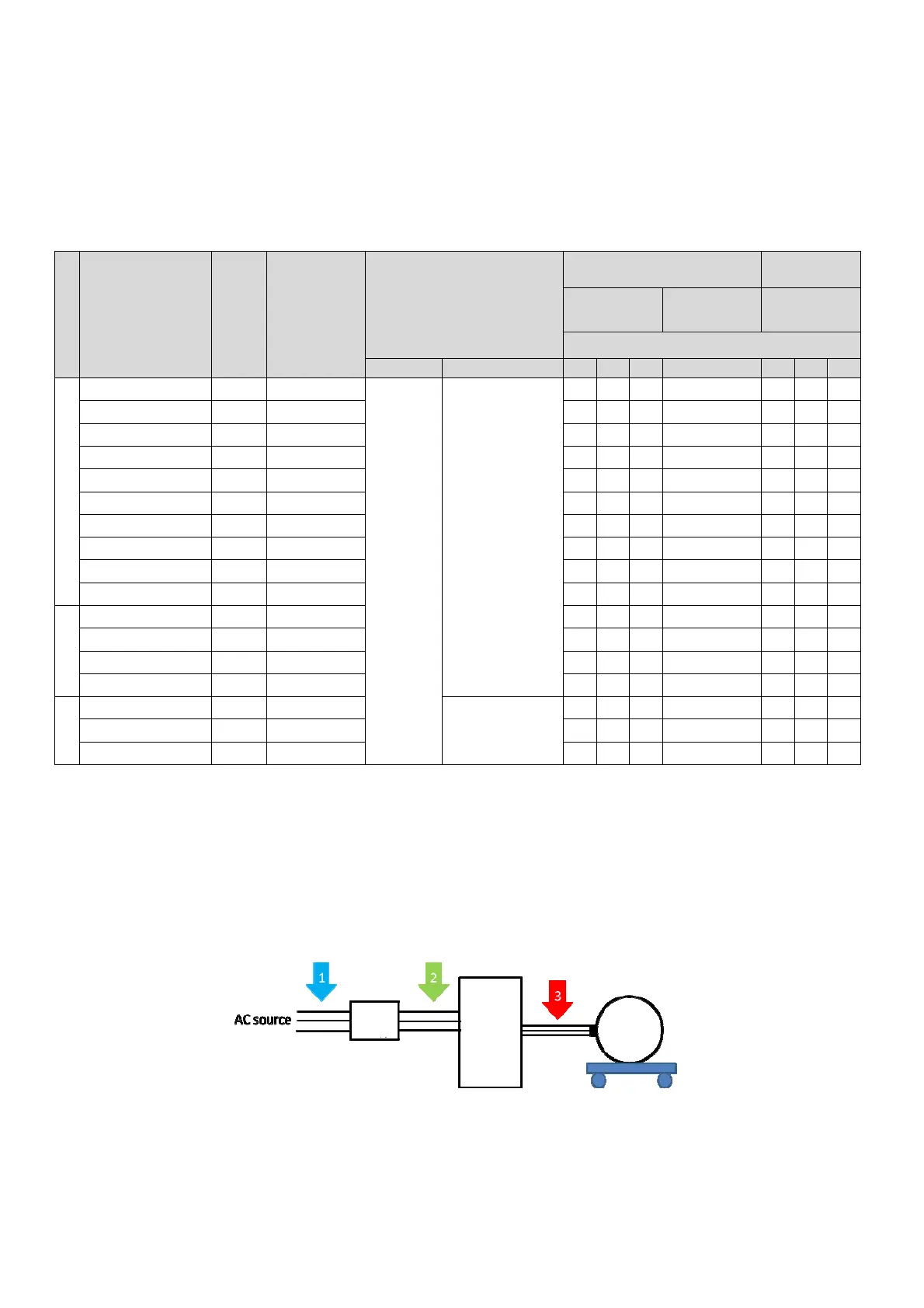

Positions to install zero phase reactors:
*1 Install on the cable between the power supply and the EMC filter.
*2 Install on the cable between the EMC filter and the drive.
*3 Install on the cable between the drive and the motor.
EMC
Filter
Motor
Drive
To Next Page
