Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-19

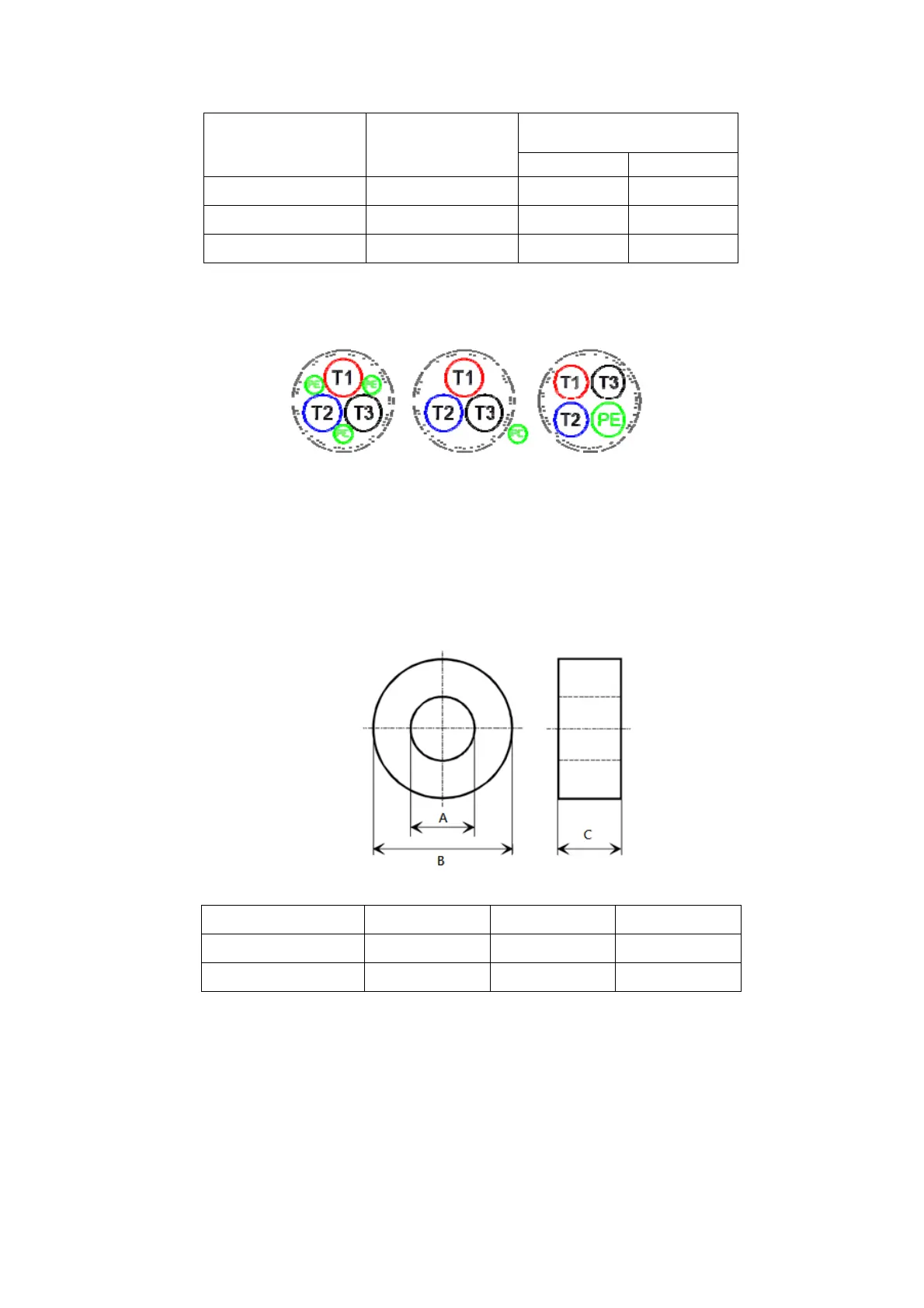

Recommended maximum wiring gauge when installing zero phase reactor
Model # of Zero
Phase Reactor
Max. Wire Gauge
or LUG width
Max. Wire Gauge AWG*
75°C 90°C
RF008X00A 13 mm 3 AWG 1 AWG
T600006L2040W453 11 mm 6 AWG 6 AWG
T600006L2050W565 16 mm 1 AWG 1/0 AWG
* Pass the zero phase reactor only through the power inputs (R/L1, S/L2, T/L3) or motor outputs (U/T1, V/T2, W/T3),
not the grounding PE.
Refer to the figures below for the common output wiring methods.
Zero Phase Reactor for Signal Cable
To solve interference problems between signal cables and electric devices, install a zero phase
reactor on signal cable. Install it on the signal cable which is the source of the interference to suppress
the noise for a better signal. The model names and dimensions are listed in the table below.
Unit: mm
Model A B C
T60004L2016W620 10.7 17.8 8.0
T60004L2025W622 17.5 27.3 12.3

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
