Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-29

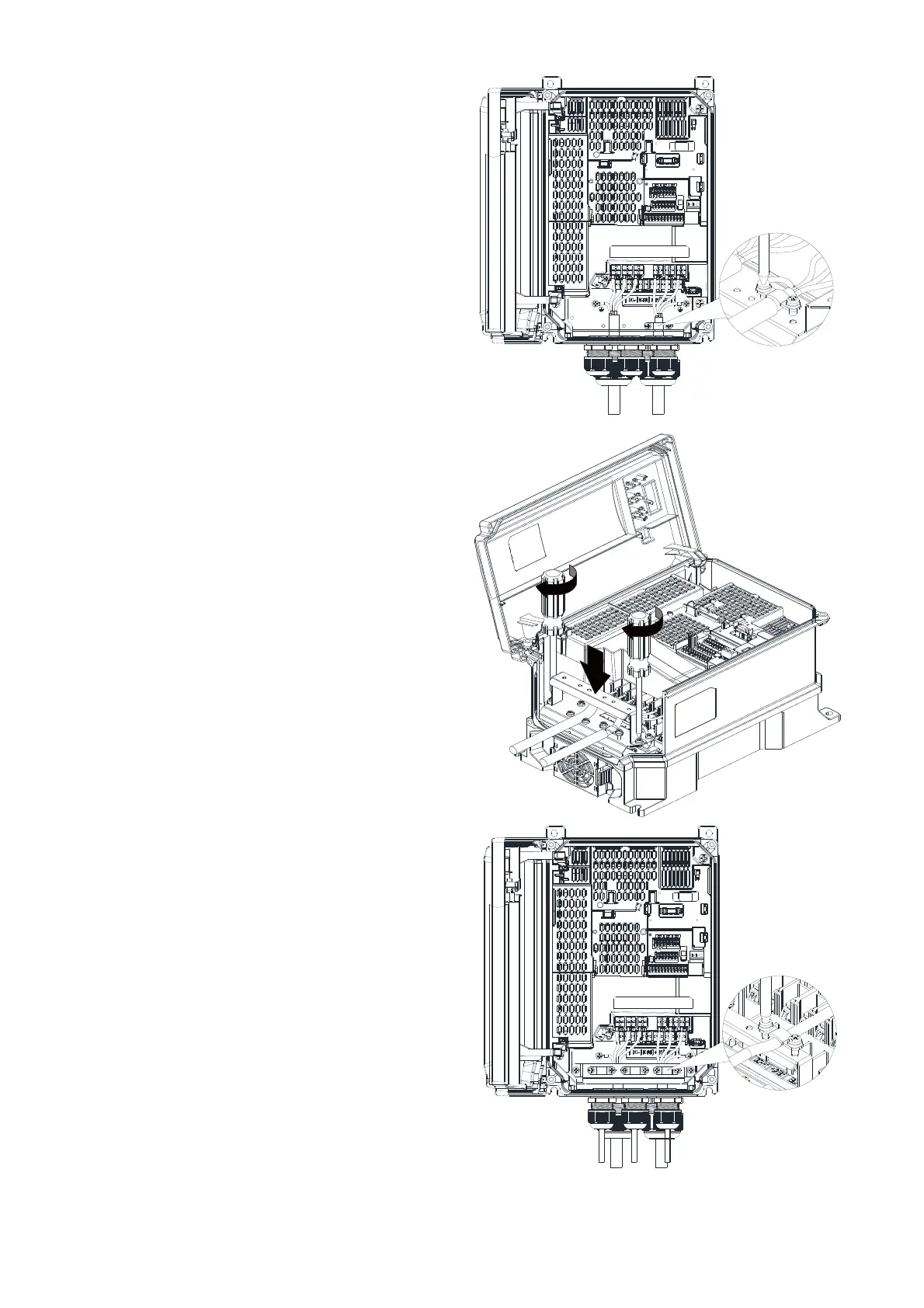

3. Before doing any wiring, strip part of the wire
wraps, and then tighten the wires for output
terminals on the EMC shield plate (clamps
must be fixed on the shielding).
4. Install the second EMC shield plate on top of
the first one.
5. Tighten and fix the control wire with clamps.
