Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 8 Optional Cards  MS300 (IP66 / NEMA 4X)
8-16
Operation / Storage
Operation: -10–50 °C (temperature), 90 % (humidity)
Storage: -25–70 °C (temperature), 95 % (humidity)
Shock / Vibration resistance
International standard:
IEC 61800-5-1, IEC 60068-2-6 / IEC 61800-5-1, IEC 60068-2-27
 Installation

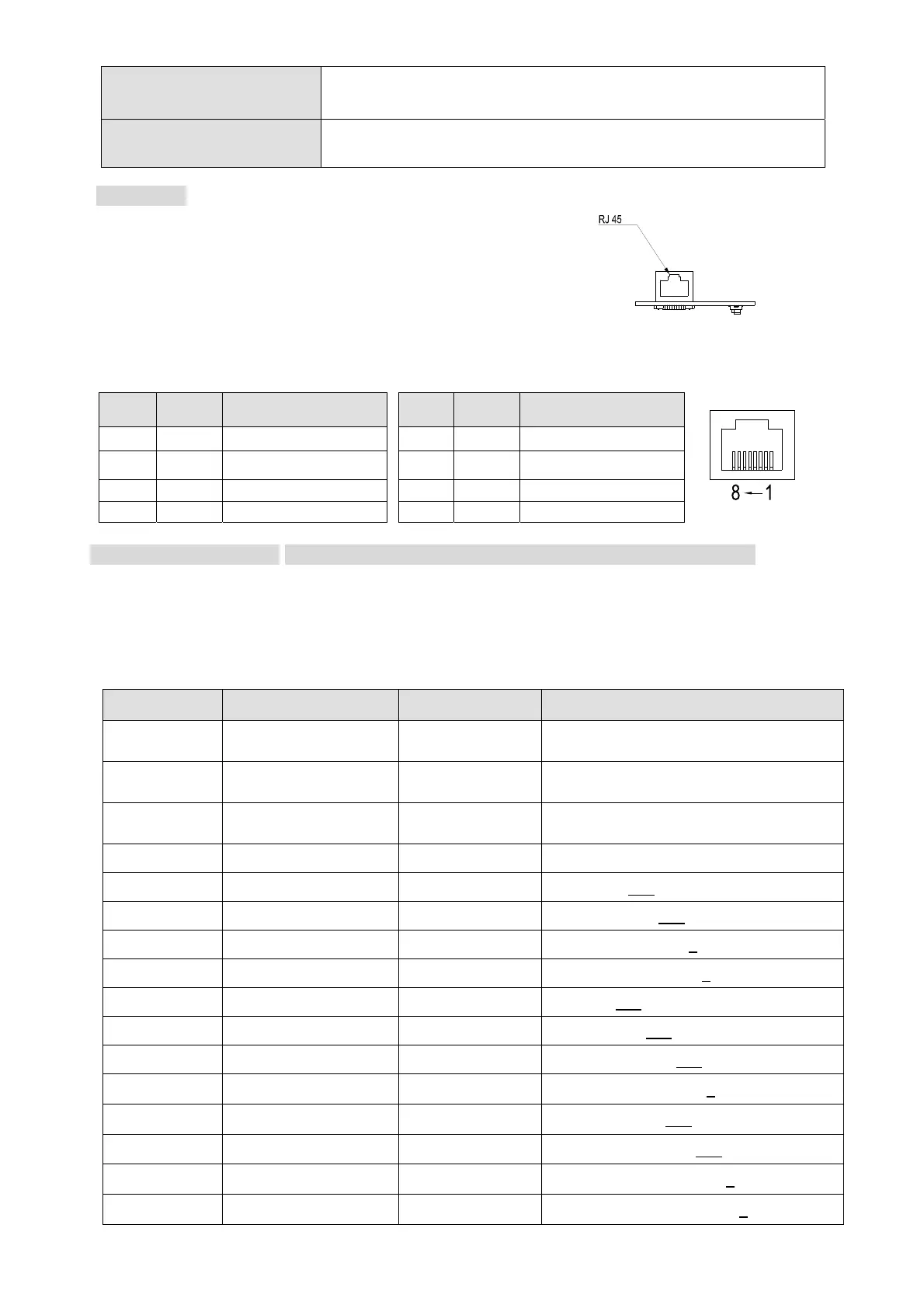

Connecting the CMM-EIP01 to the Network
1. Switch off the power supply.
2. Open the front cover of the drive.
3. Connect the CAT-5e network cable to the RJ45 port on the
CMM-EIP01 (as shown in the right figure).
RJ45 PIN Definition
PIN Signal Definition PIN Signal Definition
1 Tx+ Data transmit positive 5 -- N/C
2 Tx- Data transmit negative 6 Rx- Data receive negative
3 Rx+ Data receive positive 7 -- N/C
4 -- N/C 8 -- N/C
 MS300 (IP66 / NEMA 4X) Communication Parameters when Connected to EtherNet
When you connect the MS300 (IP66 / NEMA 4X) to EtherNet, set up the communication
parameters based on the table below. The EtherNet master can read and write the frequency
command words and operation command words for the MS300 (IP66 / NEMA 4X) after you set the
communication parameters.
Parameter Function Current Set Value Definition of Parameter Values
00-20
Frequency command
source
8
The frequency command is controlled by
the communication card.
00-21
Operation command
source
5
The operation command is controlled by
the communication card.
09-30
Decoding method for
communication
0
The decoding method for Delta AC motor
drive.
09-75 IP setting 0 Static IP(0) / Dynamic distribution IP(1)
09-76
IP address 1
192 IP address 192.168.1.5
09-77 IP address 2 168 IP address 192.168.1.5
09-78 IP address 3 1 IP address 192.168.1.5
09-79
IP address 4
5 IP address 192.168.1.5
09-80 Netmask 1 255 Netmask 255.255.255.0
09-81 Netmask 2 255 Netmask 255.255.255.0
09-82
Netmask 3
255 Netmask 255.255.255.0
09-83 Netmask 4 0 Netmask 255.255.255.0
09-84 Default gateway 1 192 Default gateway 192.168.1.1
09-85 Default gateway 2 168 Default gateway 192.168.1.1
09-86 Default gateway 3 1 Default gateway 192.168.1.1
09-87 Default gateway 4 1 Default gateway 192.168.1.1
