Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 10 Digital KeypadMS300 (IP66 / NEMA 4X)
10-2
Displayed items Descriptions
RUN
FWD
REV
STOP
PLC
Displays the data set that is not accepted or has exceeded the
value.

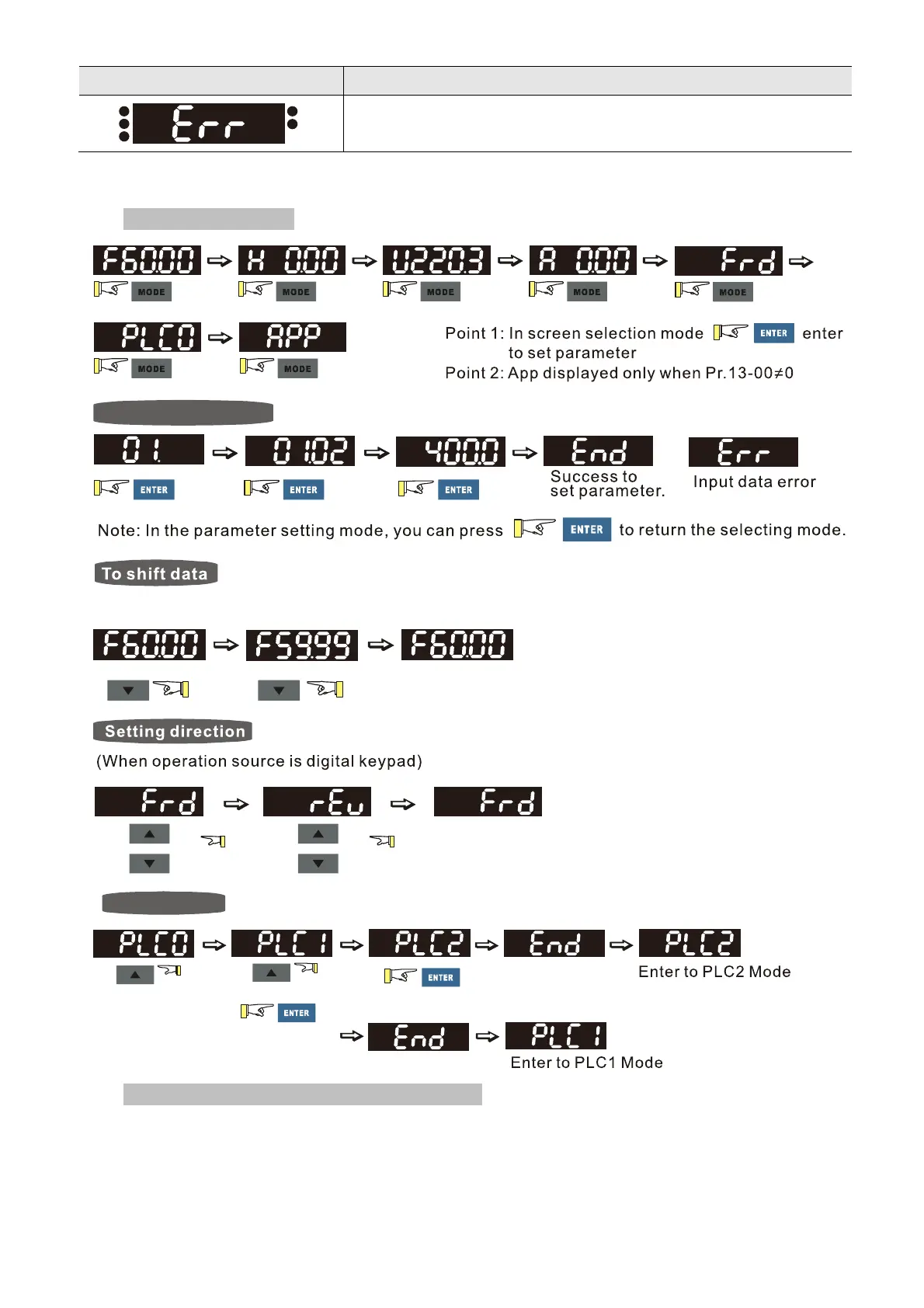

Keypad Operation Process
A. Main Page Selection
Sett ing p arame ters
or
START
or or
PLC Setting
or
B. F Page (Frequency command setting page)
General Mode 1
(maximum operation frequency Pr.01-00 is 2 digits; for example, Pr.01-00 = 60.00 Hz)

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
