Chapter 10 Digital KeypadMS300 (IP66 / NEMA 4X)
10-7
<
/
<
/
<
/
<
/
The upper limit for Pr.03-74 is 100.00 and lower limit is -100.00. If you set a value of more
than 100.0 or less than -100.0 when the left shift function key is enabled, “Err” appears after you
press ENTER, and then the keypad temporarily shows the upper limit (100.0) or lower limit
(-100.0) (only one decimal) to remind you of the incorrect setting. The setting value remains as
the original set value, which means the parameter is not changed. Finally, the cursor returns to
the last digit.


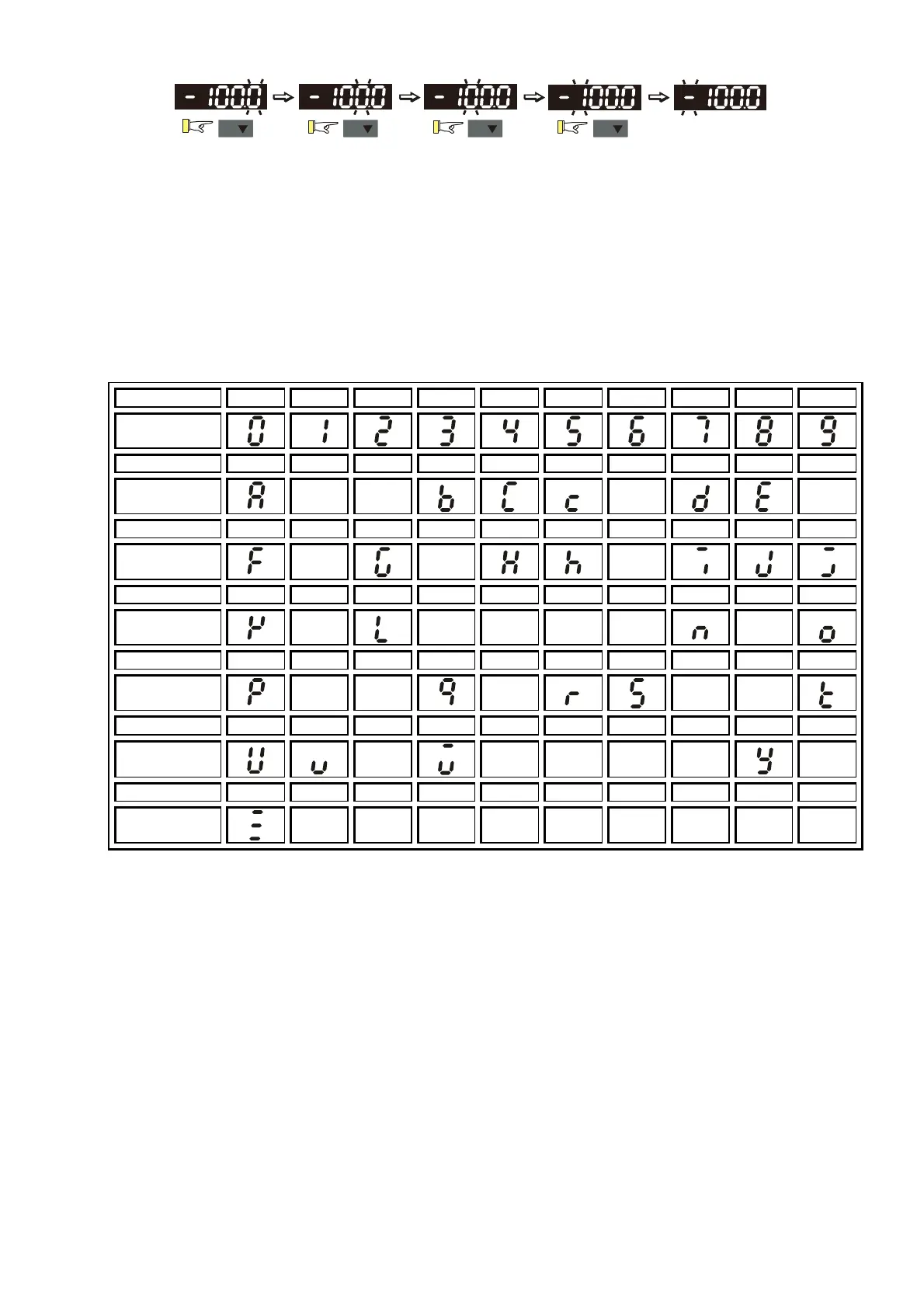

Reference Table for the 7-segment Digital Keypad LED Display
Number 0 1 2 3 4 5 6 7 8 9
Display
Number A a B b C c D d E e
Display
－ － － －
Number F f G g H h I i J j
Display
－ － －
Number K k L l M m N n O o
Display
－ － － － － －
Number P p Q q R r S s T t
Display
－ － － － －
Number U u V v W w X x Y y
Display
－
－ － － －
－
Number Z z
Display
－

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
