Chapter 1 Introduction MS300 (IP66 / NEMA 4X)
1-6
Frame B–C (model with built-in EMC filter)
Removing the RFI Jumper
After removing the RFI jumper, clip it to the supplementary rib for future use.

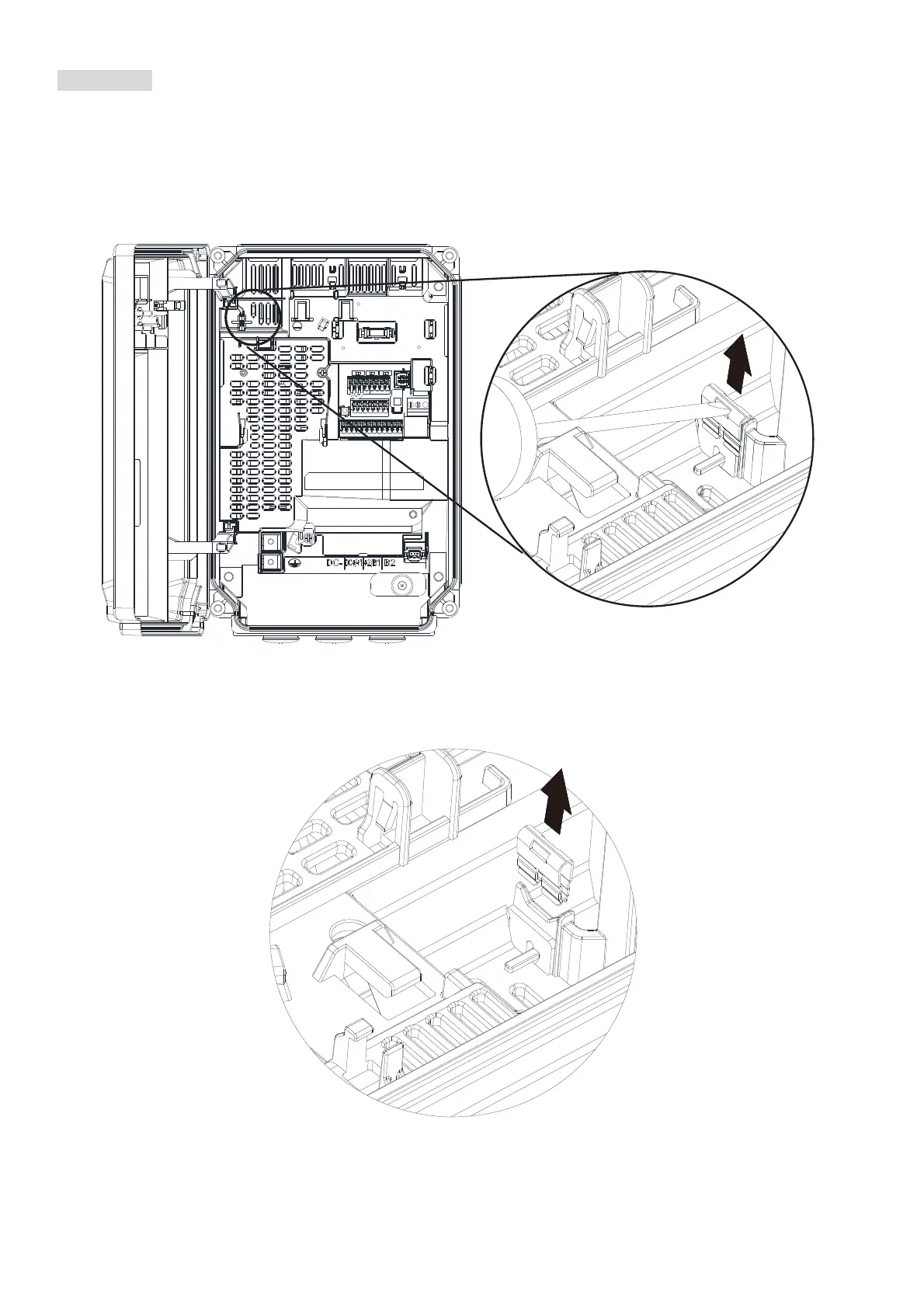

1. Lift up the RFI jumper with a slotted screwdriver.
2. Remove the RFI jumper.
Figure 1-6
Figure 1-7
