Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

12 Description of Parameter SettingsMS300 (IP66 / NEMA 4X)
12-3

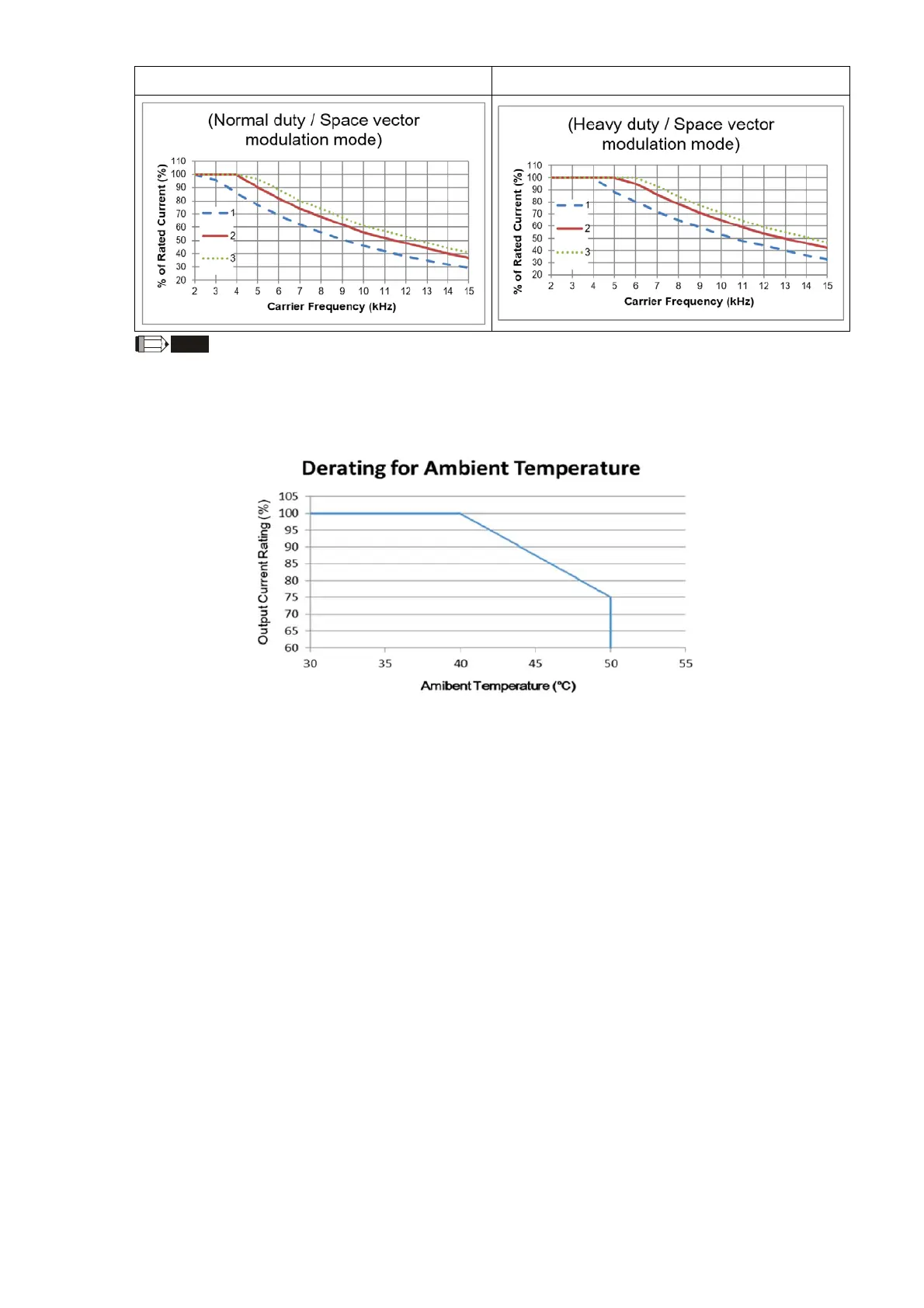

In normal duty mode (Pr.00-16 = 0) In heavy duty mdoe (Pr.00-16 = 1)
NOTE
Line 1: T
a
= 40°C / Duty = 100%
Line 2: T
a
= 40°C / Duty = 75% or T
a
= 30°C / Duty = 100%
Line 3: T
a
= 40°C / Duty = 50% or T
a
= 25°C / Duty = 100%
Ambient temperature derating curve for general control

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
