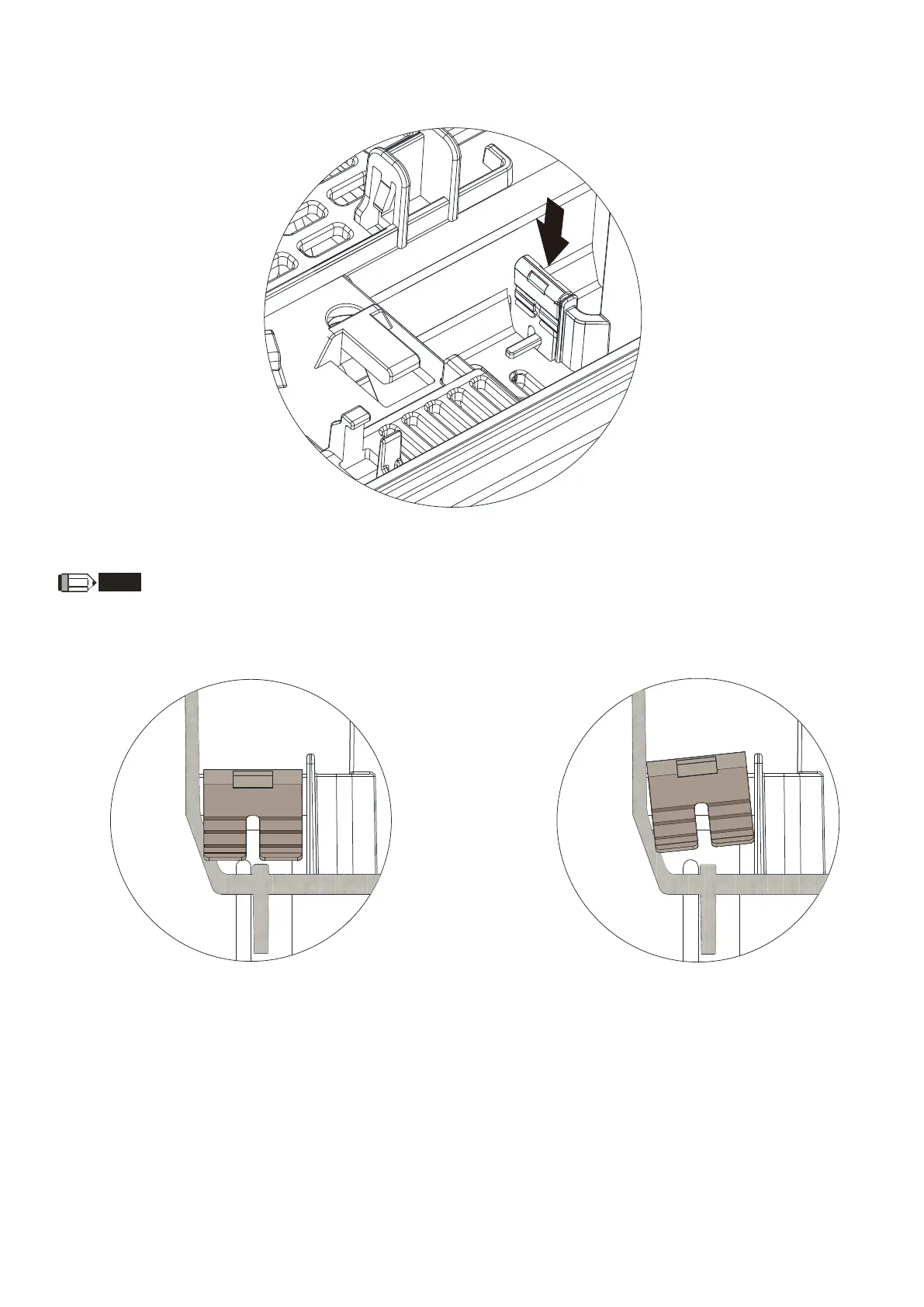

 Connecting the RFI Jumper
Press the RFI jumper to fix it.
NOTE
Make sure that the RFI jumper is fixed on the correct position when connecting the RFI jumper.
Correct fixing Wrong fixing
