Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 4 WiringMS300 (IP66/NEMA 4X)
4-5

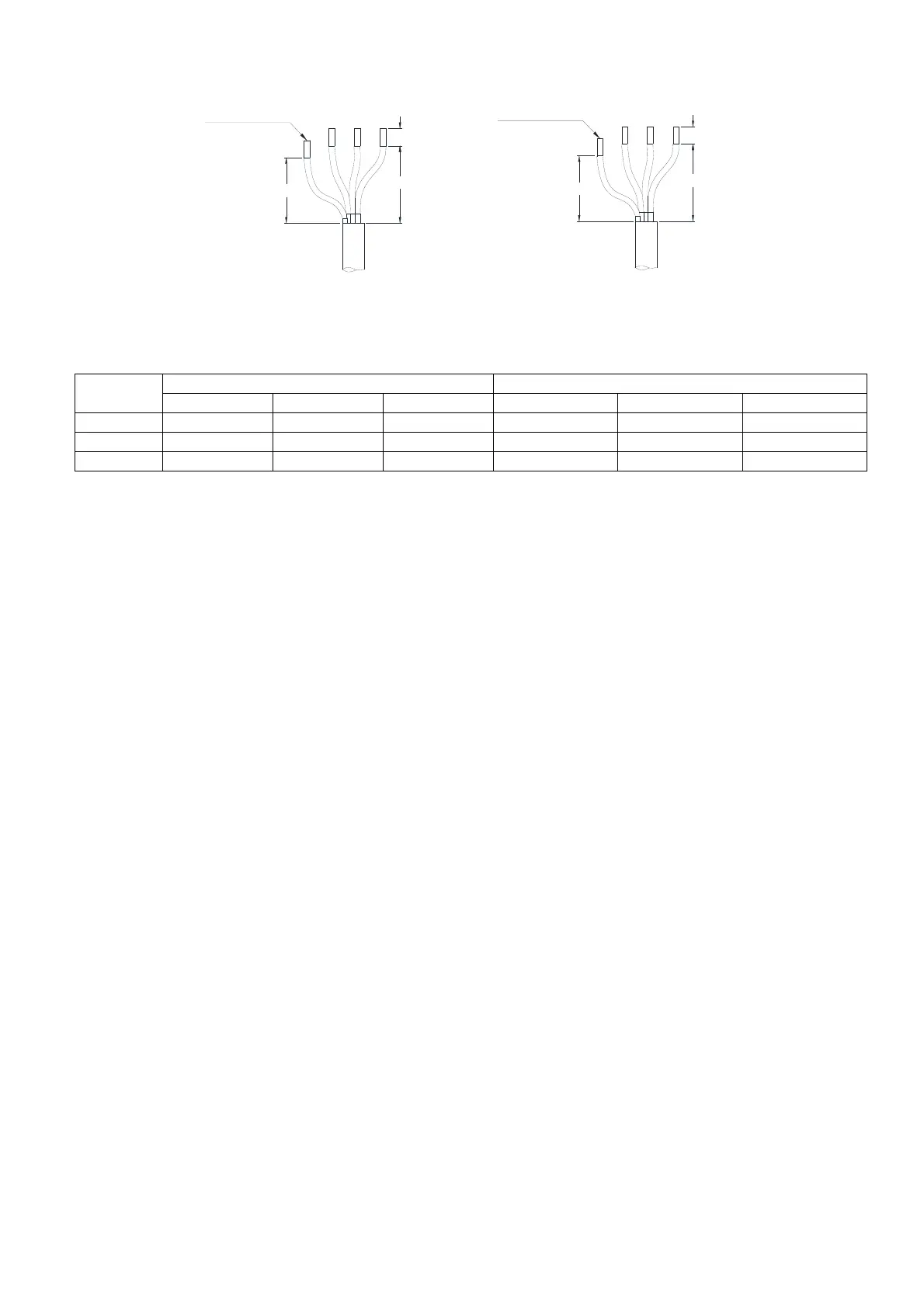

The Recommended Value of the Wire To Strip
c
a
Earth Conductor
b
R/L1, S/L2, T/L3
d
Earth Conductor
f
e
U/T1, V/T2, W/T3
Frame
R/L1, S/L2, T/L3 U/T1, V/T2, W/T3
a b c d e f
A 70 [2.76] 60 [2.36] 8 [0.31] 70 [2.76] 60 [2.36] 8 [0.31]
B 60 [2.36] 25 [0.98] 8 [0.31] 60 [2.36] 40 [1.57] 8 [0.31]
C 60 [2.36] 30 [1.18] 8 [0.31] 70 [2.76] 80 [3.15] 8 [0.31]
Unit: mm [inch]

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
