7-7-2 Installation
Frame A
Screw: M4
Torque value: 6–8 kg-cm / [5.2–6.9 lb-in.] / [0.59–0.78 Nm]

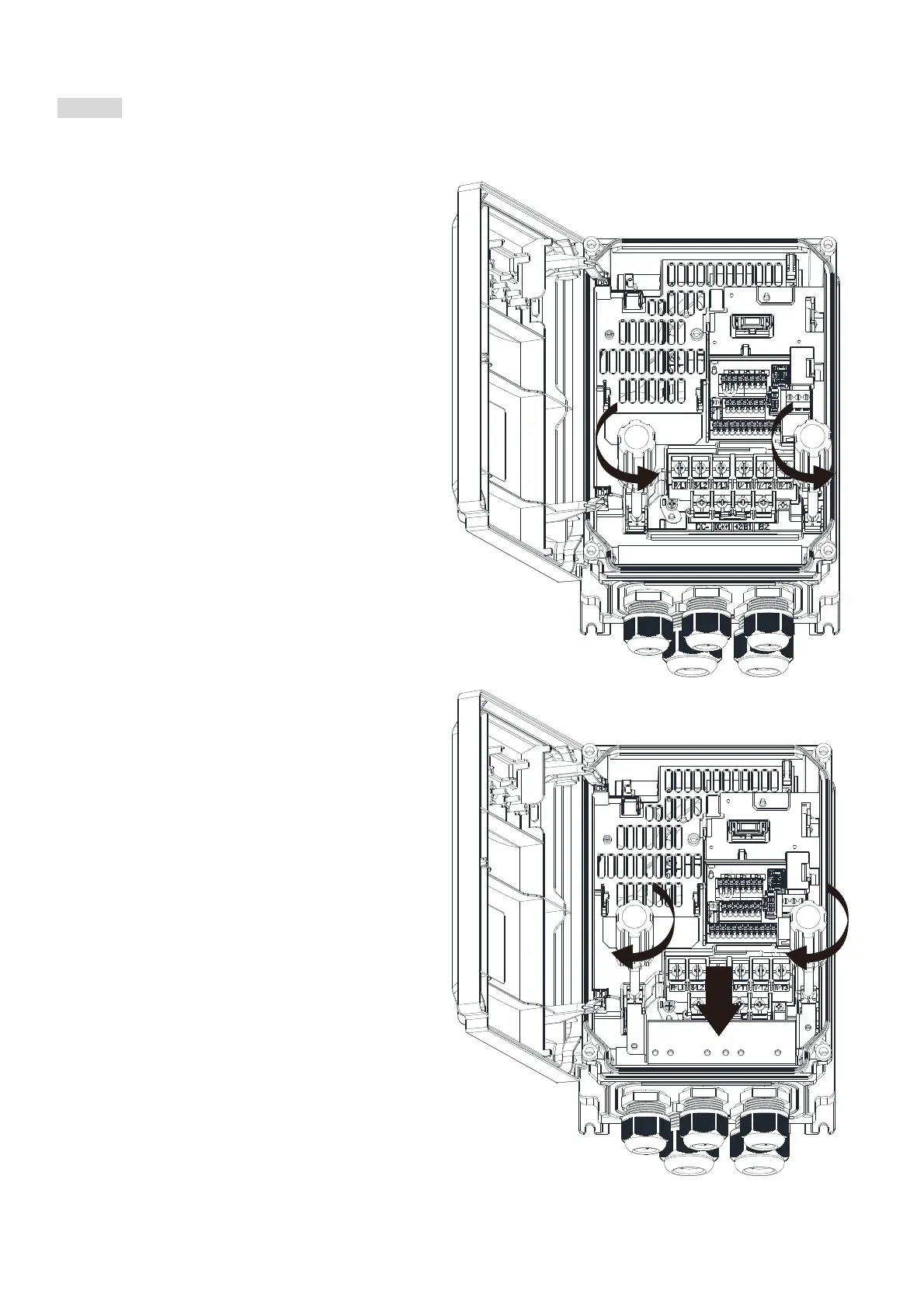

1. Loosen the ground screws on the right and
left.
2. Put the first EMC shield plate into the drive,
and then tighten the ground screws on the
right and left again.
