Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-26
Frame B
Screw: M4
Torque value: 6–8 kg-cm / [5.2–6.9 lb-in.] / [0.59–0.78 Nm]

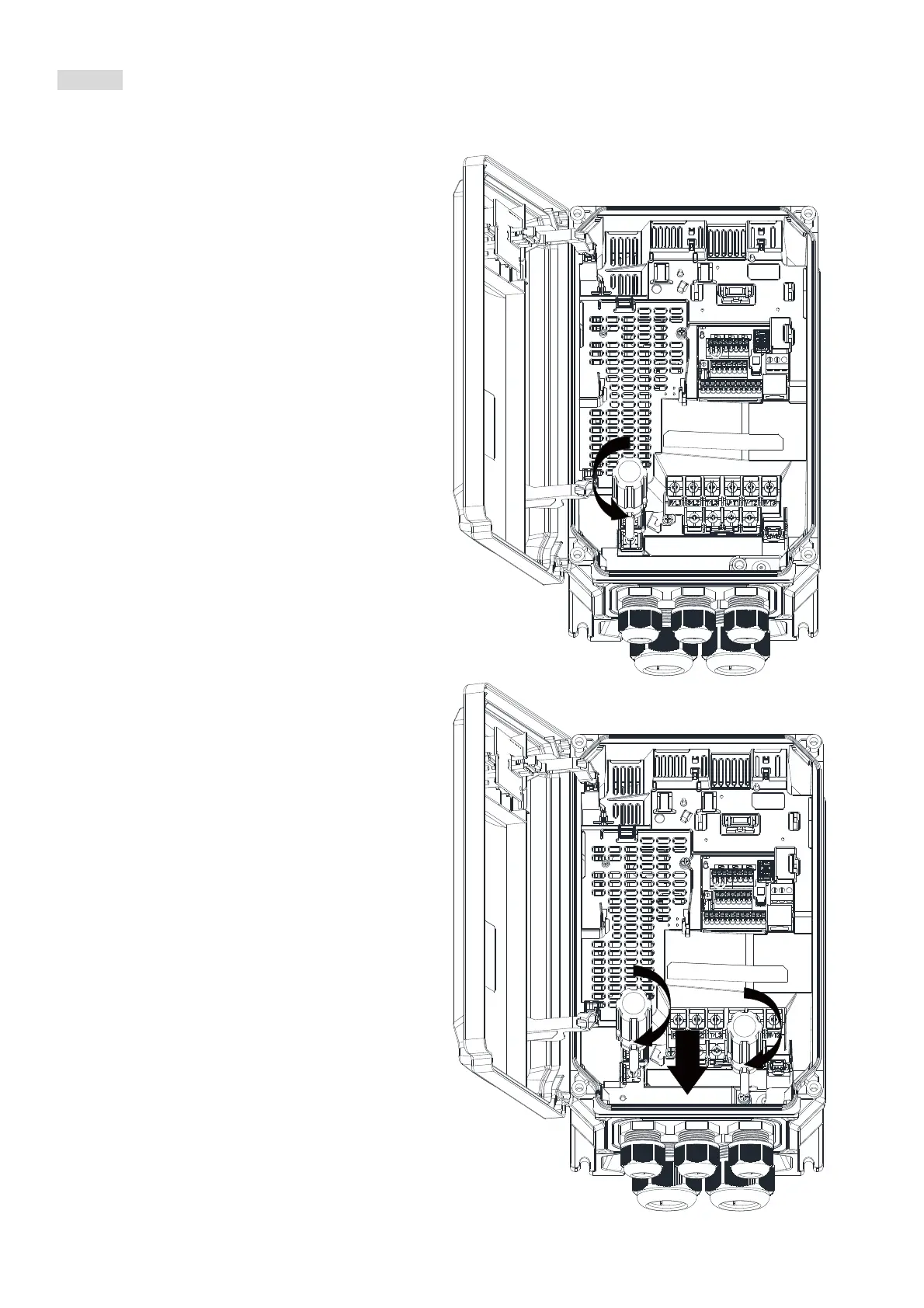

1. Loosen the ground screws on the left.
2. Put the first EMC shield plate into the drive,
and then tighten the ground screws on the
left and the fixing screw on the right.
