11

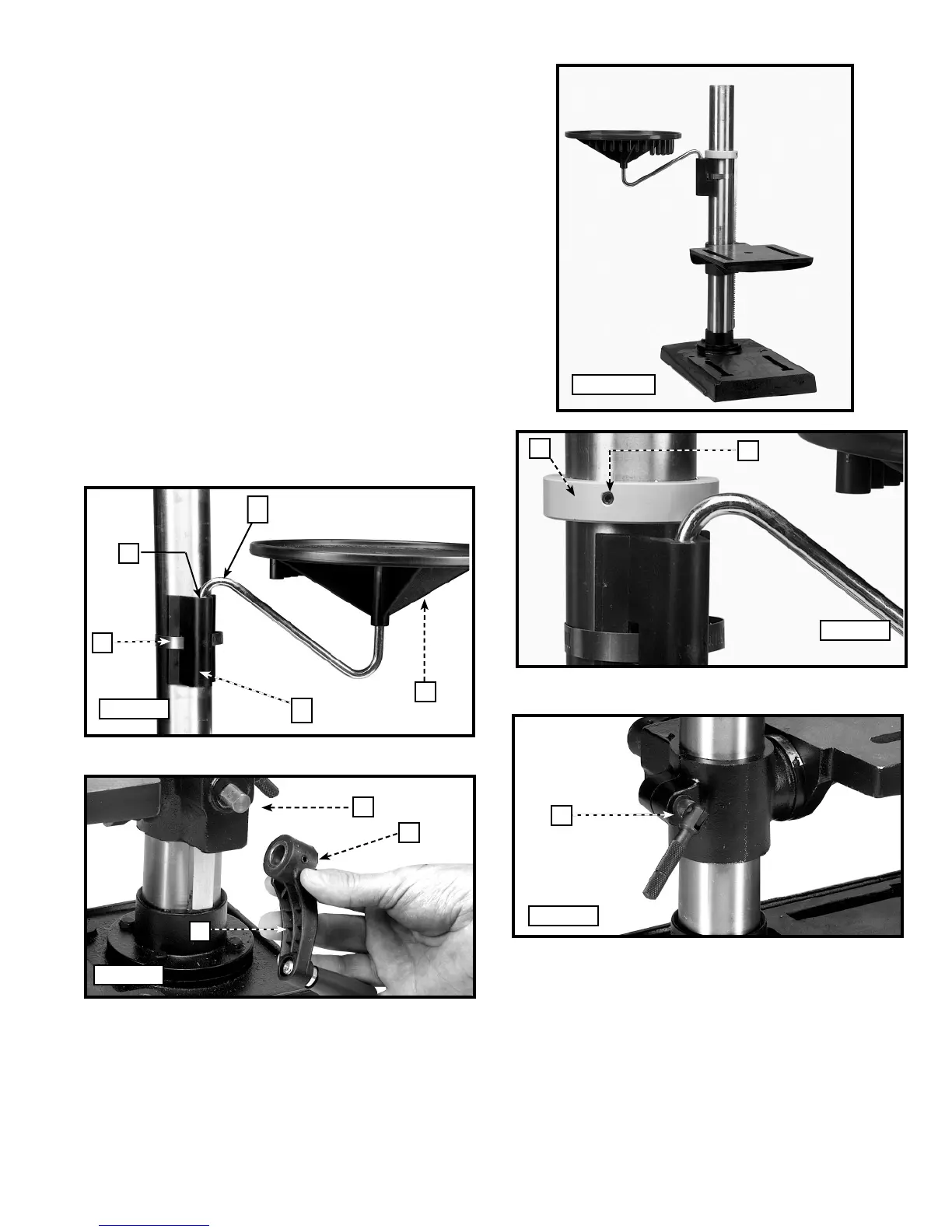

6. Insert the clamp (B) Fig. 10 through the mounting
bracket, under the raising rack, and around the
column. Tighten the hose clamp securely.
7. Assemble the mounting arm (C) into the bracket
hole (D) Fig. 10 and attach tray (T) to the mounting
arm.
8. Be sure the bracket, mounting arm and raising rack
are positioned in relation to the drill press table as
shown in Fig. 9.
9. Install the ring (E) Fig. 11 (removed in STEP 1) on
the column.
IMPORTANT: Place the raising rack under the bottom
of the ring, but allow enough clearance so that the rack
(F) can rotate around the column. Tighten the set screw
(D) Fig. 11.
10. Attach the table raising and lowering handle (K) Fig.
12 on the worm gear shaft (G) and tighten the set
screw (L) against the flat on the shaft.
11. Thread the stud of the clamp handle (M) Fig. 13 in
the hole in the rear of the table bracket.
A
B
Fig. 10
D
C
T
D
E
G
L
K
Fig. 11
Fig. 12
Fig. 9
Fig. 13
M
