12
EYE INJURY - LASER LIGHT. DO
NOT STARE INTO THE LASER BEAM
OR APERTURE OR INTO A REFLECTION FROM A
MIRROR-LIKE SURFACE.

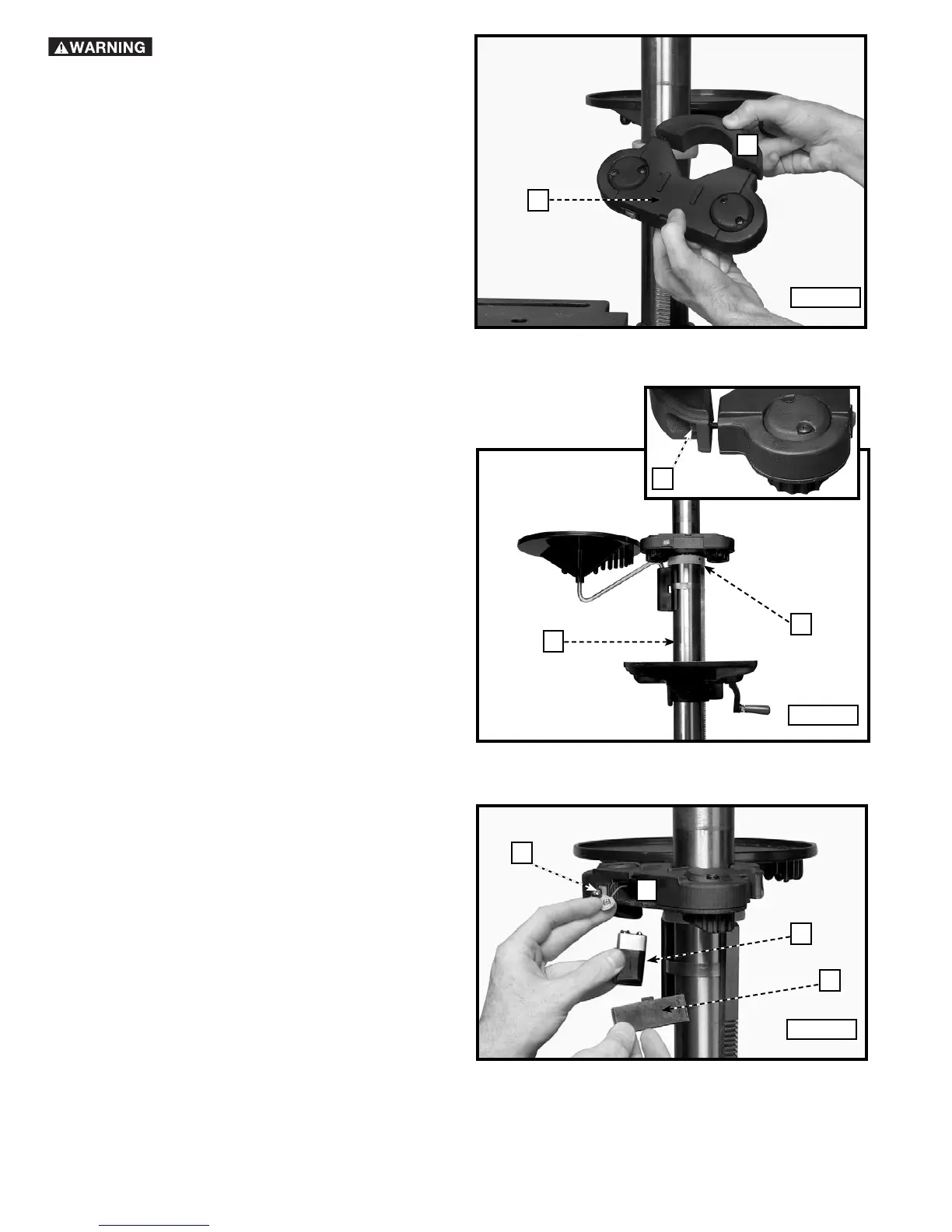

12. Screw front laser housing (A) Fig. 14 to the rear
laser housing (B) loosely using the two socket head
cap screws (C) Fig. 14A inset included in laser
packaging.
13. Place this laser housing assembly onto the drill
press column (D) Fig. 14A and rest it on the collar
(E) Fig. 14A.
14. Tighten the screws (C) Fig. 14A inset, making sure
the laser housing is positioned so that one laser is
to each side of the column (D), as shown in Fig 14A.
15. Remove battery cover (F) Fig. 14B from laser
housing.
16. Connect a 9-volt battery (G) (not included) onto the
battery terminal (H).
17. Place battery into the compartment (I) and replace
the cover.
Fig. 14B
Fig. 14
Fig. 14A
A
B
C
D
E
F
G
H
I
