Delta DTK Series User Manual

3

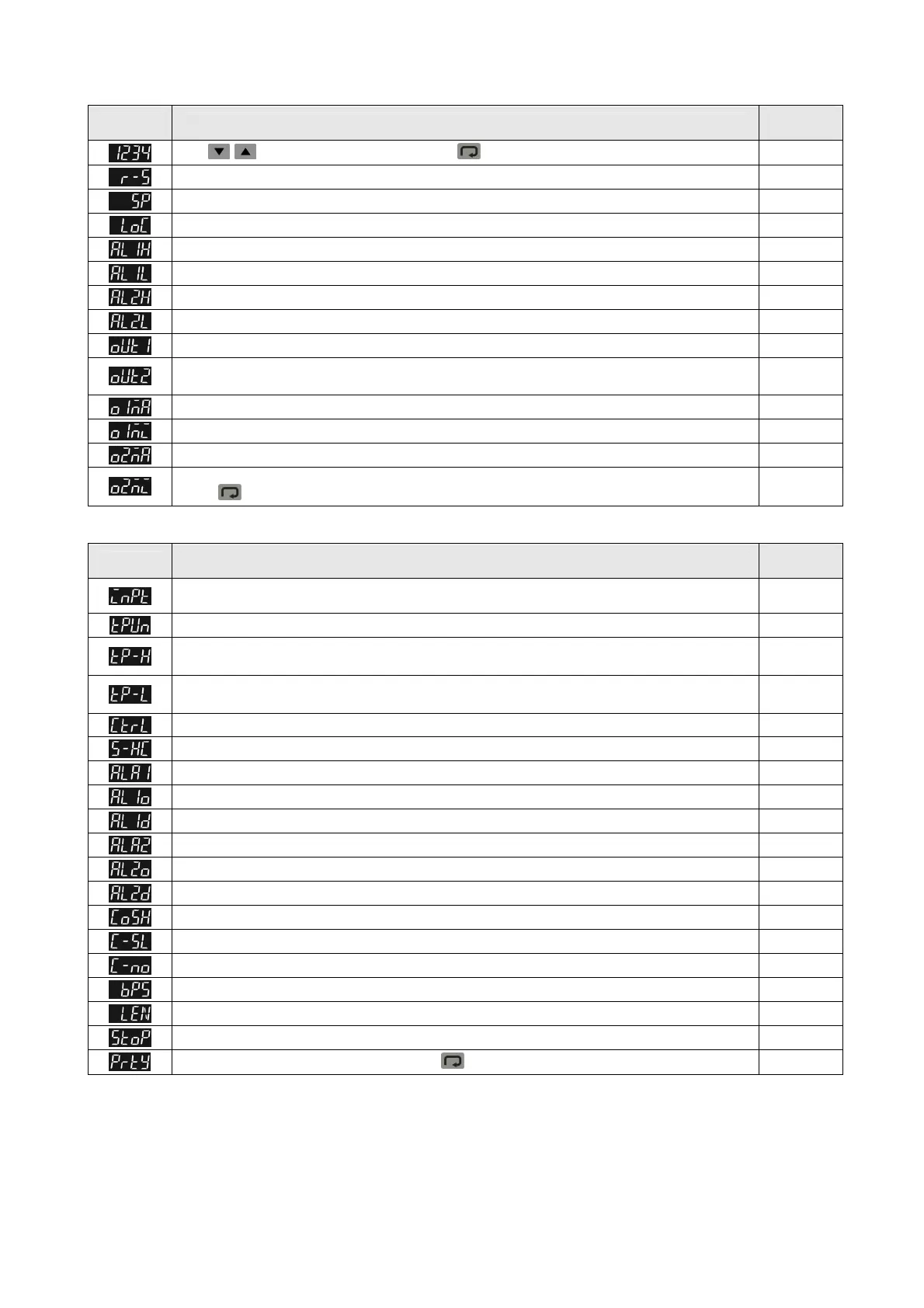

Parameter Settings for Operation Mode:
Display Description
Factory
Setting
Use
to set temperature set point. Press to switch between display parameters.
RUN/STOP: Control setting RUN/STOP RUN
SELECT POINT: Decimal point setting (0: integral; 1: one decimal point) 0
LOCK: Setting lock mode (LOCK1: all; LOCK2: only SV is allowed) OFF
ALARM1 HIGH: Upper limit alarm 1 (display according to the setting in ALARM mode) 4.0
ALARM1 LOW: Lower limit alarm 1 (display according to the setting in ALARM mode) 4.0
ALARM2 HIGH: Upper limit alarm 2 (display according to the setting in ALARM mode) 4.0
ALARM2 LOW: Lower limit alarm 2 (display according to the setting in ALARM mode) 4.0
OUT1: Display and adjust output value of 1st output group 0.0
OUT2: Display and adjust output value of 2nd output group
(display when OUT2 is set to Heating/Cooling Mode)
0.0
OUT1 MAX.: Upper limit % of 1st output group (perform linear calculation again) 100.0
OUT1 MIN.: Lower limit % of 1st output group 0.0
OUT2 MAX: Upper limit % of 2nd output group (display when OUT2 is set to Heating/Cooling Mode) 100.0
OUT2 MIN: Lower limit % of 2nd output group (display when OUT2 is set to Heating/Cooling Mode)
Press
to return to target temperature setting.
0.0
Parameter Settings for Initial Setting Mode:
Display Description
Factory
Setting
INPUT: Set input type (refer to "Temperature Sensor Type & Temperature Range Chart" for the selection
of Thermocouple or Platinum Resistance types.)
K
TEMP. UNIT: Set temperature unit Ԩ/Ԭ
Ԩ
TEMP. HIGH: Set up upper temperature limit
(the upper limit setting is different for different types of sensors)
1300
TEMP. LOW: Set up lower temperature limit
(the lower limit setting is different for different types of sensors)
-200
CONTROL: Select control modes (3 different modes: ON-OFF, PID, and MANUAL)
PID
SELECT HEAT/COOL: Select heating, cooling or dual-output heating and cooling.
H1
ALARM1 SET: Set up Alarm 1 mode (refer to "Alarm Outputs")
0
ALARM1 OPTION: Set up Alarm 1 options (refer to "Alarm Outputs")
0
ALARM1 DELAY: Set up Alarm 1 delay
0
ALARM2 SET: Set up Alarm 2 mode (refer to "Alarm Outputs")
0
ALARM2 OPTION: Set up Alarm 2 options (refer to "Alarm Outputs")
0
ALARM2 DELAY: Set up Alarm 2 delay
0
COMMUNICATION WRITE: Enable/disable communication write-in
NO
COMMUNICATION SELECT: Select ASCII or RTU format
ASCII
COMMUNICATION NO.: Set up communication address
1
BPS: Set up baudrate
9600
LENGTH: Set up data length
7
STOP: Set up stop bit
1
PARITY: Set up parity bit Press
to return to input type setting.
EVEN
