Chapter 6 Writing a Program
6-33

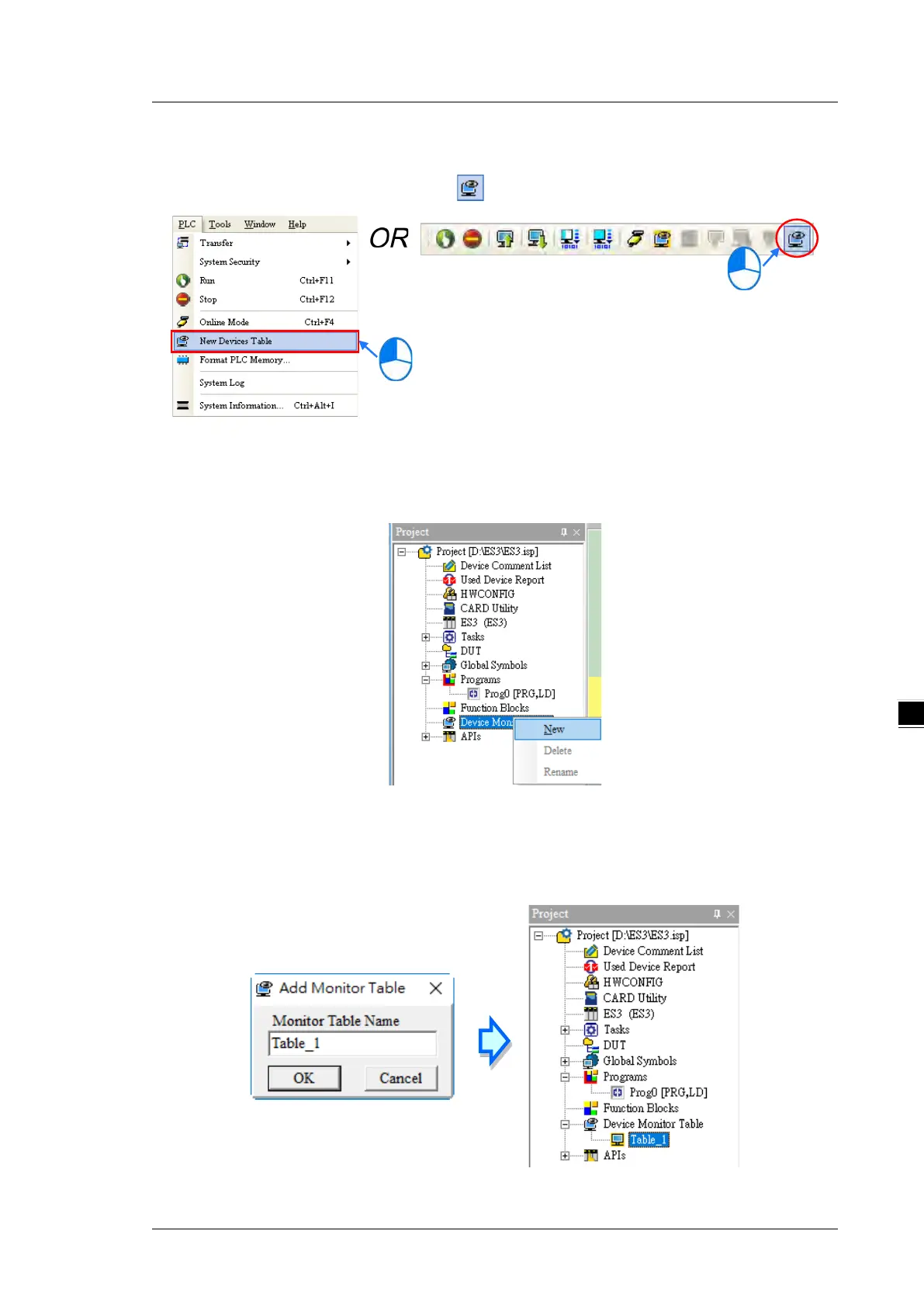

Method 1
On the PLC menu, click New Devices Table, or on the toolbar.
Method 2
Right-click Device Monitoring Table in the project management area, and click New.
Type a table name in the Add Monitor Table dialog box, and then click OK. An item appears under Device
Monitor Table in the project management area. Double-click the item to open the monitoring table. You can
create several monitoring tables in the project, and the monitoring tables are saved with the project.
