DVP-ES3 Series Operation Manual
4-26
_4

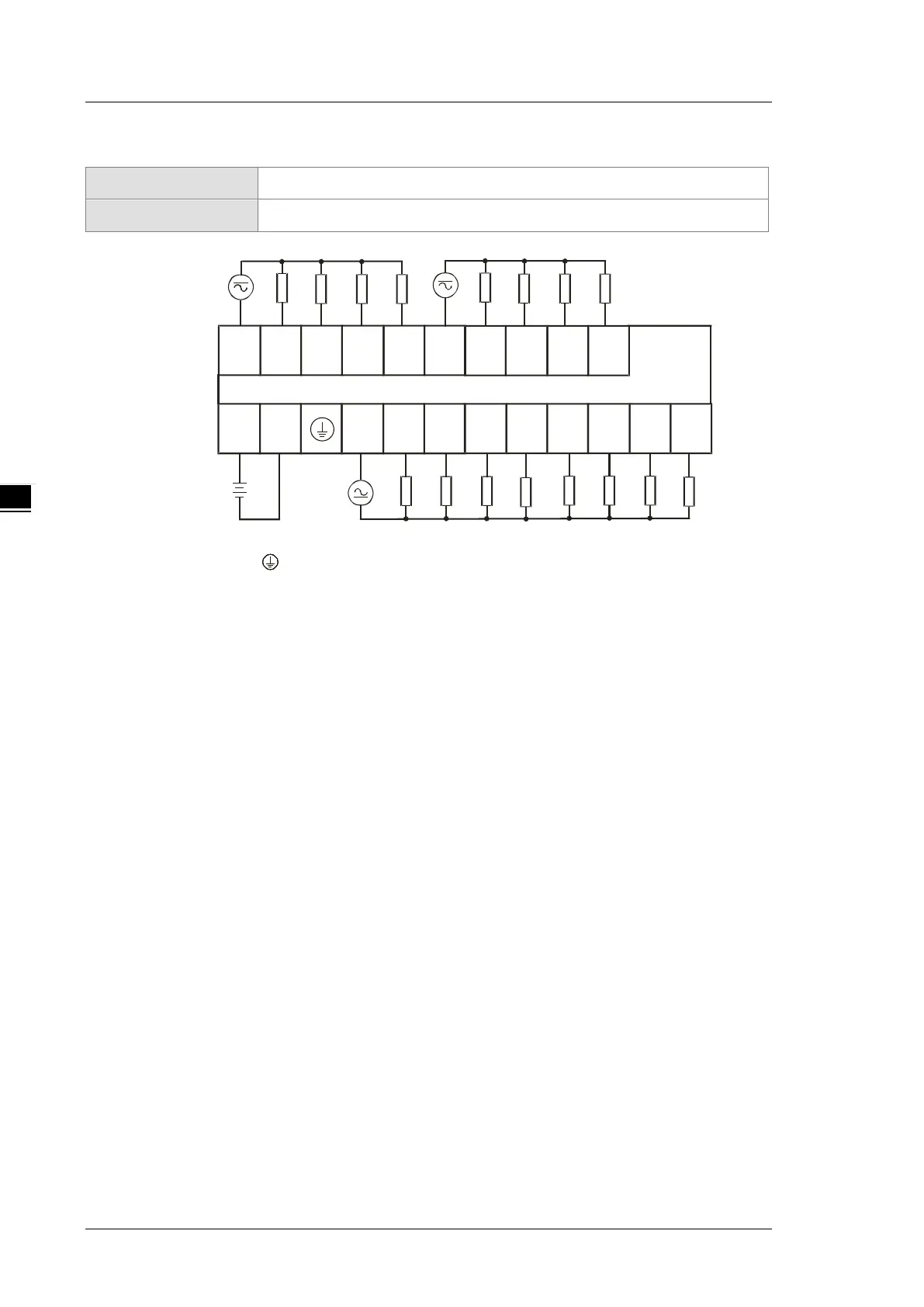

4.7.7 Wiring DVP16XN211R
Output type
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM
OUT
C0
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
C2 Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17
DVP16XN211R ( 1 6DO)
C1
24V 0V
Note: Connect the terminal to ground.
