Delta DVP-ES3 Series User Manual

Chapter 9 Ethernet Specification and Operation
9-35
9_

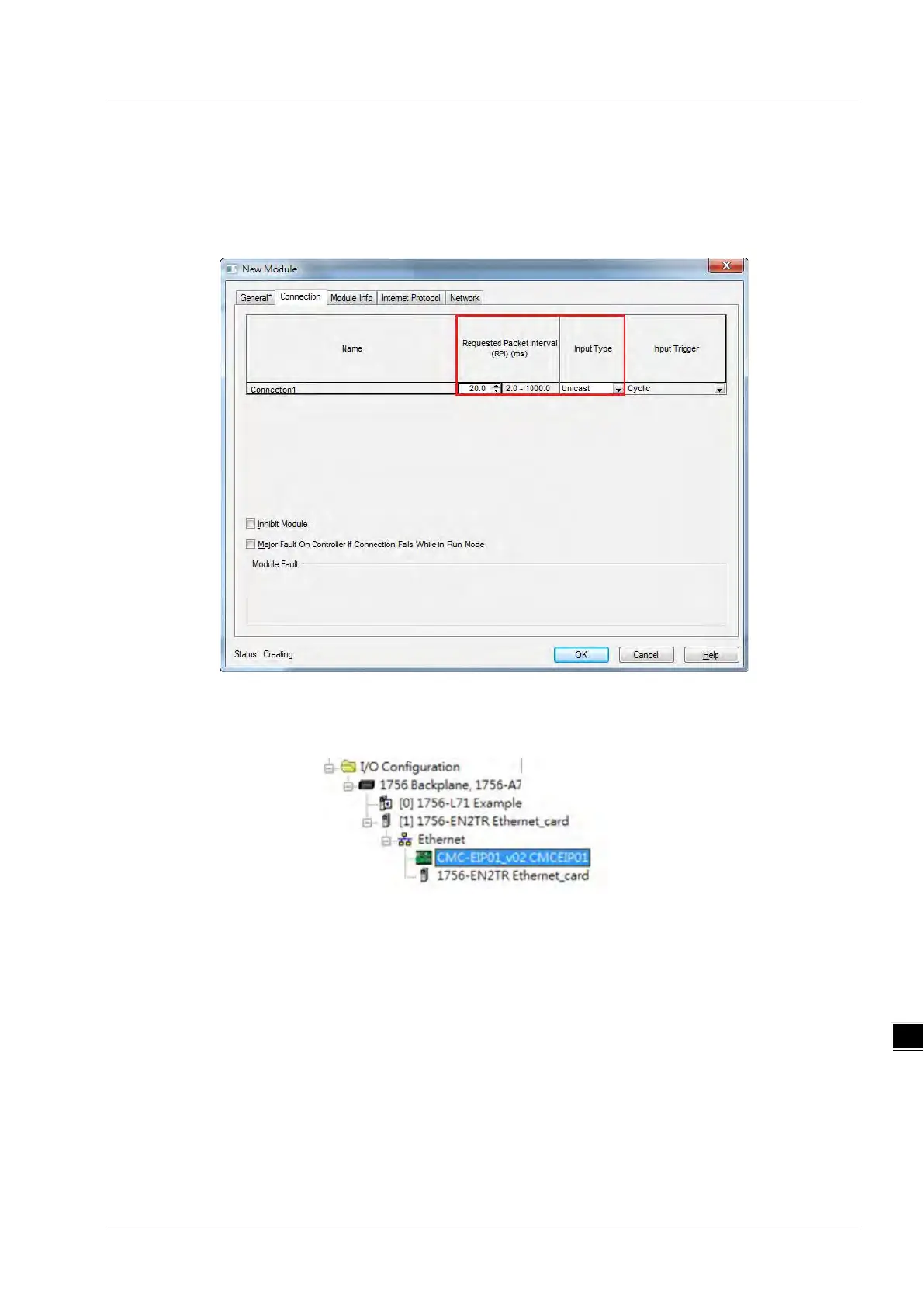

 In the New Module dialog box, click the Connection tab to modify the Requested Packet Interval and Input Type
settings. The RPI uses the I/O connection to a Scanner to exchange data at regular intervals, and the units are
micro-seconds. For Input Type select either Unicast or Multicast. The Input Type selections may vary for different
products.
 Click OK to create the adapter. The new Delta Adapter appears in the Controller Organizer tree.
9.6.4.3 Editing Corresponding Addresses for DVP-ES3
Refer to section 9.7.5 Assembly Object for defaults of mapping address. Refer to section 9.6.4.5 on how to open
Program TAG and modify the contents of TAG:C to edit the mapping addresses. Refer to section 9.7.5 Assembly Object
for details on TAG:C.
