If the length of data received is larger than the setting value for the length, the first 20 words of data are stored in
D100–D119, and the remainder of the data is discarded. Likewise, if the length of data received is less than the setting
value for the length, the data is stored in the devices starting from D100, and the values in devices where no new data
is stored are unchanged.
If no data is transmitted, and 60 seconds have elapsed, the CPU module closes the socket and terminates the
connection.
In the RTU Mapping table, you can set a Delta RTU-EN01 slave in connection with a DVP-ES3 Series module. The
remote device is controlled through Ethernet and you can connect up to 4 groups of RTU-EN01 in the network. Refer
to the operation manual for setting and operation of RTU-EN01.

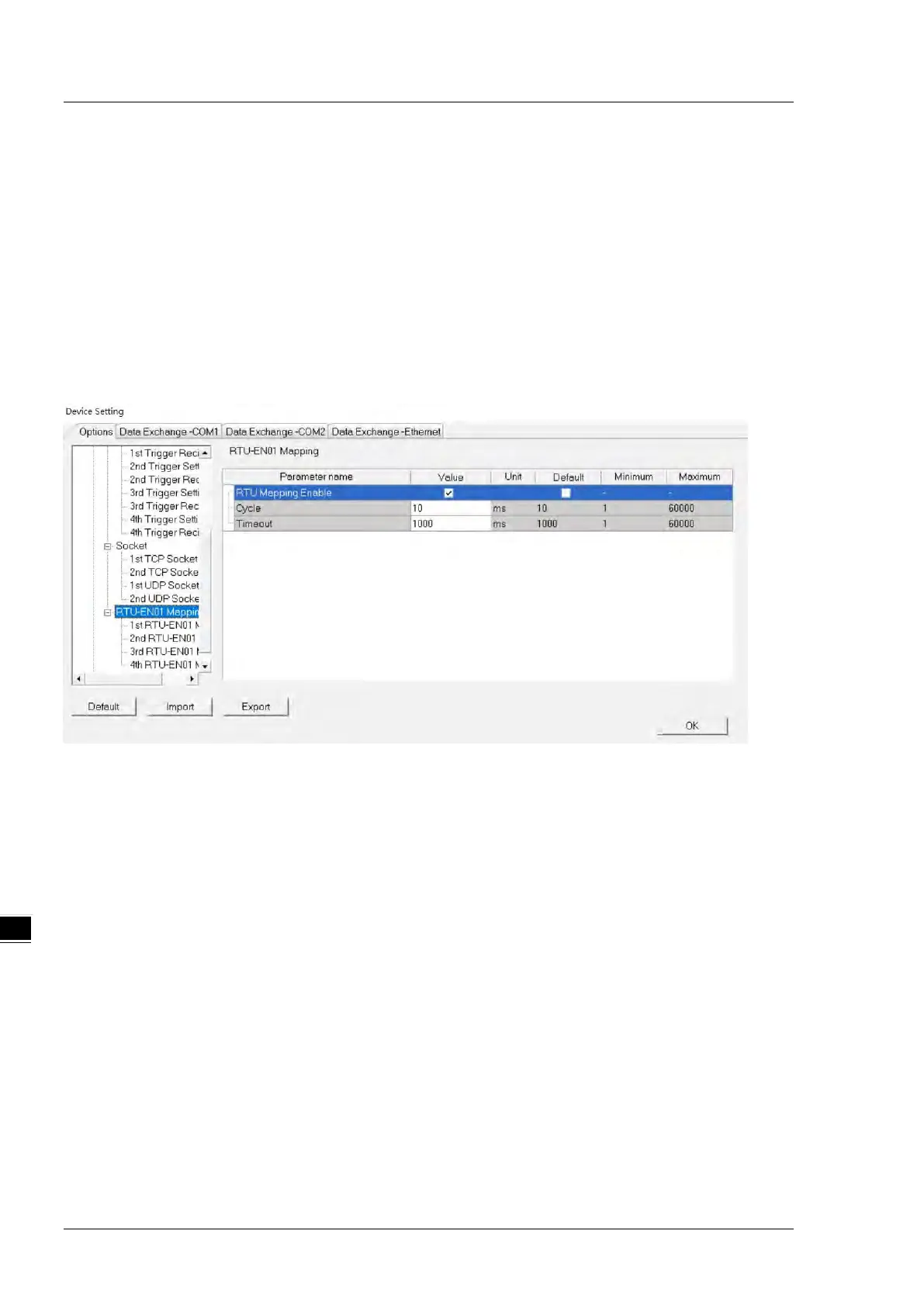

Select RTU Mapping Enable checkbox to enable the function of connection between RTU module and DVP-ES3
Series module. Set the update cycle in Cycle box and a timeout in Timeout box. It means a timeout when RTU does
not give a reply within the timeout set.
The data mapping between each group of RTU-EN01 and DVP-ES3 Series module is set in the RTU Mapping section.
RTU-EN01 and I/O module connected to it are set via DCISoft. For more information on DCISoft, refer to the operation
manual.
