Delta DVP-ES3 Series

DVP-ES3 Series Operation Manual
9-8
_9

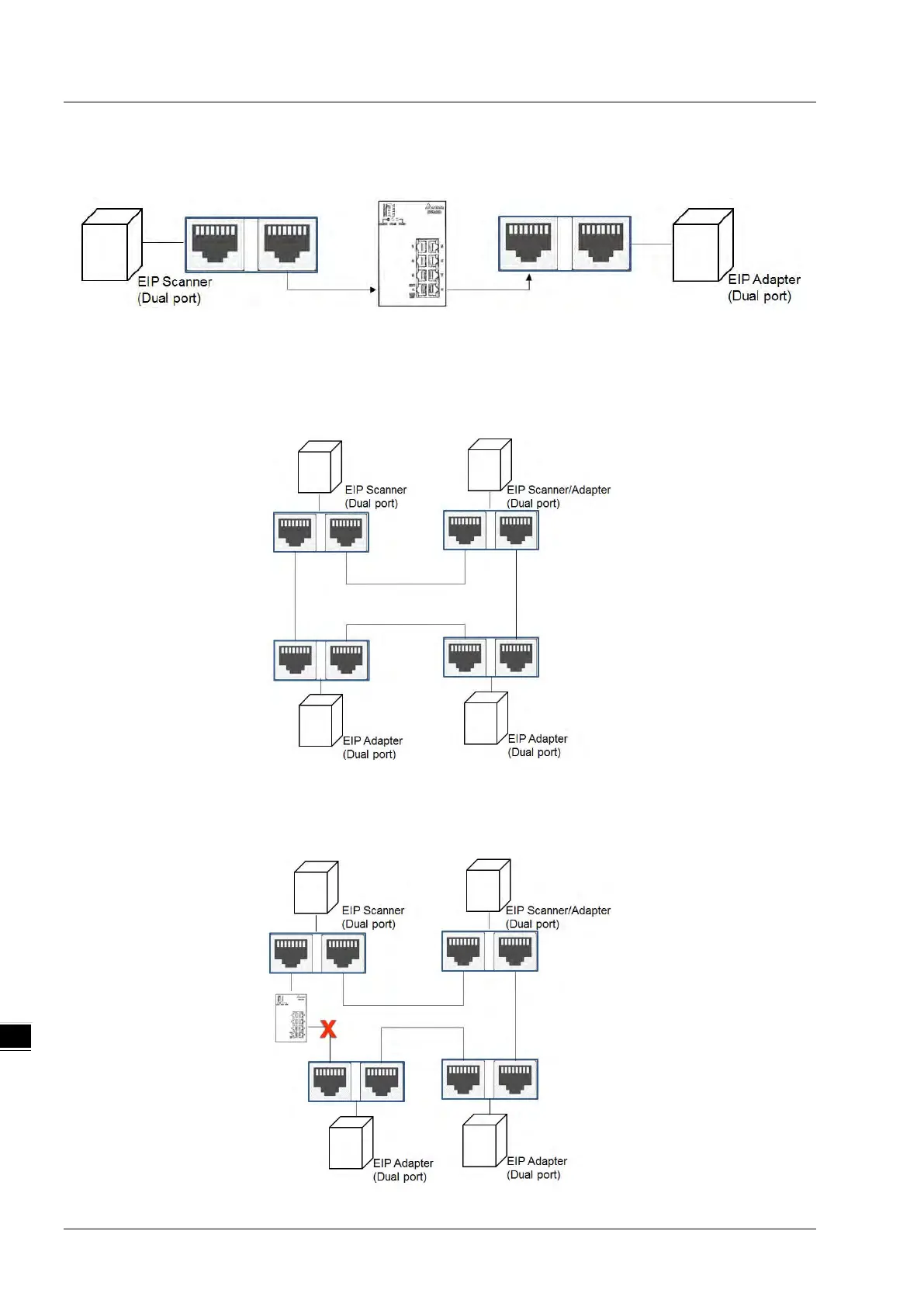

Star Topology
Rin
g Topology
A DLR function is required to create a ring topology. Refer to Section 9.8.2 for DVP-ES3 that support DLR.
When a switch is needed for the particular topology, the switch should support the DLR function. If not, the connection
might fail.
