Ethernet Communication Module DVPEN01-SL
DVP-PLC Operation Manual
16
3.
Y

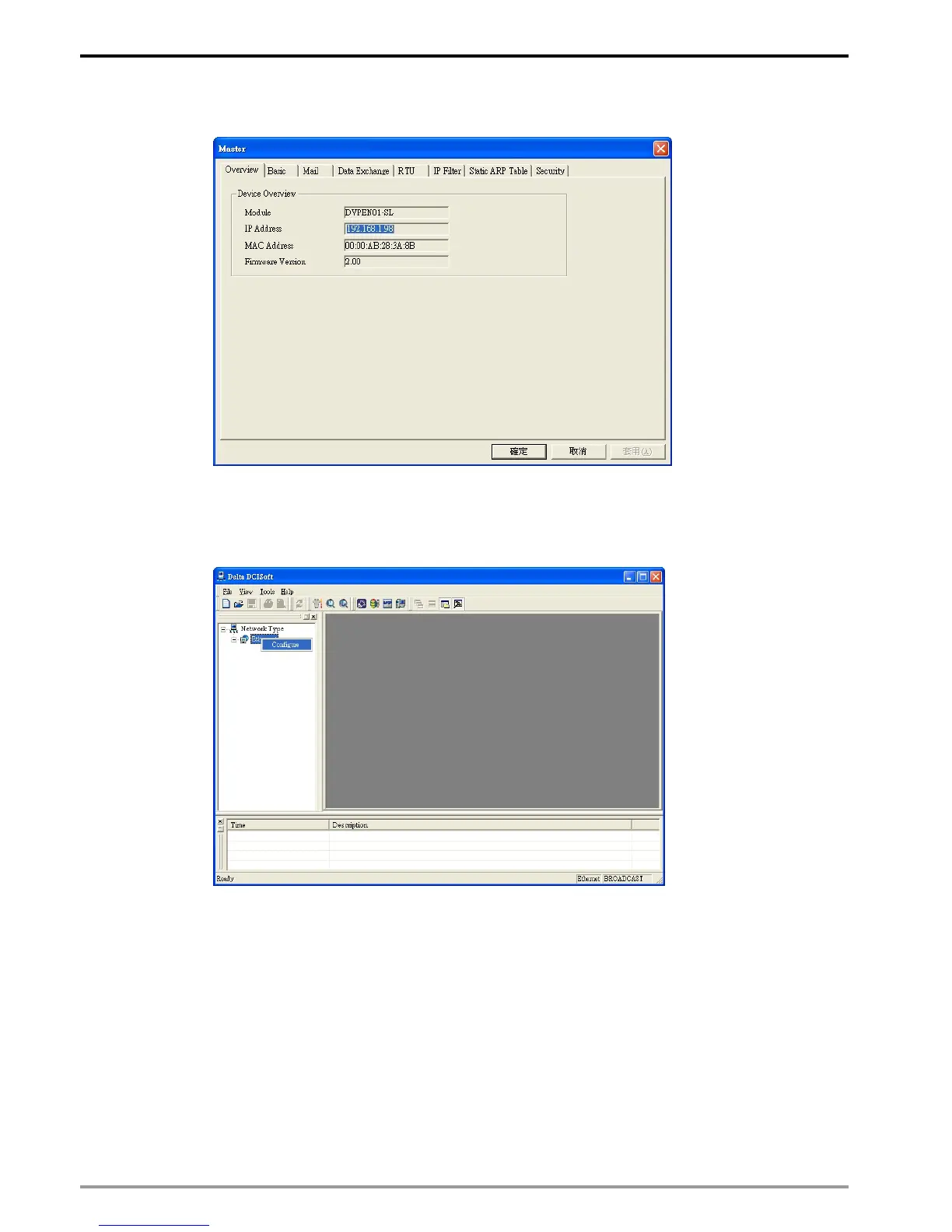

ou will see the basic setup page as follow
.
Designating model to search
1.
Right click “Et
hernet” on the left hand side windo
w and select “Configure” to desi
gnate a model to
search for
.
17
19
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
5
Functions
5
Specifications
5
2 Product Profile & Outline
6
Dimension
6
Product Profiles
6
LED Indicators
7
PIN Definition
7
3 Installation & Wiring
7
Installation
7
4 Control Register (Cr)
8
Control Registers in DVPEN01-SL
8
Explanations on CR
10
Numbering of Left-Side Modules
15
5 Setting up Software
16
Setting up Communication & Searching for Modules
16
Basic Settings
22
Network Settings
23
Setting up E-Mails
26
Data Exchange
27
Rtu
28
IP Filter
29
Static ARP Table
29
Setting up Password
30
5.10 Returning to Default Setting
31
6 Application Examples
32
Setting up IP and Communicating through Wplsoft
32
Connecting the PC with DVPEN01-SL through LAN
35
Setting up Password and Clearing Password
39
When the Password Is Lost (Returning to Default Setting by RS-232)
41
IP Filter Protection
42
Setting up Static ARP Table
44
Application of E-Mail
46
Application of Data Exchange (1)
47
Application of Data Exchange (2)
50
Application of Data Exchange (3)
51
Application of Data Exchange (4)
52
Application of Data Exchange (5)
54
6.13 Application of Modbus TCP Master
55
6.14 RTU Mapping
56
