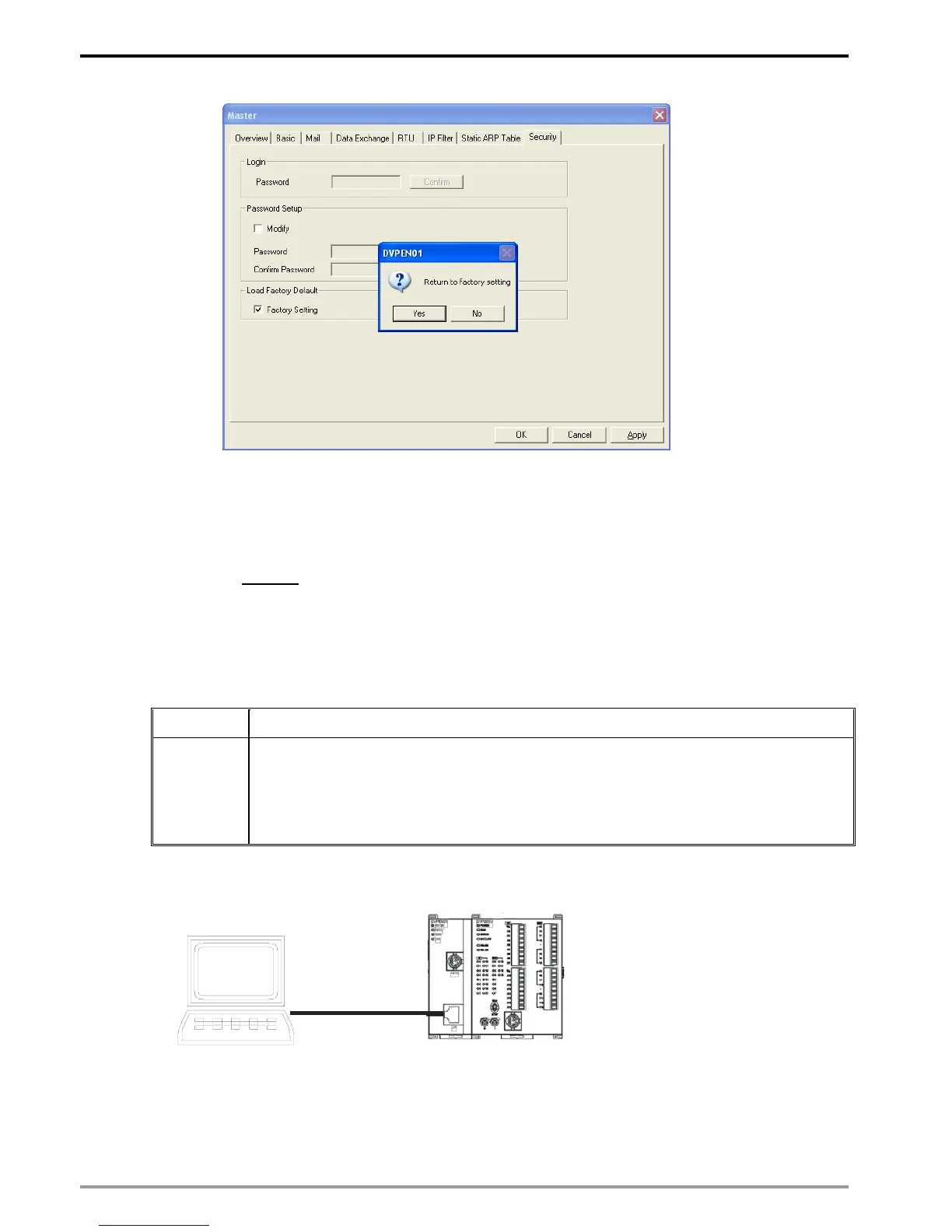

Check “Default Setting” box and click on “Yes”.
Note:
If you set up DVPEN01-SL by RS-232, you can return the setting to default setting whether
the password is locked or not. It takes approximately 10 seconds to return to default setting,
so DO NOT
switch off the power within the 10 seconds.
6 Application Examples
6.1 Setting up IP and Communicating through WPLSoft
Application Setting up network parameters of DVPEN01-SL directly on the PC.
Network
requirement
(1) IP of PC executing WPLSoft: 192.168.0.3
(2) Subnet mask: 255.255.255.0; Gateway: 192.168.0.1
(3) IP of DVPEN01-SL: 192.168.0.4
(4) Connect the PC and DVPEN01-SL by RJ-45 cable.
Note: Both PC and DVPEN01-SL have to adopt static IP.
1. The connection
PC
DVP-PLC
DVPEN01
2. Open "Communication Setting” in WPLSoft.
