Ethernet Communication Module DVPEN01-SL
DVP-PLC Operation Manual
4
Item Specification
Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)
Vibration/ Shock Resistance Standard: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)
Electrical specifications
Item Specification
Power supply voltage 24VDC (-15% ~ 20%) (Power is supplied by the internal bus of MPU.)
Power consumption 1.5W
Insulation voltage 500V
Weight (g) 92 (g)

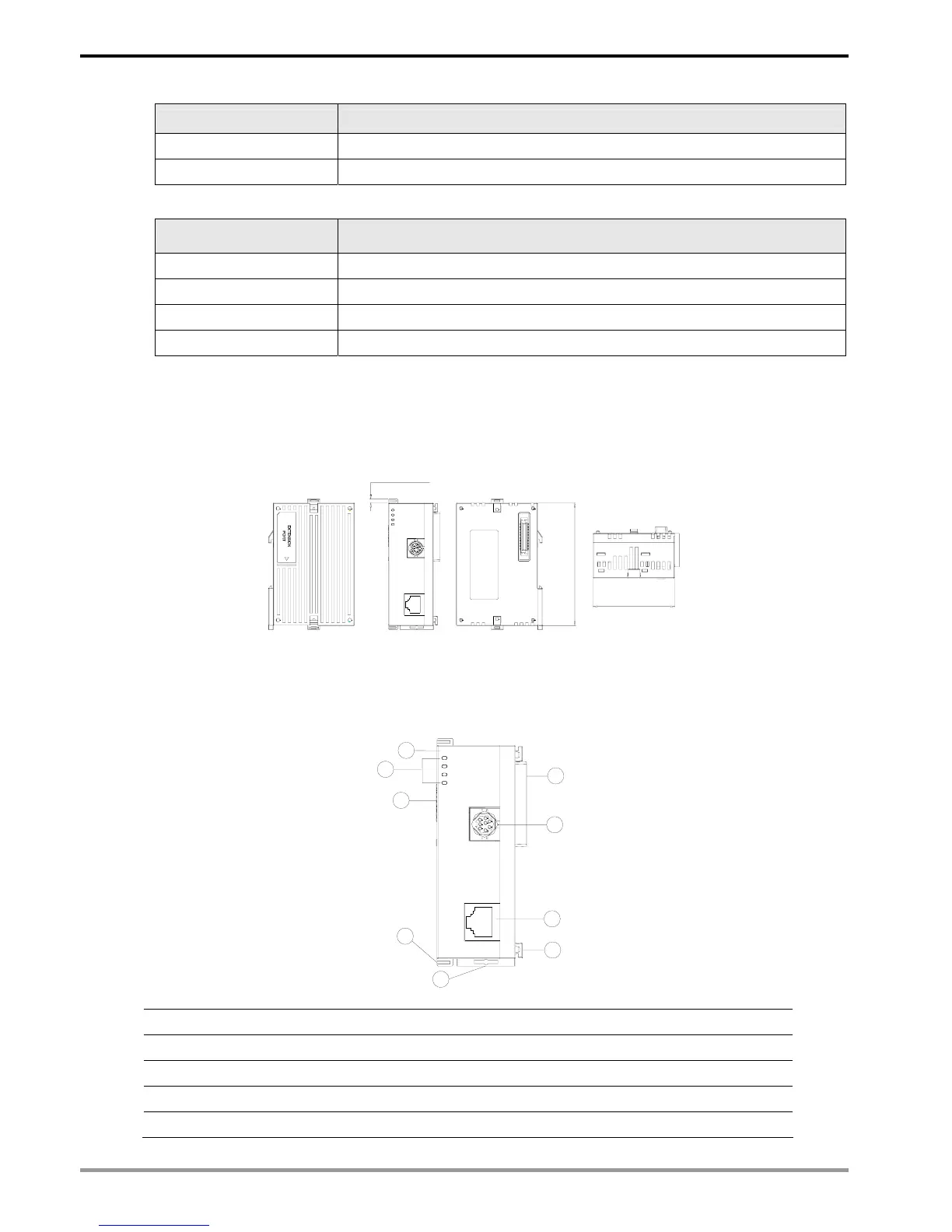

2 Product Profile & Outline
2.1 Dimension
LAN
RS-232
LINK
DVPEN01
RS-232
POWER
100M
60 [2.362]
90 [3.543]
3 [0.118]
Unit: mm [inches]
2.2 Product Profiles
LAN
RS-232
LINK
DVPEN01
RS-232
POWER
100M
1
4
3
7
5
6
9
8
2
1. Model name 6. Fixing tenon for I/O module
2. Extension port to connect device 7. Fixing clip for I/O module
3. Extension port to connect I/O module 8. RS-232 connection port
4. POWER, LINK, RS-232, 100M indicators 9. Ethernet RJ-485 connection port
5. DIN rail clip
