Ethernet Communication Module DVPEN01-SL
DVP-PLC Operation Manual
46
1. See 6.1 for how to set up the communication.

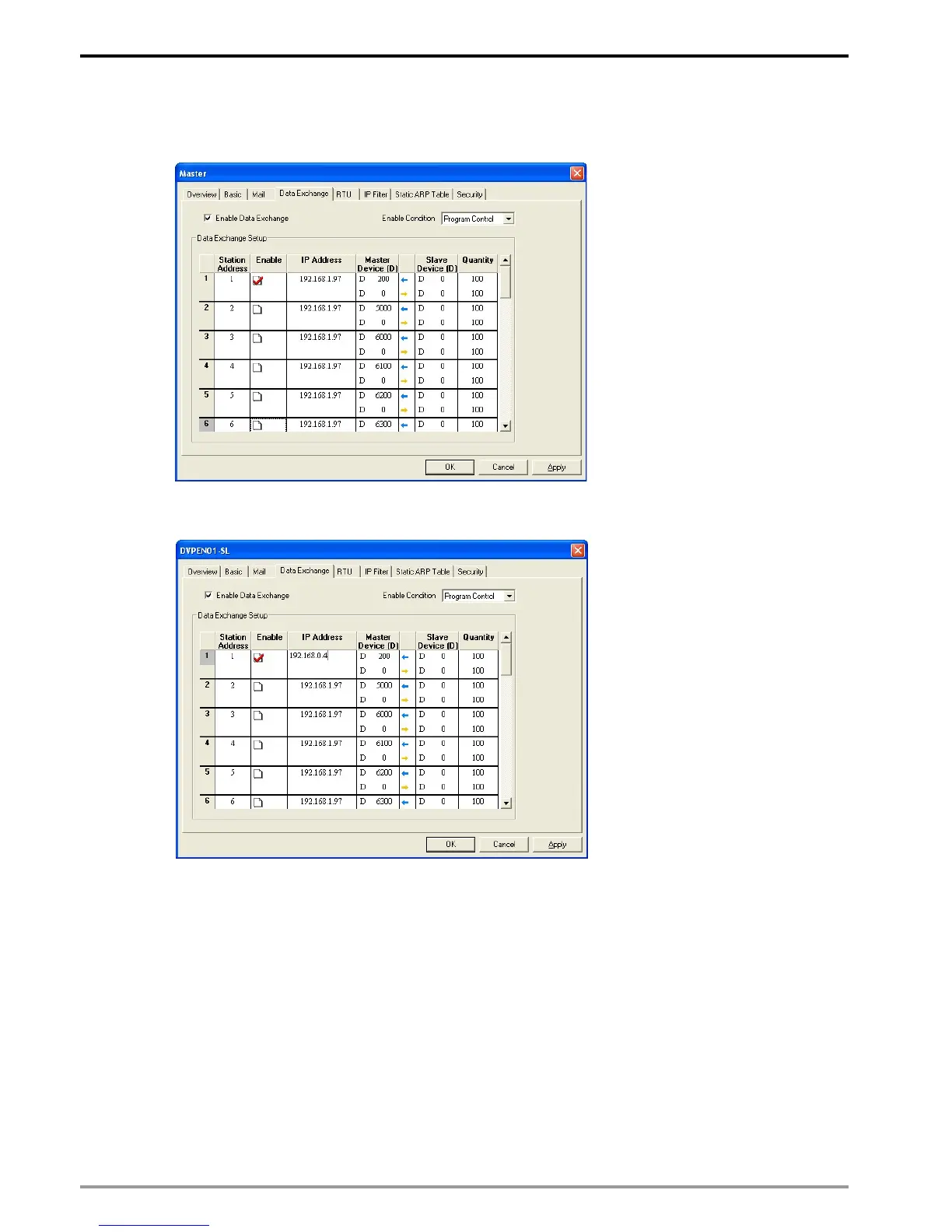

2. Open the setup page of PLC_B and switch to “Data Exchange” page.
3. Check “Enable Data Exchange” box. Select “Program Control” for Execute Mode. Enter IP address of
PLC_A “192.168.0.4” in No. 1 Data Exchange Host IP column. Click on “OK” to complete the setting.
4. After all the settings in PLC
B are completed, compile the ladder diagram in the MPU and download it
to PLC_B. See below for the program design:
