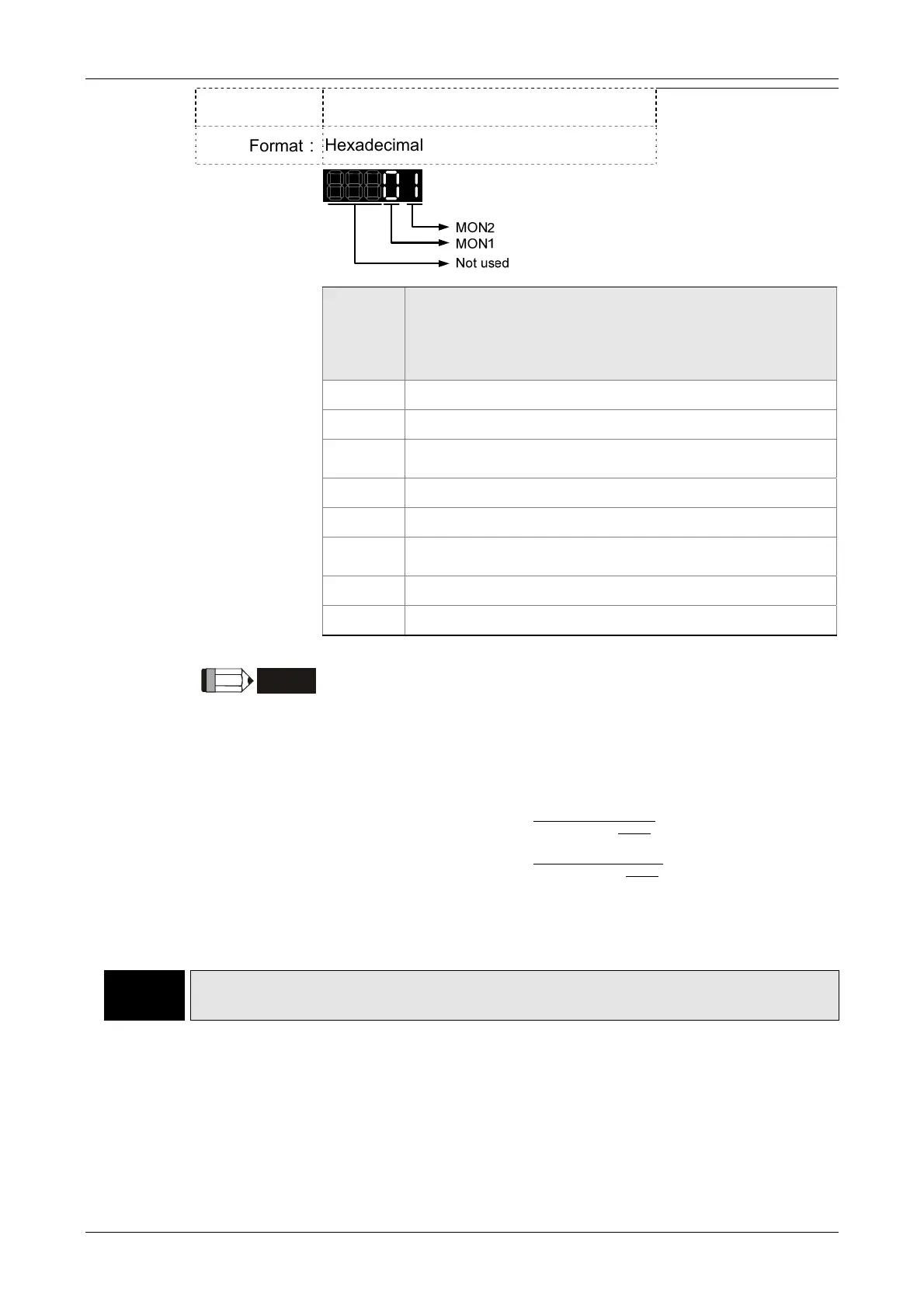

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-19
Data Size：
16-bit
Format：
Hexadecimal
Settings：
MON1,
MON2
Setting
Value
Description
0 Motor speed (+/-8 Volts/Max. speed)
1 Motor torque (+/-8 Volts/Max. torque)
2
Pulse command frequency (+8 Volts／4.5Mpps)
3 Speed command (+/-8 Volts/ Max. speed command)
4 Torque command (+/-8 Volts/Max. torque command)
5
VBUS voltage (+/-8 Volts／450V)
6 Reserved
7 Reserved
NOTE
Please refer to parameter P1-04, P1-05 for proportional setting of
analog output voltage.
For example: P0-03 = 01 (MON1 is the analog output of motor
speed; MON2 is the analog output of motor torque)
MON1outputvoltage 8
.
(unit：Volts)
MON2outputvoltage 8
.
(unit: Volts)
P0-04■ ~
P0-07■
Reserved
