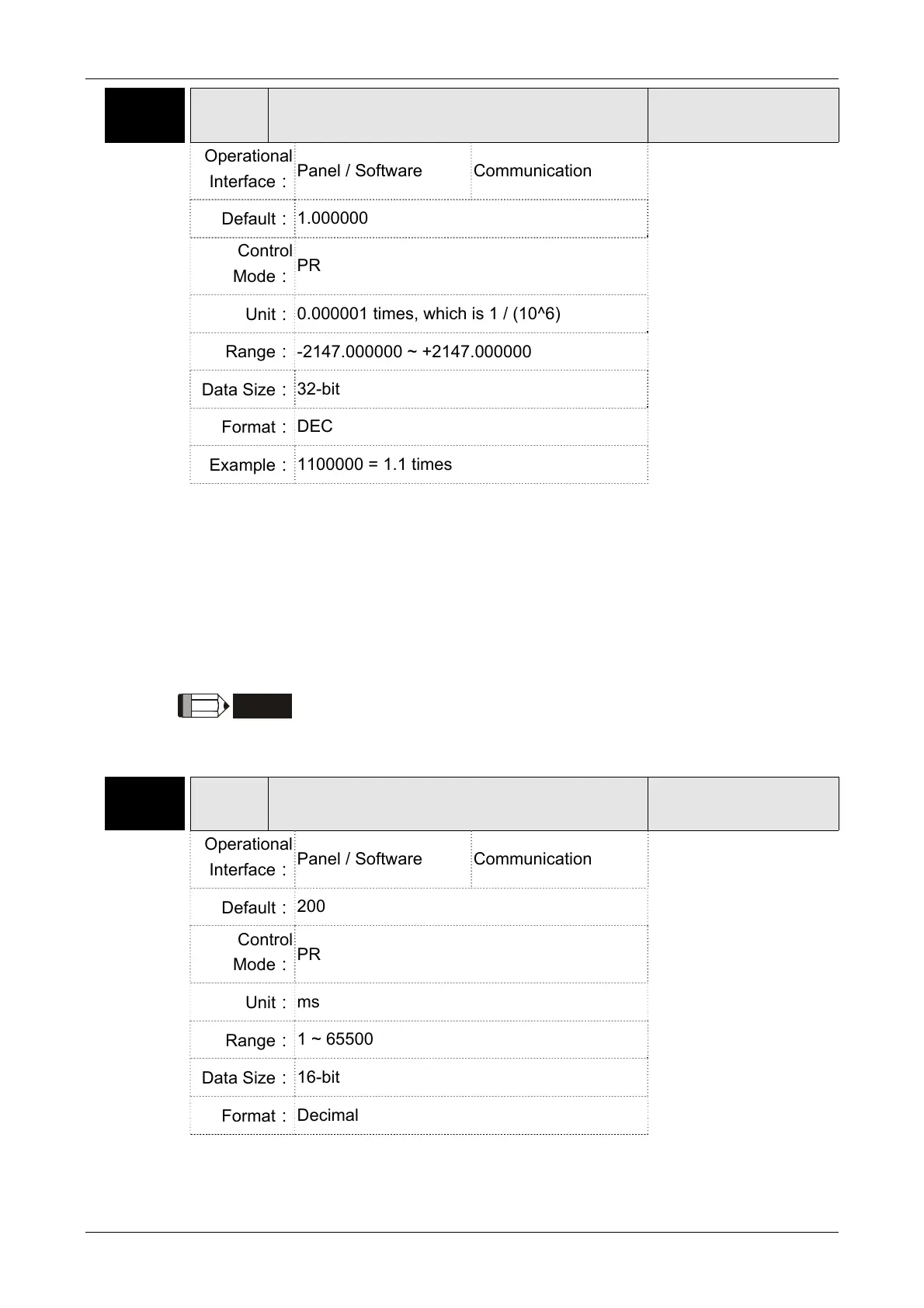

Chapter 8 Parameters ASDA-A2
8-170 Revision February, 2017
P5-19 TBS E-Cam Curve Scaling
Address: 0526H
0527H
Operational
Interface：
Panel / Software Communication
Related Section: -
Default：
1.000000
Control
Mode：
PR
Unit：
0.000001 times, which is 1 / (10^6)
Range：
-2147.000000 ~ +2147.000000
Data Size：
32-bit
Format：
DEC
Example：
1100000 = 1.1 times
Settings：
(It will be provided after firmware version V1.017)
This parameter is used to magnify or minify the E-Cam table without
changing its setting value.
For example, the data in the table is 0,10,20,30,40,20, magnification x
2.000000 equals to the data in the table: 0,20,40,60,80,40,
magnification x 1.000000.
Enable the operation of E-Cam by using the same pulse frequency of
the master axis. Magnify the magnification will enlarge the route of E-
Cam operation. The speed will be magnified as well.
NOTE
This parameter can be set anytime, but will be effective only when pre-
engaged → engaged.
P5-20 AC0 Acceleration/Deceleration Time (Number #0)
Address: 0528H
0529H
Operational
Interface：
Panel / Software Communication
Related Section:
7.10
Default：
200
Control
Mode：
PR
Unit：
ms
Range：
1 ~ 65500
Data Size：
16-bit
Format：
Decimal
Settings：
The setting time of acceleration/deceleration in PR mode, which is the
time it needs when accelerating from 0 to 3000r/min
