Chapter 8 Parameters ASDA-A2
8-286 Revision February, 2017
Setting Value: 0x39
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV1 Event trigger command #1 (Refer to the setting of P5-98, P5-99) Rising
/Falling
edge
triggered
PR
Setting Value: 0x3A
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV2 Event trigger command #2 (Refer to the setting of P5-98, P5-99) Rising
/Falling
edge
triggered
PR
Setting Value: 0x3B
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV3 Event trigger command #3 (It is provided after firmware version
V1.008 sub04.)
Rising
/Falling
edge
triggered
PR
Setting Value: 0x3C
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV4 Event trigger command #4 (It is provided after firmware version
V1.008 sub04)
Rising
/Falling
edge
triggered
PR

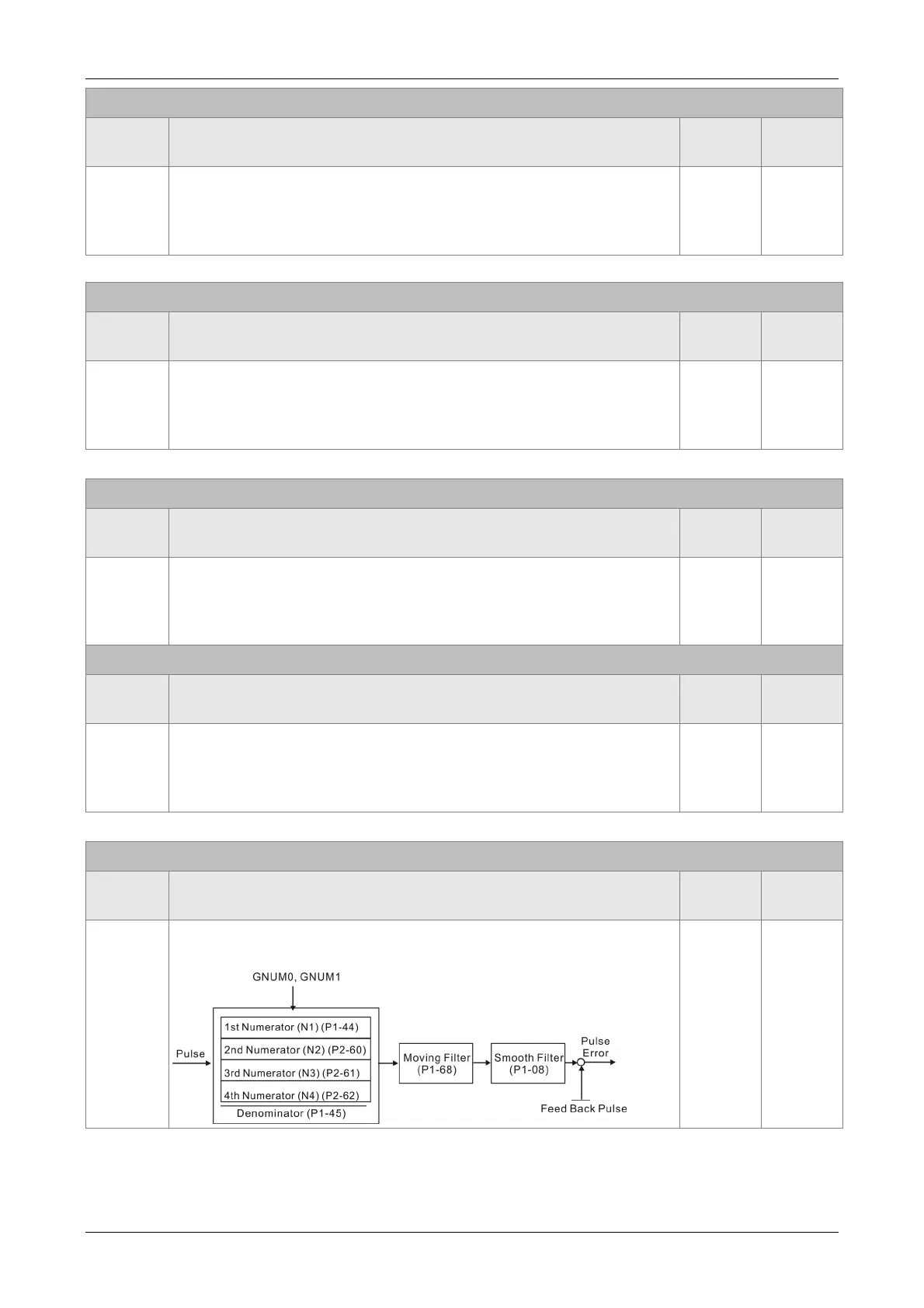

Setting Value: 0x43, 0x44
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
GNUM0
GNUM1
Gear Ratio Selection 0 (Numerator)
Gear Ratio Selection 1 (Numerator)
Level
triggered
PT
