ASDA-A2 Chapter 12 Absolute System
12-20 Revision February, 2017
The setting in P2-70 with digital inputs/outputs communication can be used to read PULSE number
or PUU data with below signal communication sequence.

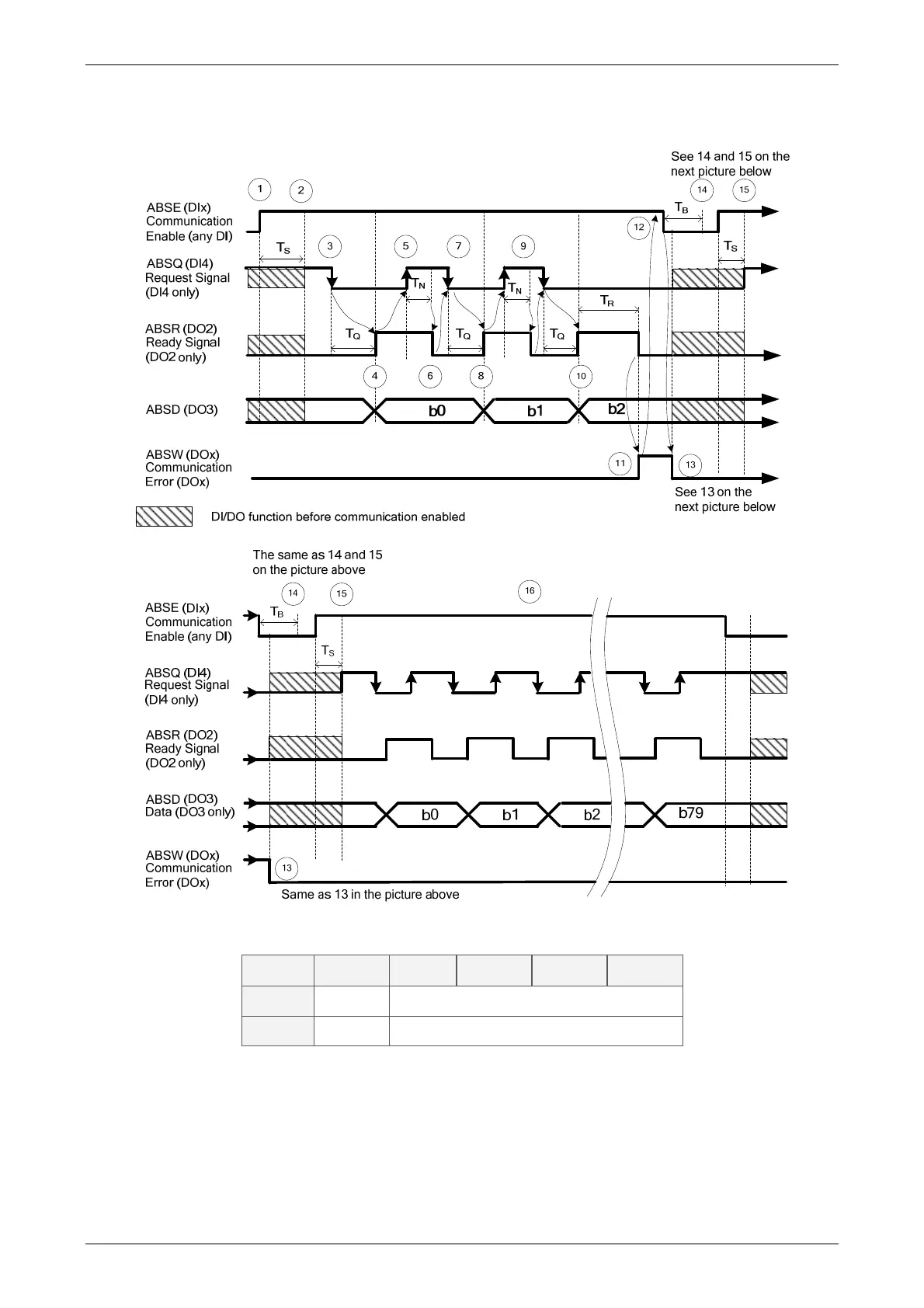

Figure 12.4 Timing of using digital inputs/outputs to read absolute data
T
R(ms)
T
S(ms)
T
Q(ms)
T
N(ms)
T
B(ms)
Min - P2-09+2
Max 200 P2-09+10
