12
Fig. 24D
Fig. 24C
Fig. 24F
Fig. 24E
Fig. 23

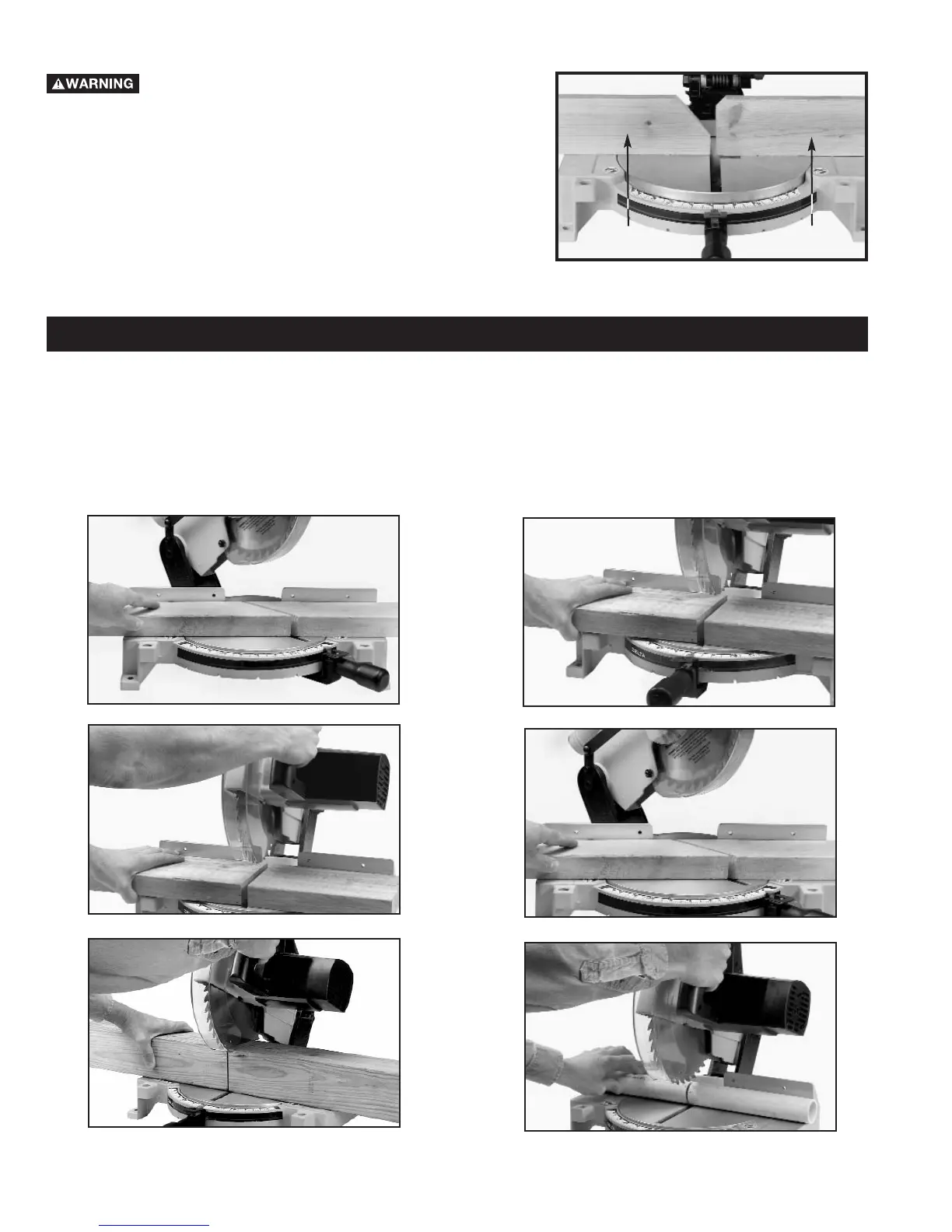

AUXILIARY WOOD FENCE
When performing multiple or repetitive cut-off
operations that result in small cut-off pieces, one inch
or less, it is possible for the saw blade to catch the cut-off pieces
and project them out of the machine or into the blade guard and
housing, possibly causing damage or injury. To limit the possibility
of personal injury or blade guard damage, an auxiliary wood fence
can be mounted to your saw.
Holes are provided in the fence to attach an auxiliary fence (A) Fig.
23. This auxiliary fence is constructed of straight wood
approximately 1/2" thick by 3" high by 20" long.
A
A
1. Your machine has the capacity to cut standard 2 x 4’s lying flat or on edge, at the 45 degree right and left miter angles
(Figs. 24A and 24B).
2. A standard 2 x 6 can be cut in the 90 degree straight cut-off position in one pass (Fig. 24C) or at 45 degree right
or left miter angles (Figs. 24C and 24D).
3. Cutting a standard 4 x 4 can be accomplished with one pass (Fig. 24E).
4. Cutting various sizes of plastic pipe is an easy job with this machine (Fig. 24F).
Fig. 24A
Fig. 24B
GENERAL CUTTING OPERATIONS
