Delta RPI-H5 User Manual

A.1 Multi-function relay output connection
The Dry contact connection provides a remote indication of inverter status. When inverter
operated in the normal condition, the dry contact is closed. User can use the Monitor modbus
SW tool, the multi-function relay will be configured as mentioned event setting. Please refer
to Figure A-1

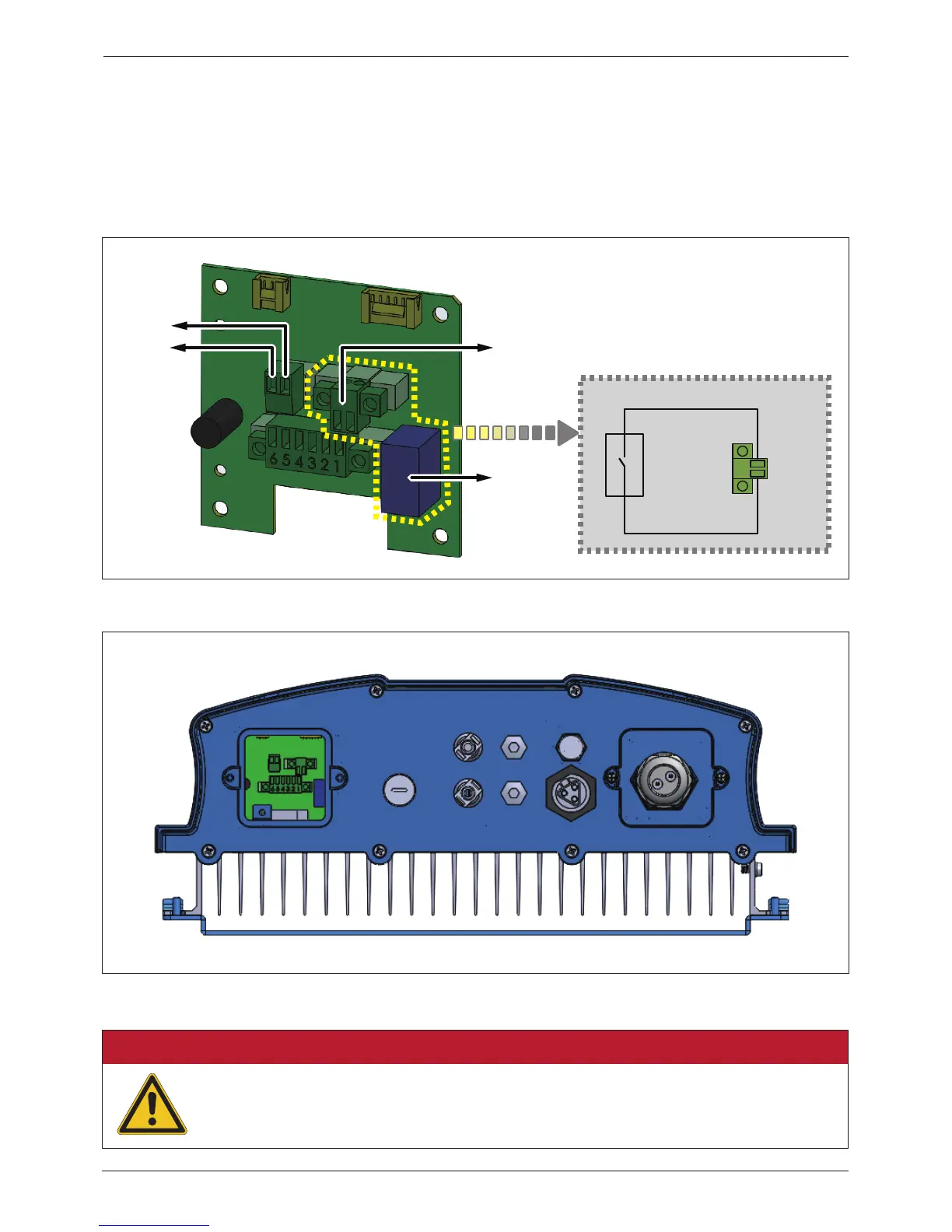

Figure A-1 : Multi-function relay on Dry contact
Danger! Hazard of Electric shock.
Touching electronic components can damage components through
electrostatic discharge.
Figure A-2 : Dry contact location
Relay
Dry
contact
Equivalent circuit
Dry contact
12V
GND
Relay
57
Appendix A

Delta RPI-H5 Specifications

General

Brand	Delta
Model	RPI-H5
Category	Inverter
Language	English
