4" BELT / 6" DISC SANDER PARTS
Fig. 1A
Fig. 1B
1

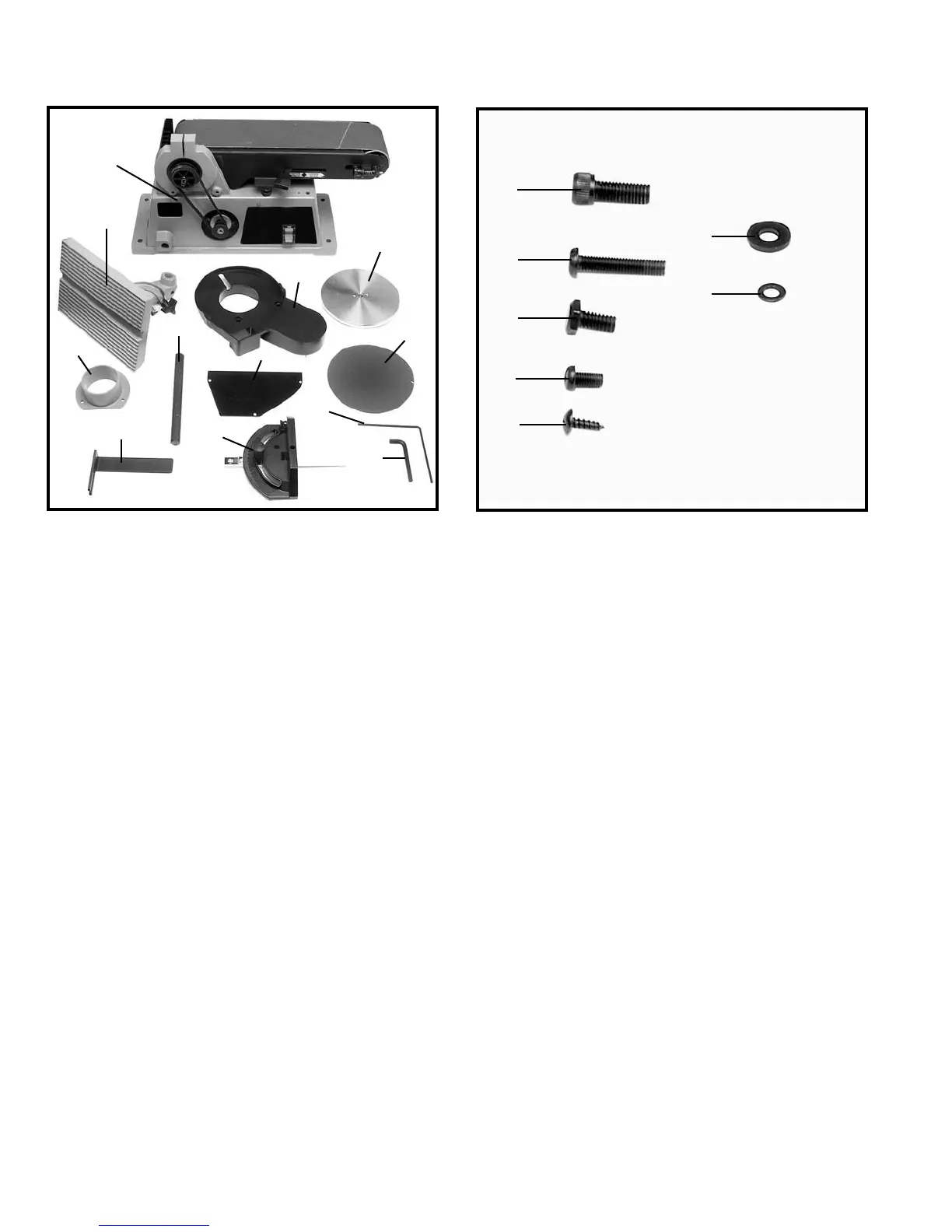

Fig. 1A Sander Parts
1. Motor and Base
2. Disc Table
3. Belt and Pulley Guard
4. Disc Plate
5. Dust Chute
6. Support Rod
7. Lower Disc Guard
8. Sanding Disc
9. Backstop
10. Miter Gage
11. 1/8" Hex Wrench
12. 6mm Hex Wrench
Fig. 1B Hardware
1. M8x1.25x20mm Hex Socket Head Screw (3)
2. M6x1x30mm Cheese Head Screws (2)
3. 1/4-20x1/2" Hex Head Screw (1)
4. M5x.08x10mm Pan Head Screw (3)
5. M4x.7x12mm Sheet Metal Screw (3)
6. 5/16" Flat Washer (1)
7. M5.3 Flat Washer (3)
