9

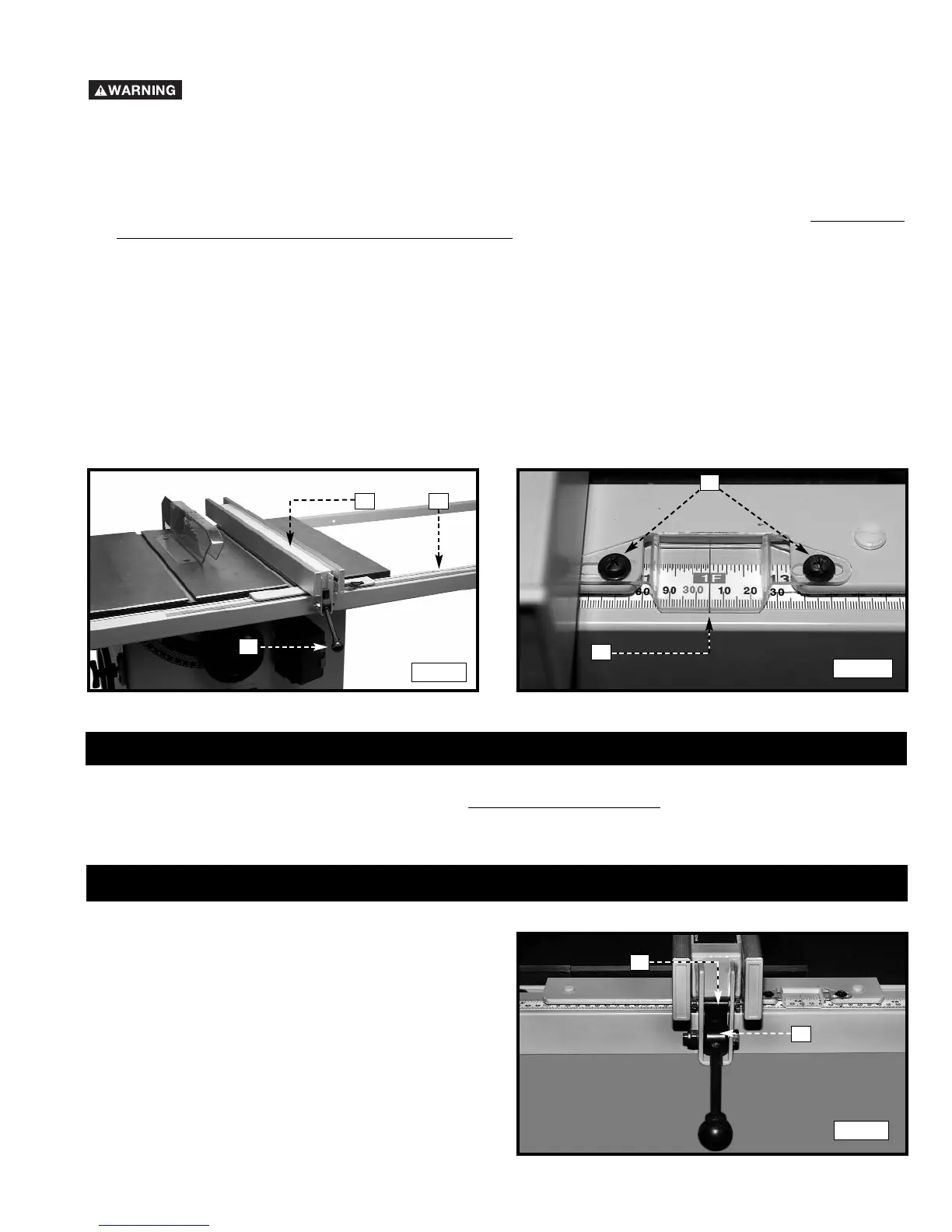

The distance the fence is positioned away from the blade is indicated by the pointer (C) Fig. 16. If it is necessary to
adjust the pointer (C), make a test cut with the fence locked in position. Measure the width of the finished cut and
adjust the pointer (C) by loosening the two screws (E) and moving the pointer (C) to the same marking on the scale
as the finished cut. Tighten the two screws (E).
ADJUSTING SCALE POINTER
ADJUSTING THE CLAMPING ACTION OF THE FENCE-LOCKING HANDLE
With the fence-locking handle (A) in the down position (Fig. 15), the fence assembly (B) should be securely clamped
to the guide tube (C).
If not:
1. lift the handle (A) and remove the fence assembly (B).
2. Slightly tighten the two adjusting screws (D) and (E) Fig. 12 using a 3mm hex wrench (not supplied). Tighten both
adjusting screws (D) and (E) Fig. 12 an equal amount.
3. Place the fence on the guide tube and check again to see if the fence assembly (B) Fig. 13 clamps securely. Adjust
further if necessary.
IMPORTANT: After adjusting the clamping action of the fence locking handle, see if the fence is parallel to the miter
gauge slot. Adjust if necessary.
Fig. 15
Fig. 16
B
C
A
E
C
DISCONNECT MACHINE FROM POWER SOURCE!
MAINTENANCE
FENCE LUBRICATION
1. Apply paste wax to the fence and the guide tube
sliding surfaces weekly.
2. Apply grease to the cam lock (A) Fig. 22, and the cam
foot (B) occasionally to prevent wear.
Fig. 22
A
B
TROUBLESHOOTING
For assistance with your machine, visit our website at www.deltamachinery.com for a list of service centers or call
the DELTA Machinery help line at 1-800-223-7278 (In Canada call 1-800-463-3582).
