Chapter 3 Interface Introduction
3-17

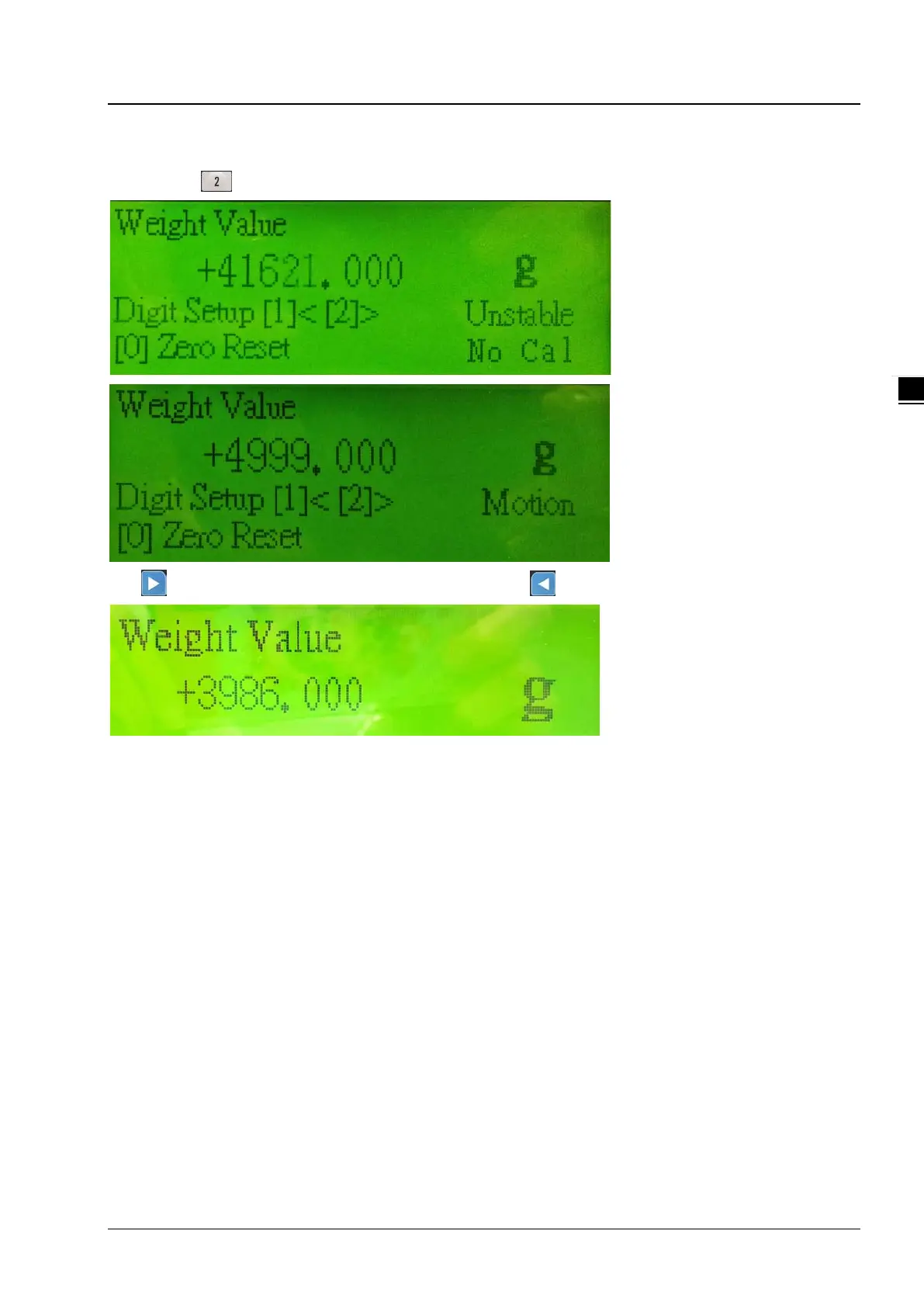

3.2.3 Load Cell Measure
Press the key to display the corresponding setting page of the Load Cell Measure.
Use
to show less information as the image shown below. Use to go back.
(1) No Calibration
If the calibration is not complete before you enter Load Cell Measure page, a warning No Cal appears in the lower
right corner, as the image shown above. When this warning appears, the weight value is not reliable. After the
calibration is complete, this warning disappears.
(2) Zero
When zero calibration is complete and no-load zero reading is stable, the Zero is shown.
(3) Unstable
When the weight value is not stable, the Unstable appears. When the weight value is stable, the Motion is shown.
(4) Max
You can set up a weight maximum limit in the Load Cell Setup page. When the weight used exceeds the maximum
limit, the Max appears.
