Delta VFD-C2000 User Manual

VFD-C2000 PROFINET Communication Card CMC-PN01
CMC-PN01 Operation Manual
21

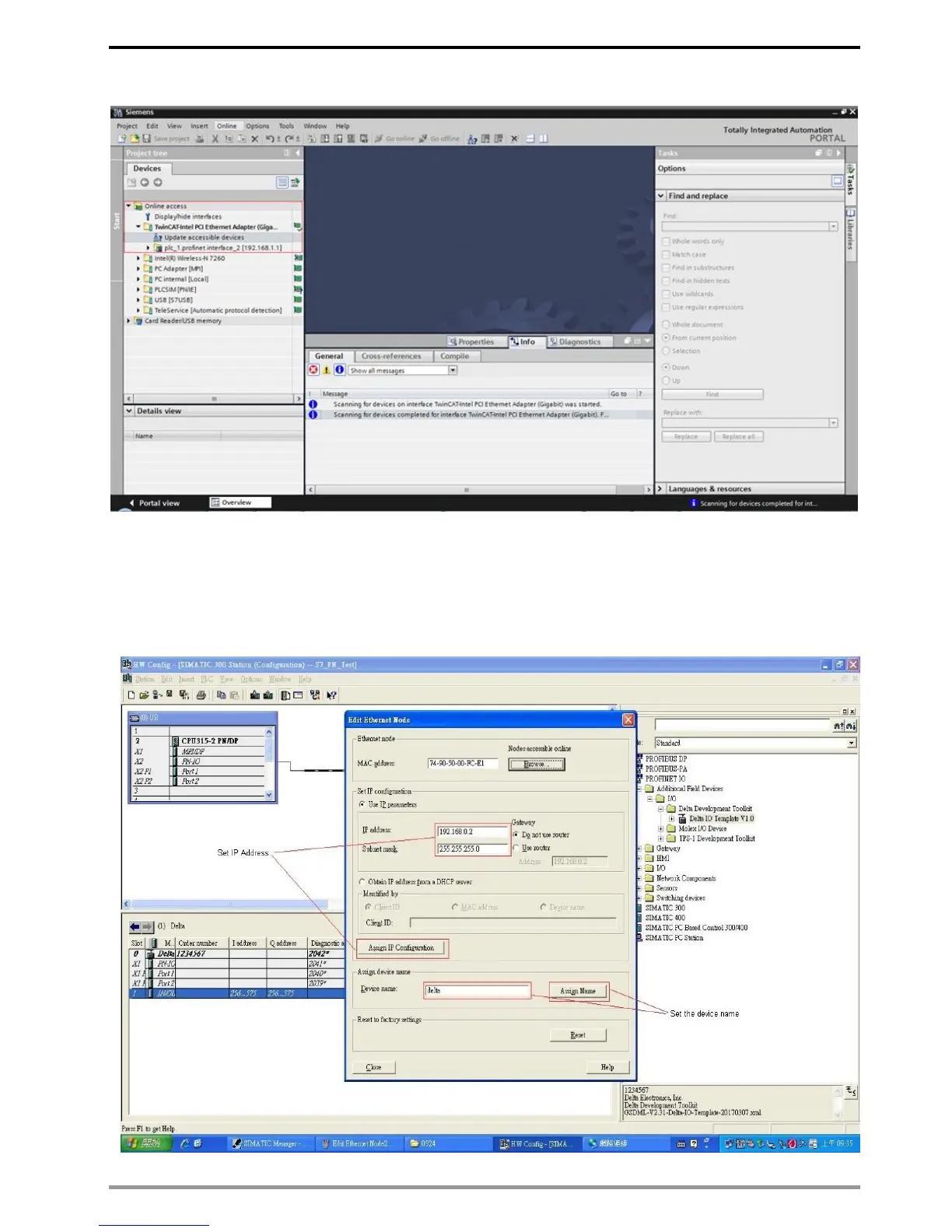

Select Online access, choose your PC network interface card, and then click Update
accessible devices continuously to search PLC.
※ When you start TIA PORTAL, do not enable wireless network because it may lead to TIA
PORTAL’s false detection. If it happens (physical interface card cannot be found), close
the wireless network connection first and then restart TIA PORTAL.
4. Modify the name of CMC-PN01. The steps are the same as those for setting PLC address.
For STEP7, set the drive name as the figure below shows.

Delta VFD-C2000 Specifications

General

Brand	Delta
Model	VFD-C2000
Category	Inverter Drive
Language	English
