Delta VFD-ED Series User Manual

Chapter 7 Option Cards | VFD-ED
7-8
2. Voltage output encoder application: Each set of input current is 5–15 mA. If input voltage uses
5V or 12V external power, connect the encoder power externally. See the PG wiring Figure 7-11
below.

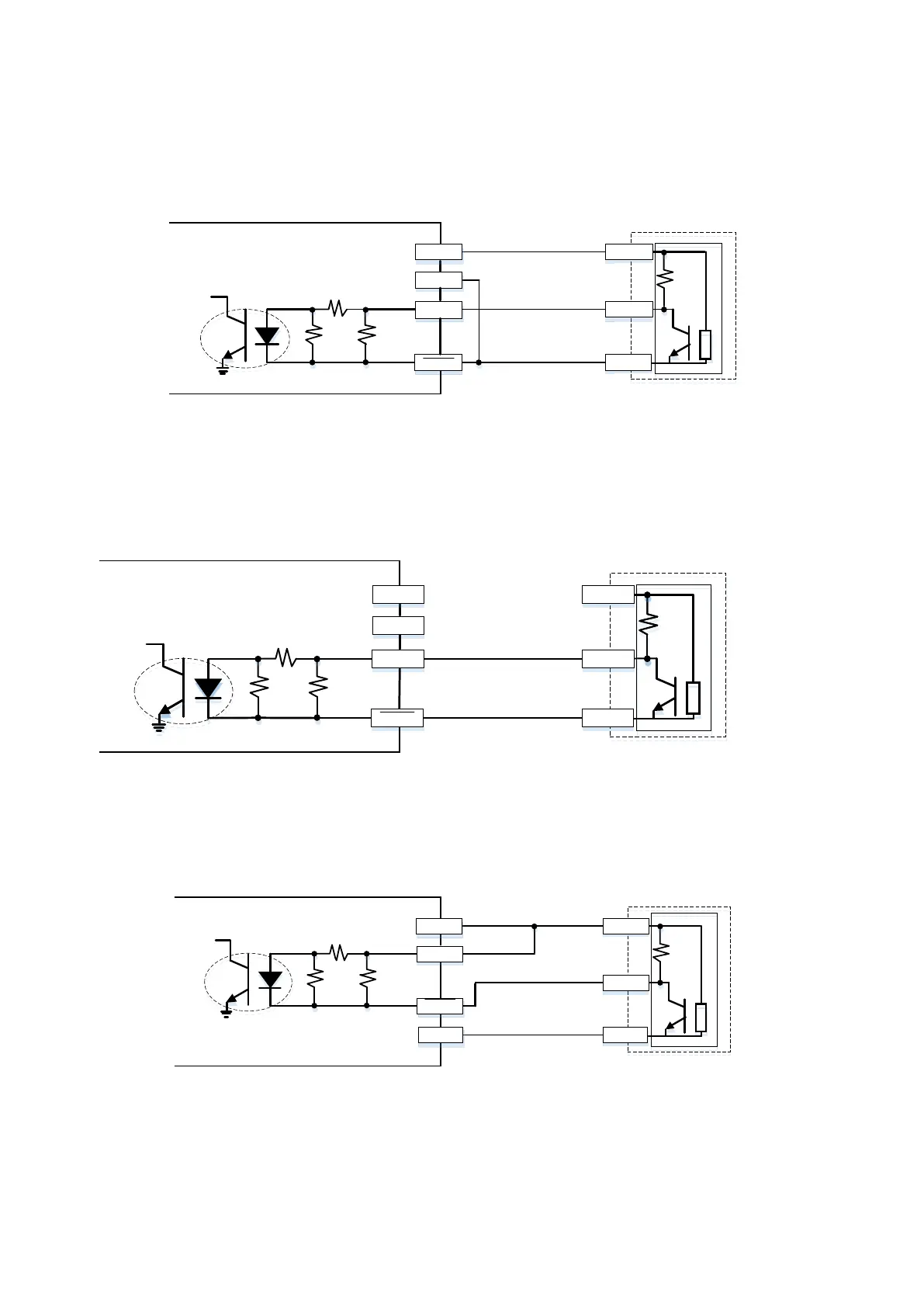

EMED-PGABD-x Voltage Output Encoder
Figure 7-10
EMED-PGABD-x Voltage Output Encoder
Figure 7-11
EMED-PGABD-x Voltage Output Encoder
Figure 7-12
ABZ/UVW
ABZ/UVW
0V
4.7kohm
VP
ABZ/UVW
VCC
GND
Internal
pull-high
resistor
ABZ/UVW
ABZ/UVW
0V
4.7kohm
VP
ABZ/UVW
VCC
GND
External
power
(5V or 12V )
Internal
p ul l
-high
resi sto r
ABZ/UVW
VCC
GND
4.7kohm
VP
ABZ/UVW
0V
ABZ/UVW
Internal
pull-high
resistor
