Delta VFD-ED Series User Manual

Chapter 7 Option Cards | VFD-ED
7-9

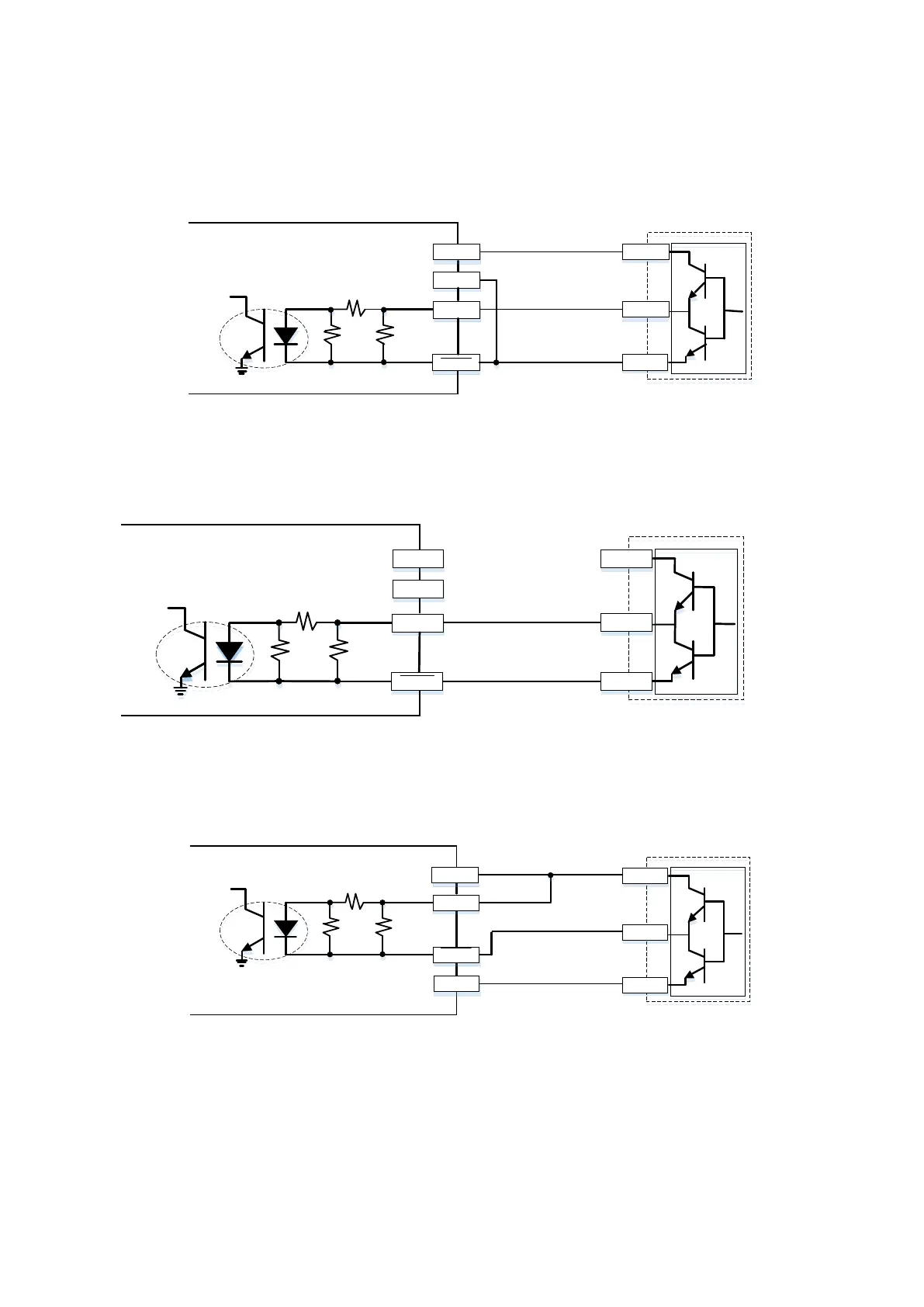

3. Push-pull output encoder application: Each set of input current is 5–15 mA. If input If input
voltage uses 5V or 12V external power, connect the encoder power externally. See the PG
wiring Figure 7-14 below.
EMED-PGABD-x Push-pull Encoder
Figure 7-13
EMED-PGABD-x Push-pull Encoder
Figure 7-14
EMED-PGABD-x Push-pull Encoder
Figure 7-15
ABZ/UVW
ABZ/UVW
0V
4.7kohm
VP
ABZ/UVW
VCC
GND
ABZ/UVW
ABZ/UVW
0V
4.7kohm
VP
ABZ/UVW
VCC
GND
External
power
(5V or 12V)
4.7kohm
VP
ABZ/UVW
ABZ/UVW
VCC
GND
0V
ABZ/UVW
