Chapter 9 Digital KeypadVFD-ED
B. Constant Setting

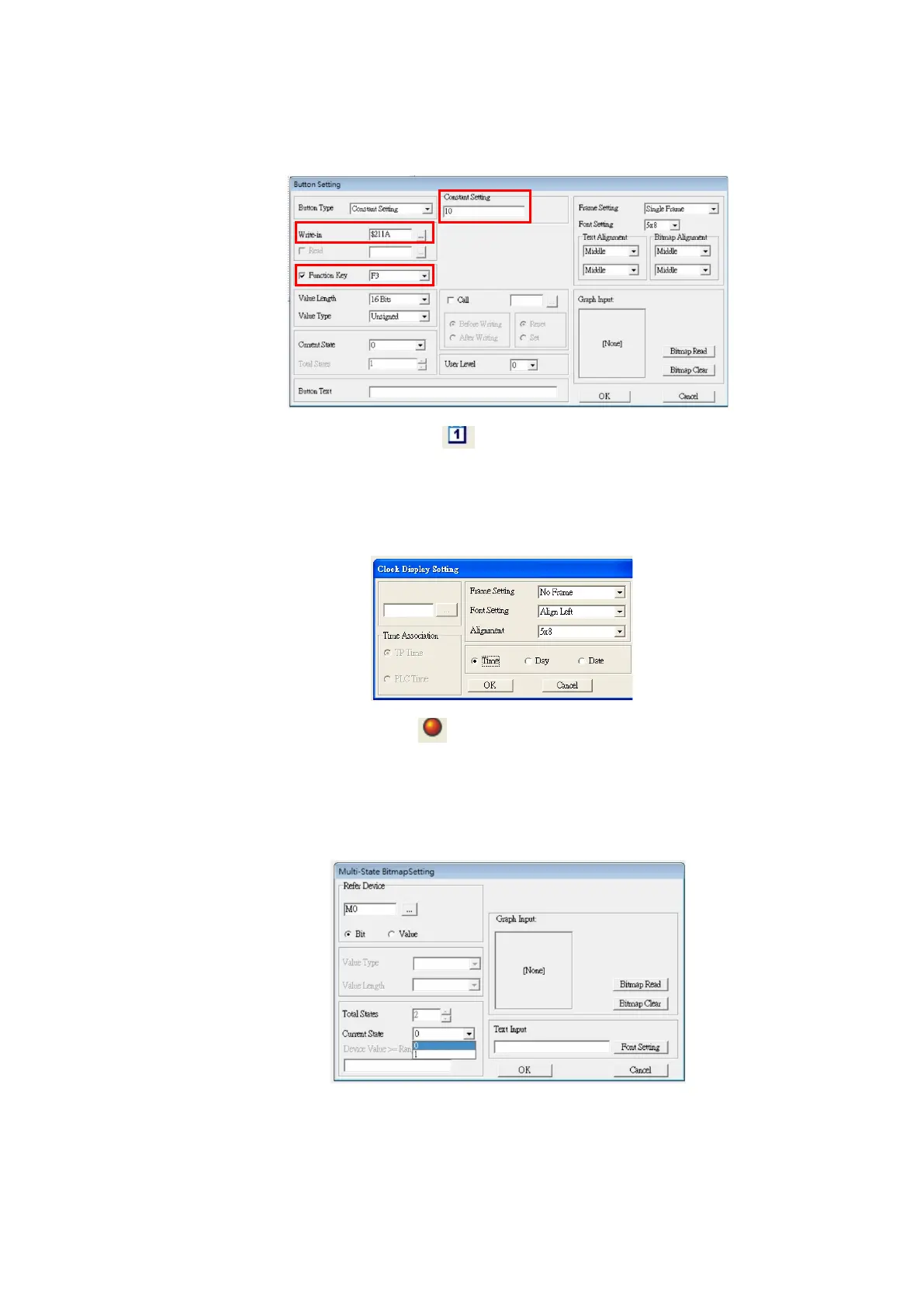

This function specifies the memory address’ values for the VFD or PLC. When you press the Function
Key, it writes a value to the memory address specified by the value for Constant Setting. You can use
this function to initialize a variable.
(7) Clock Display Setting: on the toolbar, click . You can display the time, day, or date on the keypad.
Open a new page and click once in that window to add a clock display.
Choose to display Time, Day, or Date on the keypad. To adjust time, go to Time Setup on the keypad’s
menu. You can also specify the Frame Setting, Font Setting, and Alignment.
(8) Multi-state bitmap: on the toolbar, click . Open a new page and click once in that window to add a
Multi-state bitmap. This object reads a bit’s property value from the PLC. It defines the image or text that
appears when this bit is 0 or 1. Set the initial status (Current State) to be 0 or 1 to define the displayed
image or text.
